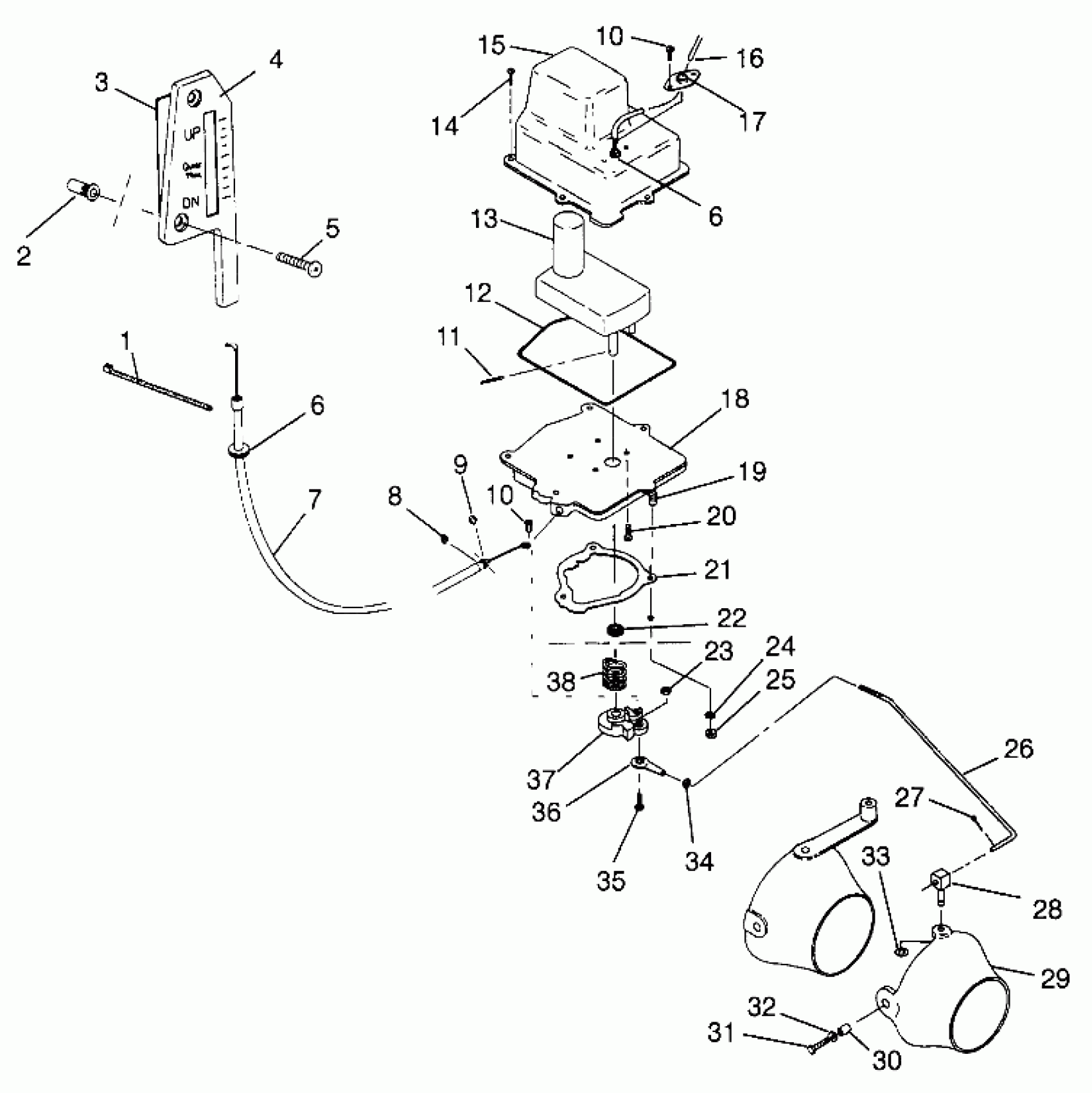

Polaris SL 700 - B974071 TRIM PACKAGE (DELUXE) SL 700 Deluxe B974072 (4940874087B006) Diagram

#

Description
Price

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

INSERT, BRASS(10)

7541932

$3.65

3

DECAL, INDICATOR

7073866

Unavailable

4

TRIM,INDIC.,WHITE

5431564-133

Unavailable

5

BOLT, SS.(10)

7512045

$4.99

6

GROMMET,TRIM INDIC.

5410778

$1.19

6

GROMMET,TRIM INDIC.

5410778

$1.19

7

CABLE,TRIM INDICATOR

7080497

Unavailable

8

RING,RETAINING,EXT.(10)

7710428

Unavailable

9

RING,RETAINING(10)

7710429

$2.54

10

SCREW(10)

7511873

Unavailable

10

SCREW(10)

7511873

Unavailable

11

PIN, DRIVE Substituted by 7661418

7661417

Unavailable

12

O RING,MTR.COVER

5410756

Unavailable

13

GEAR ASM, MOTOR

4170004

Unavailable

14

SCREW(10)

7512052

Unavailable

15

COVER,TRIM MTR.

5431551

$77.99

16

HARNESS,TRIM

2460481

Unavailable

17

GROMMET,TRIM MOTOR

5410771

Unavailable

18

BASE, MOTOR

5630448

$15.87

19

STUD,S.S.(10)

5131050

$6.99

20

SCREW(10)

7511872

$2.54

21

GASKET, MOTOR BASE

5810818

Unavailable

22

SEAL, OIL

3610042

Unavailable

23

NUT, HEX, S.S.(10)

7541931

$5.99

24

WASHER, FLAT, S.S.(10)

7555839

Unavailable

25

NUT,NYLOK,S.S.(10)

7542133

Unavailable

26

LINKAGE,THREADED

5224550

Unavailable

27

PIN, COTTER(10)

7661010

$1.19

28

SWIVEL,ROD END

5131463

Unavailable

29

NOZZLE,TRIM

5431765

Unavailable

30

Collar

5130938

Unavailable

31

BOLT, S.S.(10)

7515361

$2.19

32

WASHER,FLAT,S.S.(10)

7555874

$2.38

33

WASHER(10)

7555866

Unavailable

34

NUT (10)

1860102

Unavailable

35

BOLT, S.S.(10)

7512041

$2.54

36

ROD END, S.S.

7060154

Unavailable

37

LEVER, TRIM

5431550

$10.63

38

SPRING,TRIM,HVY.

7041469

Unavailable
