STEERING SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 and In (4940874087B001)

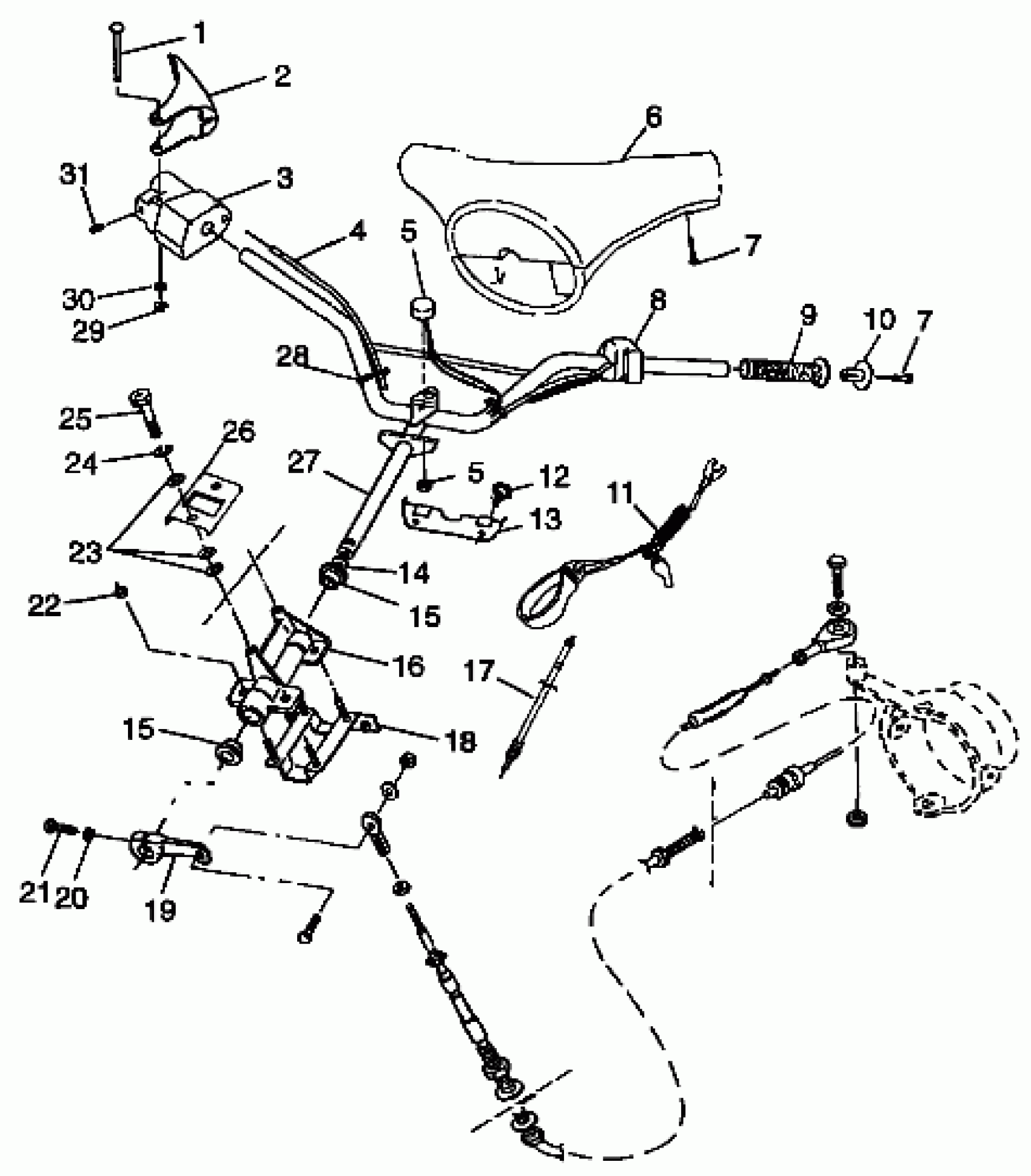

Polaris SL 700 - B974071 STEERING SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 and In (4940874087B001) Diagram
#
1
Pin, Retaining
7661628
Unavailable
2
LEVER,THROTTLE CONTROL
5431397
Unavailable
3
BLOCK,THROTTLE CONTROL
5431396
Unavailable
4
CABLE,THROTTLE (Dlx)
7080620
Unavailable
4
CABLE,THROTTLE (700)
7080690
Unavailable
5
ALARM,HI-TEMP/LOW OIL
4040048
Unavailable
5
ALARM,HI-TEMP/LOW OIL
4040048
Unavailable
6
PAD,H'BAR,PUR.WAVE (700)
5432515-214
Unavailable
6
PAD,H'BAR,TRIM,TEAL MT (Deluxe)
5432516-168
Unavailable
7
SCREW, SS.(10)
7512047
Unavailable
7
SCREW, SS.(10)
7512047
Unavailable
8
SWITCH,ST./STOP/CHOKE (700)
4110232
Unavailable
8
SWITCH,ST/SP/TR/BG/CK (Deluxe)
4110215
Unavailable
9
GRIP,H'BAR,LBLUE Substituted by 5411221-070 (700)
5411221-217
Unavailable
9
DESC NOT_AVAILABLE (Deluxe)
5411221-168
Unavailable
10
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
11
LANYARD,W/WHISTLE
7080675
Unavailable
12
BOLT,SHOULDER(10)
7515387
Unavailable
13
STOP, STEERING
5222677
Unavailable
14
BUSH.(10)
7555875
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
16
HUB,SPRT.STRG/ANODE.
5131509
Unavailable
17
CABLE,CHOKE,67.53 (Deluxe)
7080670
Unavailable
17
CABLE,CHOKE,SINGLE (700)
7080691
Unavailable
18
PLATE, BOLT
1060101
Unavailable
19
ARM,STRNG.,ANODIZED
5131441
Unavailable
20
WASHER, LOCK, S.S.(10)
7552610
Unavailable
21
BOLT, S.S.(10)
7515375
Unavailable
22
NUT, HEX, S.S.(10)
7542335
Unavailable
23
WASHER, FLAT, S.S.(10)
7555837
Unavailable
24
WASHER, LOCK(10)
7552615
$4.99
25
SCREW, S.S.(10)
7512051
Unavailable
26
PLATE,LATCH,SLT Substituted by 5243533
5211860
Unavailable
27
POST,STEERING,W/H'BAR (700)
1823175
Unavailable
27
POST,STRG,W/H'BAR,TRIM (Deluxe) (Int'l)
1860119
Unavailable
28
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
30
WASHER, FLAT, S.S.(10)
7555840
$3.35
31
SCREW, SET, S.S.(10)
7515115
Unavailable
