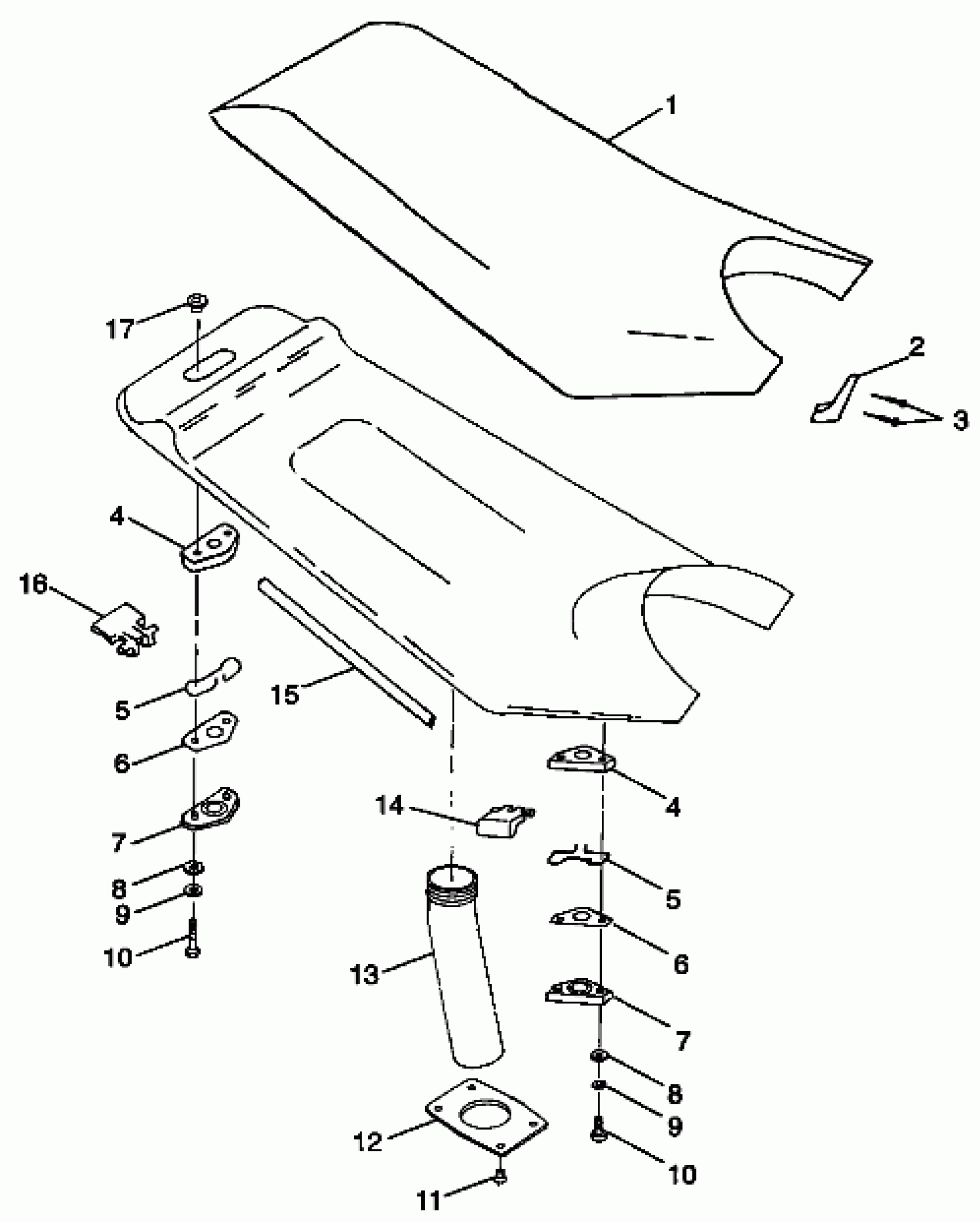

Polaris SL 700 - B974071 SEAT SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 and Intl. (4940874087A013) Diagram

#

Description

Price

1

SEAT ASM,W/RIB,LSR.BLUE (700) (Incl. 1, 10-16)

2682197-217

Unavailable

1

SEAT ASM,W/RIB,TL.MET (Deluxe) (Incl. 1, 10-16)

2682197-168

Unavailable

1

COVER,SEAT,TEAL MT. (Deluxe)

2681726-168

Unavailable

1

COVER,SEAT,LSR.BLUE (700)

2681726-217

Unavailable

2

SHIELD,LH,SEAT,TEAL MT. (Deluxe)

5432124-168

Unavailable

2

SHIELD,LH,SEAT,LSR.BLUE (700)

5432124-217

Unavailable

2

SHIELD,RH,SEAT,TEAL MT. (Deluxe)

5432125-168

Unavailable

2

SHIELD,RH,SEAT,LSR.BLUE (700)

5432125-217

Unavailable

3

SCREW(10)

7512089

Unavailable

4

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

4

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

5

SPRING,SEATBASE LATCH

7042036

Unavailable

5

SPRING,SEATBASE LATCH

7042036

Unavailable

6

PLATE,SEATBASE LATCH

5211314

Unavailable

6

PLATE,SEATBASE LATCH

5211314

Unavailable

7

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

7

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

8

WASHER, FLAT, S.S.(10)

7555839

Unavailable

8

WASHER, FLAT, S.S.(10)

7555839

Unavailable

9

WASHER, LOCK, S.S.(10)

7555838

Unavailable

9

WASHER, LOCK, S.S.(10)

7555838

Unavailable

10

BOLT, SS.(10)

7515123

Unavailable

10

BOLT, SS.(10)

7515123

Unavailable

11

RIVET(50)

7621479

$1.99

12

PLATE, RETAINER

5211347

Unavailable

13

DUCT, AIR OUTLET

5431369

Unavailable

14

HANDLE,SEATBASE,SIDE

5432622

Unavailable

15

SEAL, SEAT

5521371

Unavailable

16

HANDLE, SEAT

5431358

Unavailable

17

NUT, TEE(10)

7542137

Unavailable
