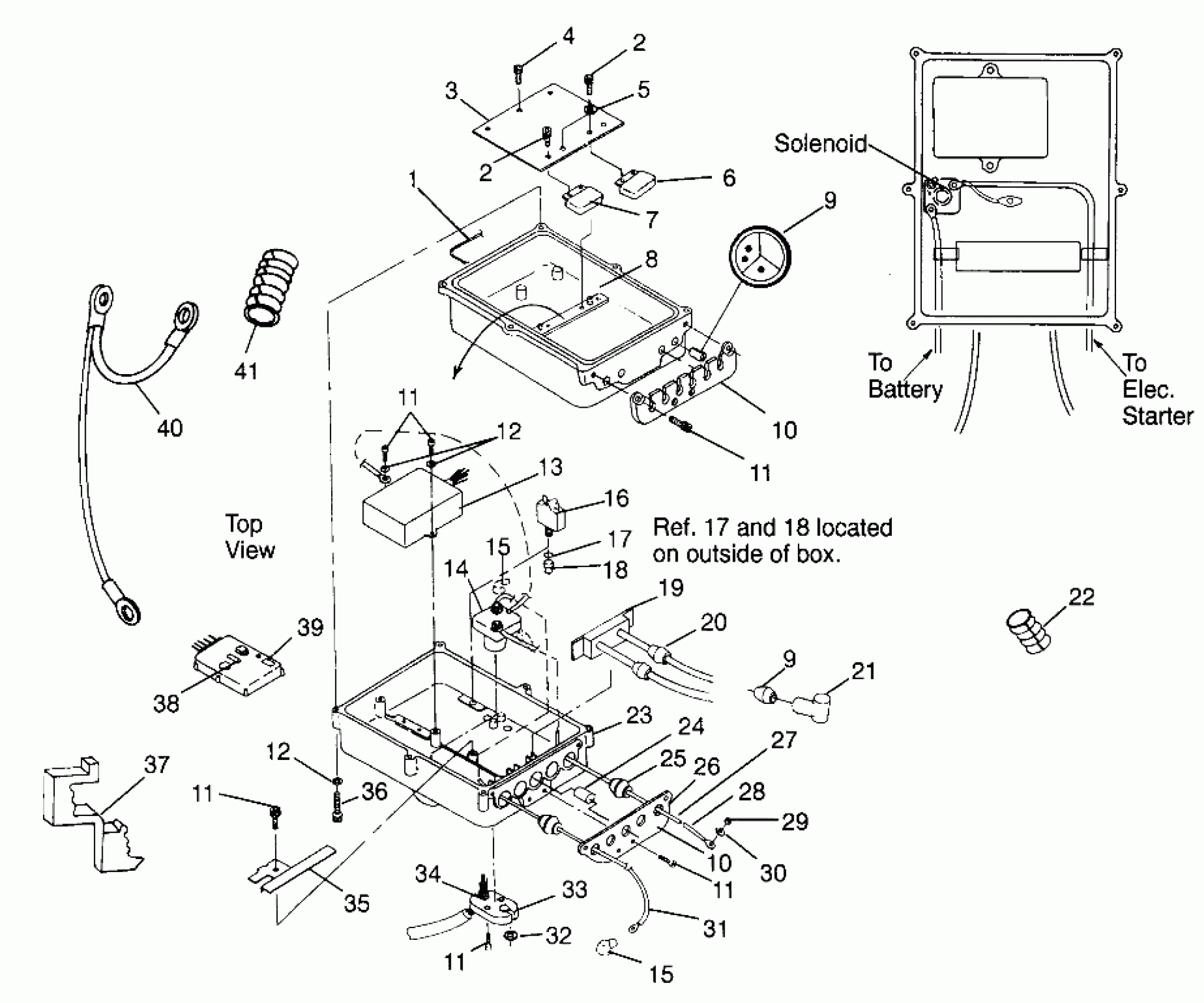

Polaris SL 700 - B974071 ELECTRICAL BOX SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 (4940874087B013) Diagram

#

Description
Price

1

O-RING,(ELEC.BOX)

5410912

Unavailable

2

SCREW,S.S.(10)

7512072

$0.40

2

SCREW,S.S.(10)

7512072

$0.40

3

BOARD,TERMINAL,W/FUSE

4040069

$15.56

4

BOLT, S.S.(10)

7512042

Unavailable

5

WASHER, LOCK(10)

7552615

Unavailable

6

SWITCH-RECTIFIER,LR-52

4060110

Unavailable

7

REGULATOR/RECT.,LR-21

4060108

Unavailable

8

BOX,BOTTOM,ELEC.

5131256

Unavailable

9

O-RING,(10)

5410817

Unavailable

9

GROMMET,SECTION,NO HOLE

5410850

$2.14

9

O-RING,(10)

5410817

Unavailable

9

GROMMET,SECTION,NO HOLE

5410850

$2.14

10

PLATE,6-HOLE,CAST

5630497

Unavailable

10

PLATE,6-HOLE,CAST

5630497

Unavailable

11

BOLT, S.S.(10)

7515118

Unavailable

11

BOLT, S.S.(10)

7515118

Unavailable

11

BOLT, S.S.(10)

7515118

Unavailable

11

BOLT, S.S.(10)

7515118

Unavailable

11

BOLT, S.S.(10)

7515118

Unavailable

12

WASHER(10)

7555836

$3.99

12

WASHER(10)

7555836

$3.99

13

Controller, Ignition (See Pg. C11, Ref. 12)

----

Unavailable

14

SWITCH, MAGNETIC

3240204

Unavailable

15

INSULATOR-CABLE

5410346

$7.73

15

INSULATOR-CABLE

5410346

$7.73

16

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

17

O-RING

5410725

$1.03

18

BOOT,THREADED,RED

7080461

$13.99

19

Ignition Coil Twin (See Pg. A41 Ref. 13)

----

Unavailable

20

GROMMET, COIL

5410677

Unavailable

21

Cap, Spark Plug (See Pg. A41, Ref. 14)

----

Unavailable

22

CONDUIT,FLEX,1.250ID Substituted by 5521287-132 (700)

5521287-63

Unavailable

23

TOP, ELEC.BOX

5131174

$73.81

24

GROMMET,(.910 DIA.)

5411025

Unavailable

25

GROMMET, 16 GA.(10)

5410678

$2.14

26

PLATE, 5-HOLE

5630416

Unavailable

27

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

28

CABLE,RED,SOL./START.

4010081

Unavailable

29

NUT, 6 MM.,S.S.(10)

7546705

$4.76

30

WASHER, LOCK(10)

7552613

Unavailable

31

CABLE,RED,BATT/SOL.

4010082

Unavailable

32

O-RING(10)

5410818

$0.79

33

PLATE, 2-HOLE

5630415

$12.30

34

GROMMET,SECTION,2-HOLE

5410852

Unavailable

35

BRKT,COIL RETAINER

5241182

$19.68

36

BOLT(10)

7515119

Unavailable

37

T-CLIP(10)

7080471

$3.57

38

DECAL,WARN,HI.VOLT.

7073713

Unavailable

39

DECAL,ELECT.BOX RESET

7073734

Unavailable

40

HARNESS,GND-CONTROL BOX

2460581

Unavailable

41

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable
