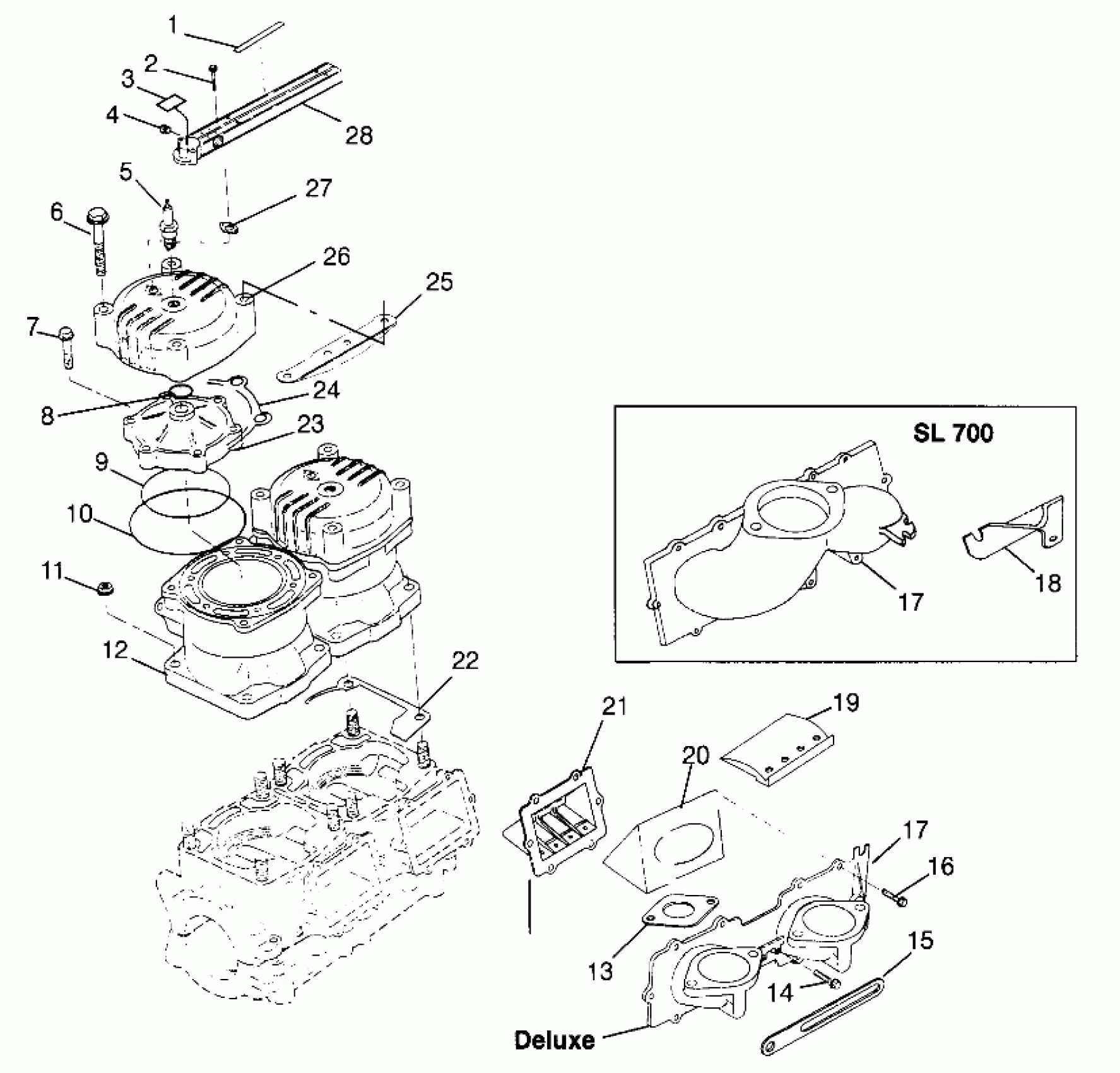

Polaris SL 700 - B974071 CYLINDER & MANIFOLD SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B97 (4940874087C005) Diagram

#

Description
Price

-

KIT,GASKET,TOP END (Incl. 8-10, 22)

2200673

Unavailable

-

KIT,GASKET SET,COMP. (Incl. 8-10, 22, 27)

2200680

Unavailable

1

Decal, Warning

7075383

Unavailable

2

BOLT(10)

7516806

Unavailable

3

DECAL,SPARKPLUG REC.

7077026

$2.95

4

PLUG,PIPE(10)

7051527

Unavailable

5

SPARKPLUG, BPR-7ES(10) (Deluxe)

3070173

Unavailable

5

SPARKPLUG, BPR-8ES(10) (700)

3070174

Unavailable

6

BOLT(10)

7516722

Unavailable

7

SCREW,(10) Substituted by 7517352

7517251

Unavailable

8

O-RING(10)

5410917

$1.49

9

O-RING

5410932

$20.22

10

O-Ring

5410931

Unavailable

11

NUT(10)

7547013

$1.99

12

CYLINDER,BIGBORE,81MM,PWC

5131081

Unavailable

13

GASKET,CARB.

5830043

Unavailable

14

BOLT(10) (Deluxe)

7516814

Unavailable

14

SCREW (700)

7517306

Unavailable

15

RETAINER,SS.

7080654

$18.32

16

BOLT(10)

7516807

Unavailable

17

MANIFOLD,INTAKE (Deluxe)

5630529

Unavailable

17

MANIFOLD,INTAKE,(TWIN),SC (700)

5630656

Unavailable

17

MANIFOLD,INTAKE (Deluxe)

5630529

Unavailable

17

MANIFOLD,INTAKE,(TWIN),SC (700)

5630656

Unavailable

18

BRKT,OILPUMP CABLE

5241134

Unavailable

19

STUFFER

5411251

Unavailable

20

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

21

REEDVALVE ASM. Substituted by 1201743 (700)

1201689

Unavailable

21

REEDVALVE ASM. Substituted by 1201689 (Deluxe)

1201592

Unavailable

22

GASKET,CYL.BASE

5830123

Unavailable

23

HEAD,CYL,81MM DIA (Deluxe)

3022025

Unavailable

23

HEAD,CYL,81MM,PWC (700)

3022050

Unavailable

24

RING,HEAD,81MM-SS

5241944

Unavailable

25

BRKT,HEAD,TWIN,FIRE RED (Fire Red)

5241768-093

Unavailable

26

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

27

GASKET,WATER MANIF.

5830061

Unavailable

28

MANIFOLD,OUTLET,FIRE RED Substituted by 5630826-093

5630622-093

Unavailable
