CRANKSHAFT & PISTON SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B97 (4940874087C010)

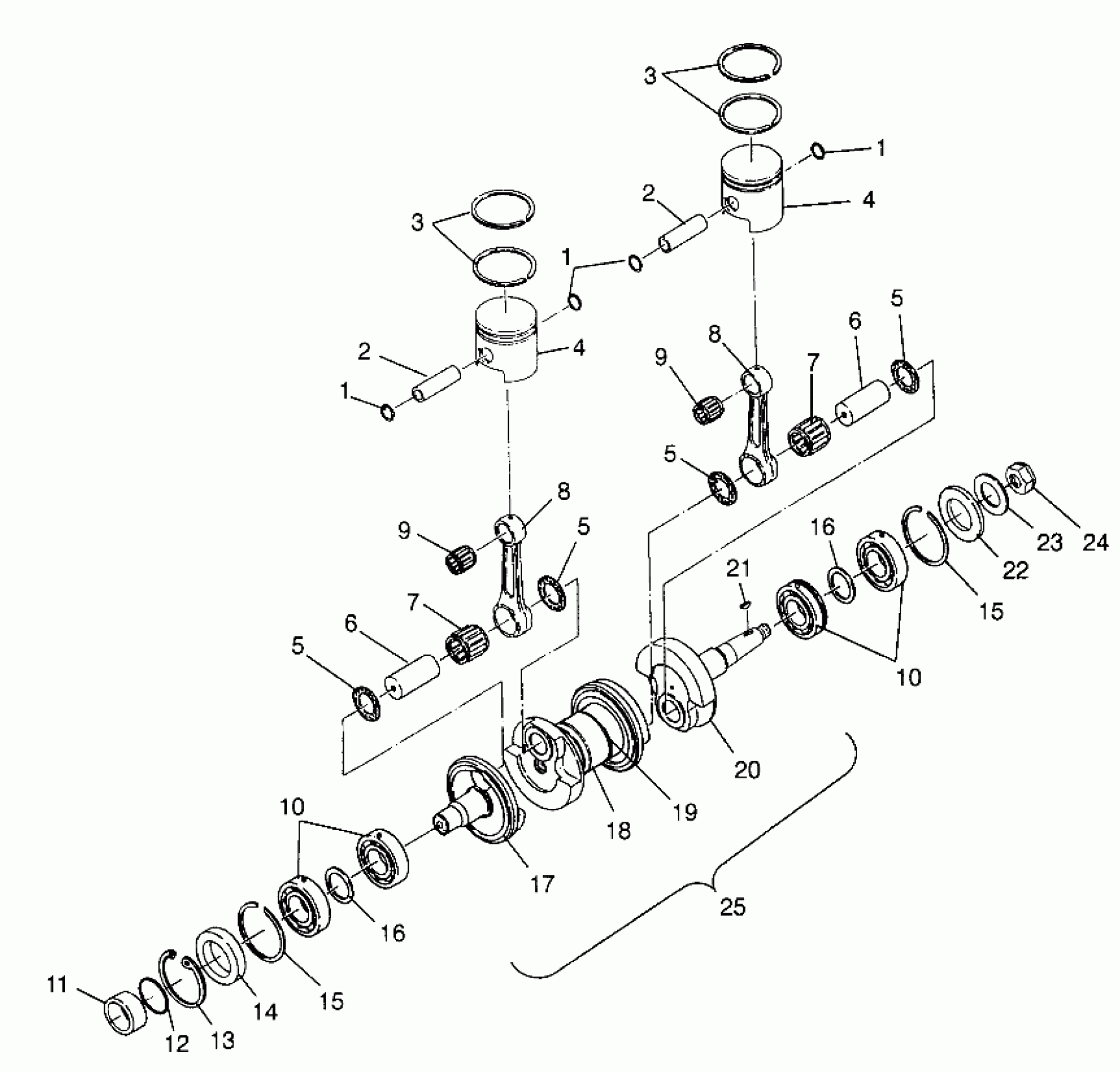

Polaris SL 700 - B974071 CRANKSHAFT & PISTON SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B97 (4940874087C010) Diagram
#
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
3
KIT,PISTONRINGS,STD,81MM. Substituted by 2200902 (2 Rings)
2200671
Unavailable
3
KIT,PISTONRINGS(.50 O/S)81MM. Substituted by 2200904
2200678
Unavailable
3
KIT,PISTONRINGS(.25 O/S)81MM. Substituted by 2200903
2200679
Unavailable
3
KIT,PISTONRINGS,STD,81MM. Substituted by 2200902 (2 Rings)
2200671
Unavailable
3
KIT,PISTONRINGS(.50 O/S)81MM. Substituted by 2200904
2200678
Unavailable
3
KIT,PISTONRINGS(.25 O/S)81MM. Substituted by 2200903
2200679
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1, 2, 3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1, 2, 3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1, 2, 3)
2200883
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1, 2, 3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1, 2, 3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1, 2, 3)
2200883
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
6
Pin, Crankshaft (See Ref. 8)
-------
Unavailable
6
Pin, Crankshaft (See Ref. 8)
-------
Unavailable
7
Bearing, Connecting Rod (See Ref. 8)
-------
Unavailable
7
Bearing, Connecting Rod (See Ref. 8)
-------
Unavailable
8
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5, 6, 7, 8)
2200674
Unavailable
8
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5, 6, 7, 8)
2200674
Unavailable
9
BEARING,CONNECT.ROD
3584001
Unavailable
9
BEARING,CONNECT.ROD
3584001
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
11
COLLAR,CRANKSHAFT
5131195
Unavailable
12
O RING,(10)
5410613
$1.99
13
RING,RETAINING(10)
7710435
Unavailable
14
SEAL Substituted by 5411524
5410913
Unavailable
15
RING,RETAINING,(10)
7710441
Unavailable
15
RING,RETAINING,(10)
7710441
Unavailable
16
BUSHING(10)
7555905
$3.99
16
BUSHING(10)
7555905
$3.99
17
CRANKWEB,PTO,BIGBORE
5131083
Unavailable
18
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
19
Labyrinth
5131086
Unavailable
20
CRANKWEB,MAG.
5131085
Unavailable
21
KEY,WOODRUFF(10)
7721117
$24.99
22
Seal
3610044
$24.27
23
Washer (See Pg. A41, Ref. 10)
-------
Unavailable
24
Nut, Pump Drive (See Pg. A41, Ref. 11)
-------
Unavailable
25
CRANKSHAFT ASM,2 CYL. Substituted by 2201243 (Incl. 5-8,17-20)
1201558
Unavailable
