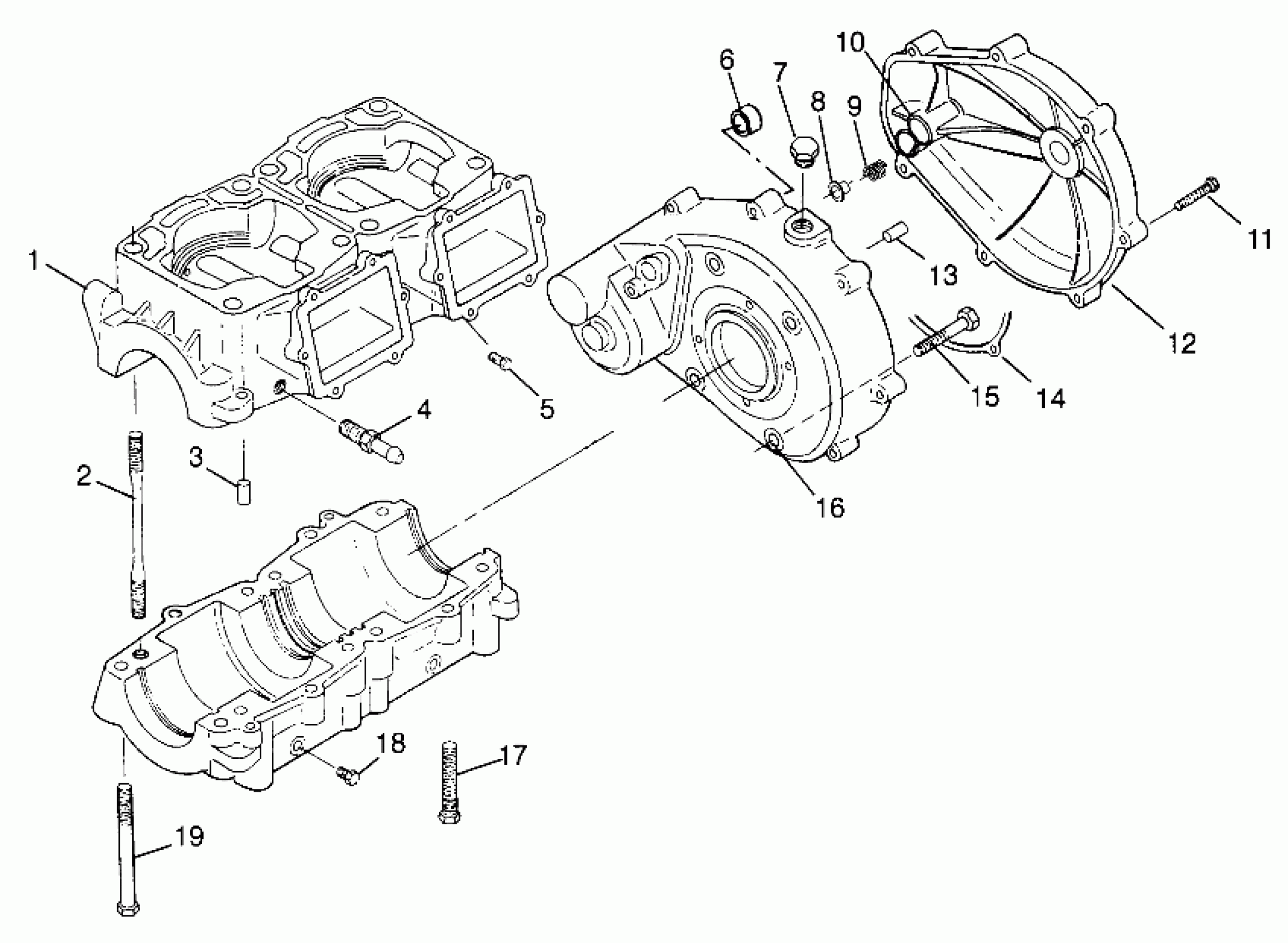

Polaris SL 700 - B974071 CRANKCASE SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 and I (4940874087C004) Diagram

#

Description
Price

1

KIT,CRANKCASE ASM,TWIN Substituted by 2201210 (Incl. 1-5, 17-19)

2200676

Unavailable

2

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

4

Fitting

7052135

$9.52

5

PLUG, BRASS(10)

7051521

$1.83

6

HOUSING,STARTER Substituted by 2201613

1201564

$135.30

7

PLUG,PIPE(10)

7051526

$1.67

8

BUSHING,PLASTIC

3574214

$5.00

9

Spring

7041457

Unavailable

10

Bushing

3569806

Unavailable

11

BOLT(10)

7516806

Unavailable

12

COVER ASM,IGN.HSG. (Incl. 10)

1201563

$90.48

13

Pin, Dowel

7663002

$4.76

14

GASKET,FLYWHEEL CVR. Substituted by 5811550

5811145

Unavailable

15

BOLT(10)

7516723

Unavailable

16

Bushing

3569805

$3.17

17

BOLT, S.S,(10)

7516725

Unavailable

18

PLUG Substituted by 7052311

7051529

Unavailable

19

BOLT, S.S

7516913

Unavailable
