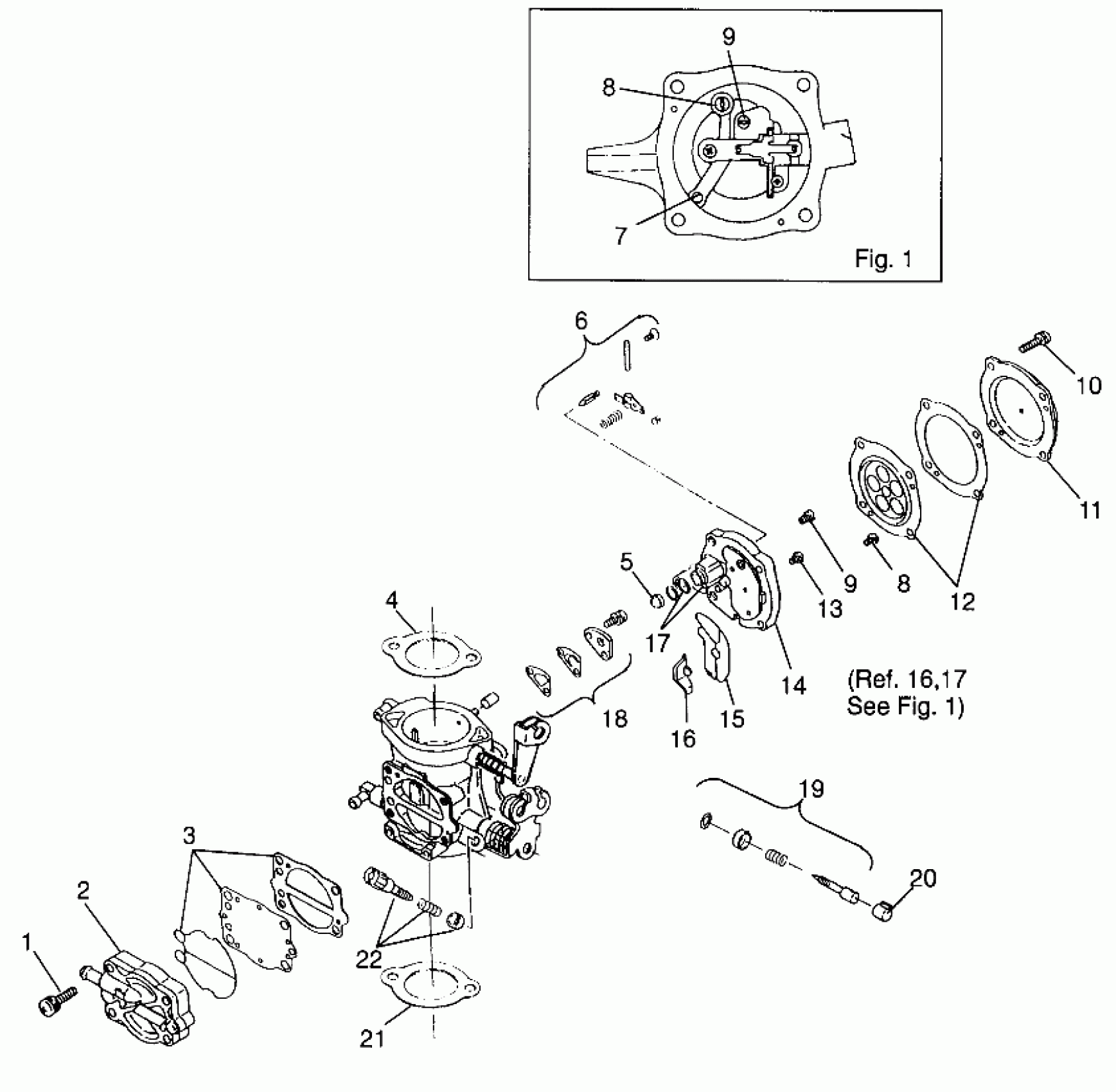

Polaris SL 700 - B974071 CARBURETOR (SL 700) SL 700 B974071 and Intl. SL 700 I974071 (4940874087C008) Diagram

#

Description

Price

-

KIT,CARB.REBUILD,PWC (Incl. 8, 15, 21)

2200910

Unavailable

-

CARB.ASM,42MM,CDK

1253153

Unavailable

1

SCREW, FUELPUMP

3050136

Unavailable

2

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

3

KIT,GASKET(FUELPUMP)

2200686

Unavailable

4

GASKET,CARB.,UPPER

5830062

Unavailable

5

SCREEN,FUELSTRAINER

3050144

Unavailable

6

KIT,NDLE VLVE,97DOM,NOT SL 1050

2200733

Unavailable

7

JET-MAIN,120 KEIHIN

3050117

Unavailable

8

JET-MAIN,158 KEIHIN

3050193

Unavailable

8

JET-MAIN,158 KEIHIN

3050193

Unavailable

9

JET-PILOT,78 KEIHIN

3050133

Unavailable

9

JET-PILOT,78 KEIHIN

3050133

Unavailable

10

SCREW,JET BLOCK COVER

3050135

Unavailable

11

COVER,JET BLOCK

3050139

Unavailable

12

KIT,DIAPHRAGM-JET BLOCK

2200730

Unavailable

13

Screw, Jet Block

3050137

Unavailable

14

BLOCK,JET,KEIHIN

3050204

Unavailable

15

O-Ring, Jet Block

3050147

Unavailable

16

Collar

3050138

Unavailable

17

O-RING,(VALVE SEAT)

3050148

Unavailable

18

KIT,CHECKVALVE,MAIN(KEIHIN)

2200688

Unavailable

19

KIT,IDLESCREW,(KEIHIN)

2200689

Unavailable

20

Cap, Limiter

3050140

Unavailable

21

GASKET,CARB.

5830043

Unavailable

22

KIT,IDLESTOP SCREW

2200731

Unavailable
