CARBURETOR (DELUXE) SL 700 Deluxe B974072 (4940874087C006)

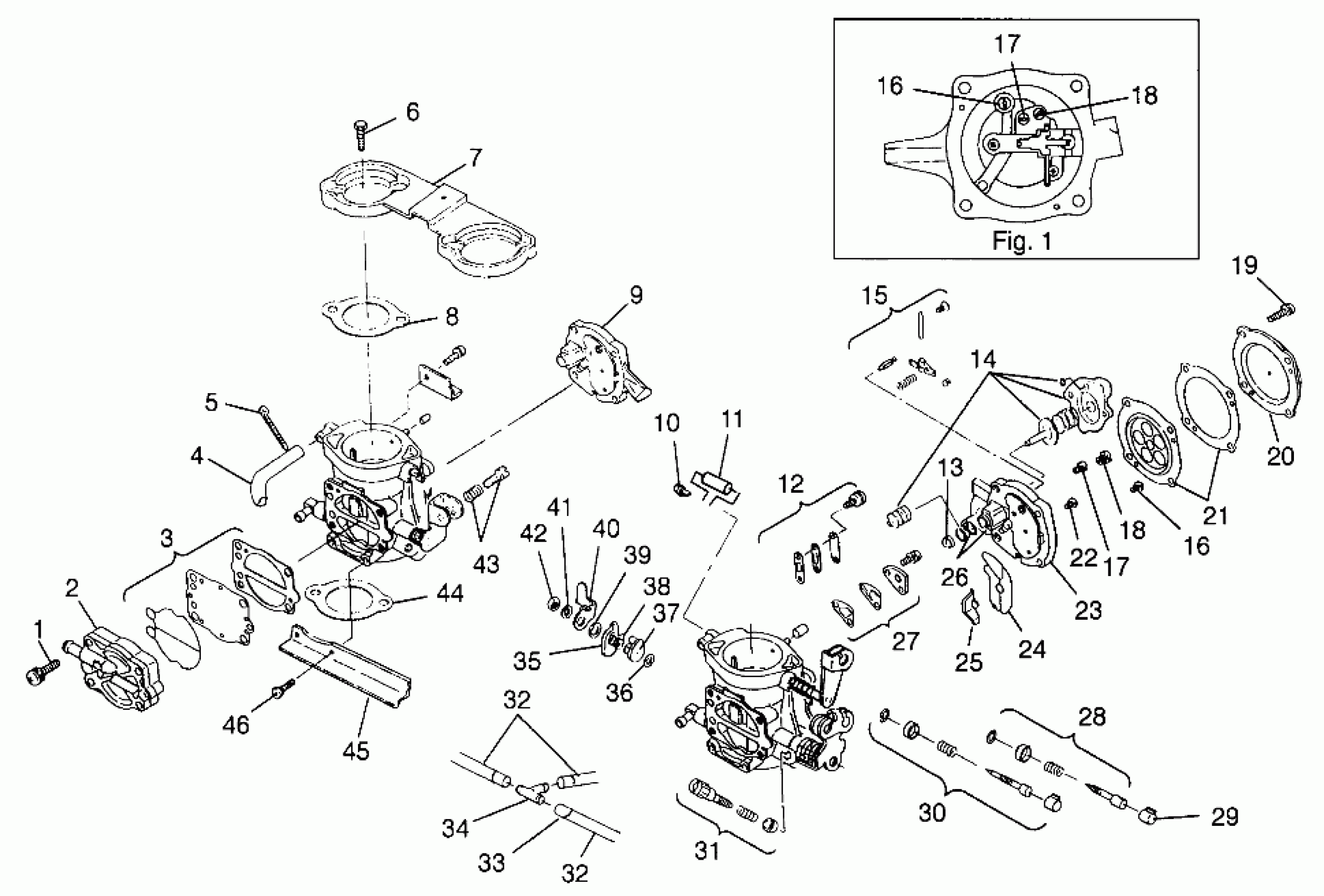

Polaris SL 700 - B974071 CARBURETOR (DELUXE) SL 700 Deluxe B974072 (4940874087C006) Diagram
#
-
KIT,CARB.REBUILD,PWC (Incl. 8, 15, 21, 44)
2200910
Unavailable
-
CARB.ASM,2 CYL.
1253134
Unavailable
1
SCREW, FUELPUMP
3050136
Unavailable
2
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
3
KIT,GASKET(FUELPUMP)
2200686
Unavailable
4
Hose, Fuel
3050143
Unavailable
5
CLAMP, HOSE, S.S.(10)
7080476
$6.39
6
BOLT(10)
7516812
Unavailable
7
BASE,AIRBOX
5630539
Unavailable
8
GASKET,CARB.,UPPER
5830062
Unavailable
9
JET,R.BLOCK COMP (Rear)
3050146
Unavailable
10
JOINT,CONNECTING
3050156
Unavailable
11
TUBE,RUBBER
3050157
Unavailable
12
KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)
2200685
Unavailable
13
SCREEN,FUELSTRAINER
3050144
Unavailable
14
KIT,ACCEL.PUMP
2200732
Unavailable
15
KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)
2200733
Unavailable
16
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
16
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
17
JET-PILOT,55 KEIHIN
3050124
Unavailable
17
JET-PILOT,55 KEIHIN
3050124
Unavailable
18
JET-PILOT,70 KEIHIN
3050130
Unavailable
18
JET-PILOT,70 KEIHIN
3050130
Unavailable
19
SCREW,JET BLOCK COVER
3050135
Unavailable
20
COVER,JET BLOCK
3050139
Unavailable
21
KIT,DIAPHRAGM-JET BLOCK (Per Carb)
2200730
Unavailable
22
Screw, Jet Block
3050137
Unavailable
23
JET,FR.BLOCK COMP. (Front)
3050145
Unavailable
24
O-Ring, Jet Block
3050147
Unavailable
25
Collar
3050138
Unavailable
26
O-RING,(VALVE SEAT)
3050148
Unavailable
27
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
28
KIT,IDLESCREW,(KEIHIN) (1 Per Carb)
2200689
Unavailable
29
Cap, Limiter
3050140
Unavailable
30
KIT,MAINMIX.SCREW(KEIHIN) (1 Per Carb)
2200690
Unavailable
31
KIT,IDLESTOP SCREW
2200731
Unavailable
32
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
32
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
FITTING, T
3050141
$9.59
35
CAM, ACCEL.PUMP Substituted by 2200910
3050151
Unavailable
36
E-Clip
3050158
Unavailable
37
COLLAR
3050149
Unavailable
38
SPRING, TORSION
3050150
Unavailable
39
WASHER
3050152
Unavailable
40
LEVER,SYNCHRONIZING
3050153
Unavailable
41
Washer, Lock
3050154
Unavailable
42
NUT,THROTTLE SHAFT
3050155
Unavailable
43
KIT,SYNCH.SCREW
2200734
Unavailable
44
GASKET,CARB.
5830043
Unavailable
45
PLATE,CONNECTING
3050160
Unavailable
46
SCREW,CONNECT.PLATE
3050159
Unavailable
