TRIM PACKAGE SL 700 B964066 and Intl. SL 700 I964066 (4935633563B004)

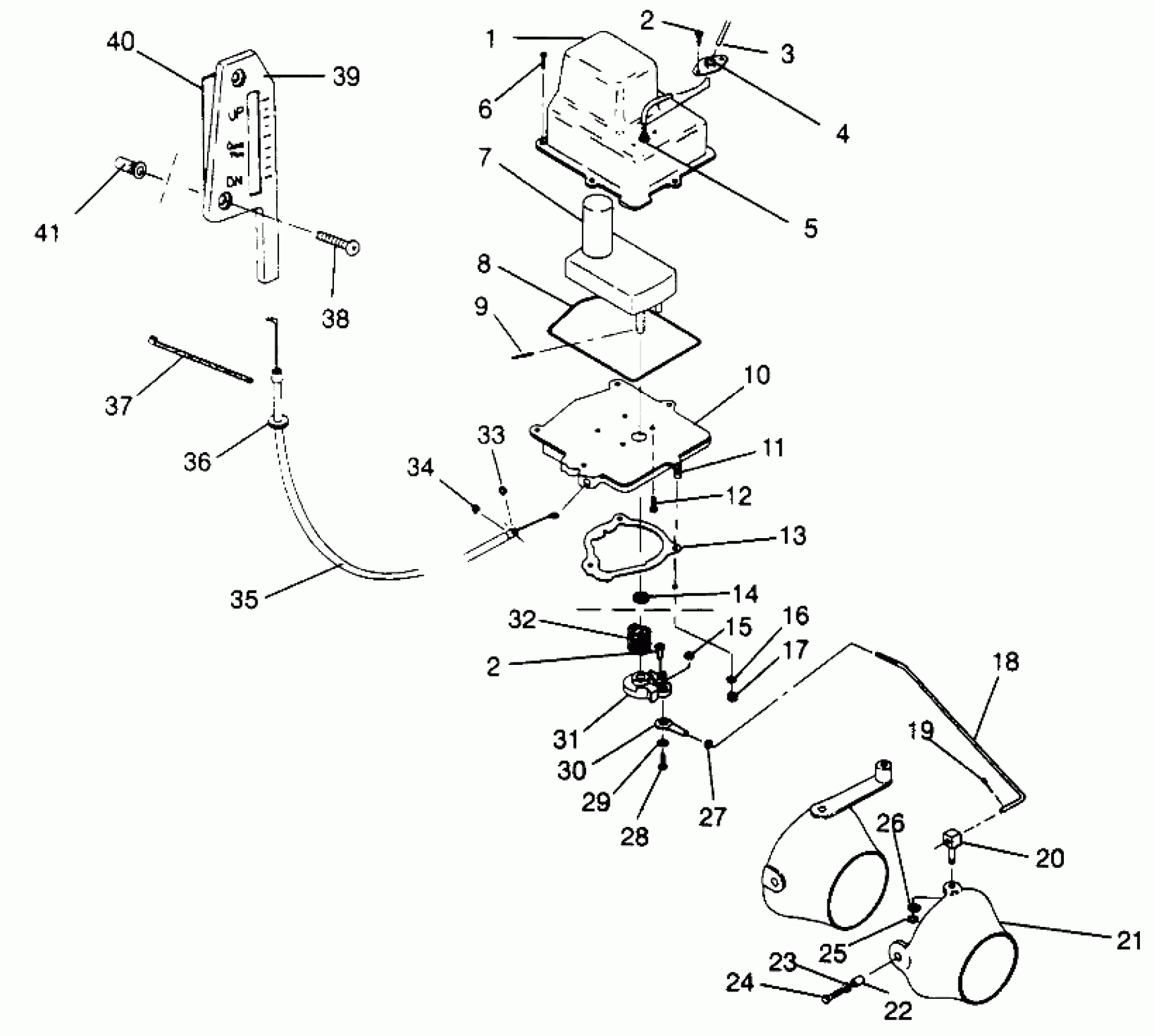

Polaris SL 700 - B964066 TRIM PACKAGE SL 700 B964066 and Intl. SL 700 I964066 (4935633563B004) Diagram
#
1
COVER,TRIM MTR.
5431551
Unavailable
2
SCREW(10)
7511873
Unavailable
2
SCREW(10)
7511873
Unavailable
3
HARNESS,TRIM
2460481
Unavailable
4
GROMMET,TRIM MOTOR
5410771
Unavailable
5
GROMMET,TRIM INDIC.
5410778
Unavailable
6
SCREW(10)
7512052
Unavailable
7
GEAR ASM, MOTOR
4170004
Unavailable
8
O RING,MTR.COVER
5410756
Unavailable
9
PIN, DRIVE Substituted by 7661418
7661417
Unavailable
10
BASE, MOTOR
5630448
Unavailable
11
STUD,S.S.(10)
5131050
Unavailable
12
SCREW(10)
7511872
Unavailable
13
GASKET, MOTOR BASE
5810818
Unavailable
14
SEAL, OIL
3610042
Unavailable
15
NUT, HEX, S.S.(10)
7541931
$4.79
16
WASHER, FLAT, S.S.(10)
7555839
Unavailable
17
NUT,NYLOK,S.S.(10)
7542133
Unavailable
18
LINKAGE,THREADED
5224550
Unavailable
19
PIN, COTTER(10)
7661010
$1.49
20
SWIVEL, ROD END Substituted by 5131463
5130939
Unavailable
21
NOZZLE,TRIM
5431765
Unavailable
22
Collar
5130938
Unavailable
23
WASHER,FLAT,S.S.(10)
7555874
$2.39
24
BOLT, S.S.(10)
7515361
Unavailable
25
RING-E,RET.(10)
7710427
Unavailable
26
WASHER(10)
7555866
Unavailable
27
NUT (10)
1860102
Unavailable
28
BOLT, S.S.(10)
7512041
Unavailable
29
WASHER, FLAT, S.S.(10)
7555837
Unavailable
30
ROD END, S.S.
7060154
Unavailable
31
LEVER, TRIM
5431550
Unavailable
32
SPRING,TRIM,HVY.
7041469
Unavailable
33
RING,RETAINING(10)
7710429
$2.54
34
RING,RETAINING,EXT.(10)
7710428
Unavailable
35
CABLE,TRIM INDICATOR
7080497
Unavailable
36
GROMMET,TRIM INDIC.
5410778
Unavailable
37
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
38
BOLT, SS.(10)
7512045
$4.99
39
TRIM,INDIC.,WHITE
5431564-133
Unavailable
40
DECAL, INDICATOR
7073866
Unavailable
41
INSERT, BRASS(10)
7541932
$3.67
