STEERING SL 700 B964066 and Intl. SL 700 I964066 (4935633563A013)

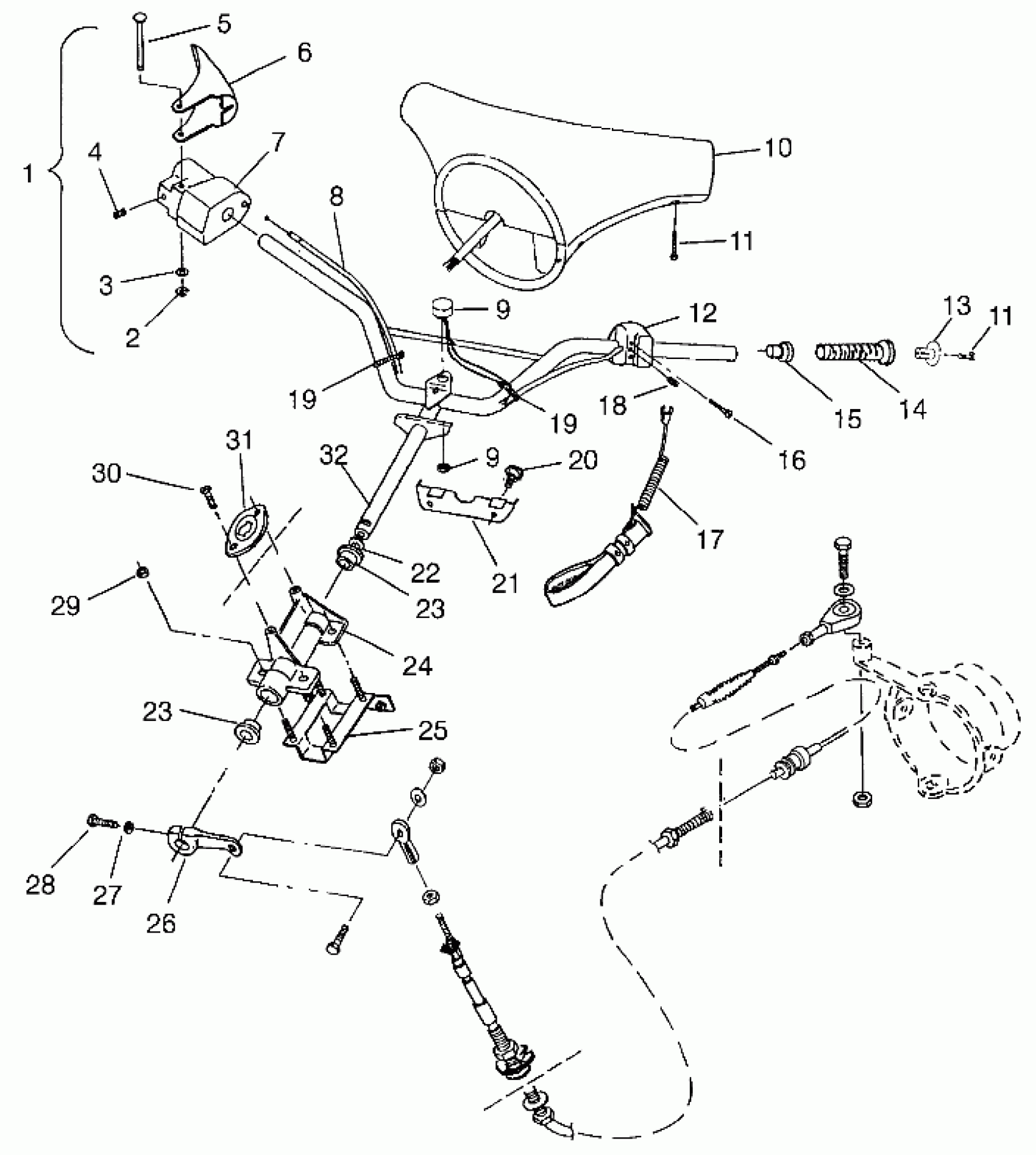

Polaris SL 700 - B964066 STEERING SL 700 B964066 and Intl. SL 700 I964066 (4935633563A013) Diagram
#
1
THROTTLE CONTROL ASM. (Incl. 2-7)
2010122
Unavailable
2
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
3
WASHER, FLAT, S.S.(10)
7555840
$3.35
4
SCREW, SET, S.S.(10)
7515115
Unavailable
5
Pin, Retaining
7661628
Unavailable
6
LEVER,THROTTLE CONTROL
5431397
Unavailable
7
BLOCK,THROTTLE CONTROL
5431396
Unavailable
8
CABLE,THROTTLE
7080620
Unavailable
9
ALARM,HI-TEMP/LOW OIL
4040048
Unavailable
9
ALARM,HI-TEMP/LOW OIL
4040048
Unavailable
10
PAD,H'BAR,PUR.WAVE Substituted by 5432791-214
5431629-214
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
12
SWITCH,STOP/TRIM/TETHER
4110162
Unavailable
13
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
14
GRIP,H'BAR,LASER BLUE Substituted by 5410638-070
5410638-217
Unavailable
15
CAPLUG(10)
7080467
Unavailable
16
SCREW(10)
7516602
Unavailable
17
CORD, TETHER Substituted by 7080675
7080518
Unavailable
18
SCREW, S.S.(10)
7516601
Unavailable
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
BOLT,SHOULDER(10)
7515387
Unavailable
21
STOP, STEERING
5222677
Unavailable
22
BUSH.(10)
7555875
Unavailable
23
BUSHING,STRG.SUPPORT
5431382
Unavailable
23
BUSHING,STRG.SUPPORT
5431382
Unavailable
24
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
25
PLATE, BOLT
1060101
Unavailable
26
ARM,STEERING,BLK. Substituted by 5131441
5130958-067
Unavailable
27
WASHER, LOCK, S.S.(10)
7552610
Unavailable
28
BOLT, S.S.(10)
7515375
Unavailable
29
NUT, HEX, S.S.(10)
7542335
Unavailable
30
SCREW,S.S.(10)
7512074
Unavailable
31
BRKT, RECEIVER
5431427
Unavailable
32
POST,STEERING,W/H'BAR
1823175
Unavailable
