HULL and BODY SL 700 B964066 and Intl. SL 700 I964066 (4935633563A005)

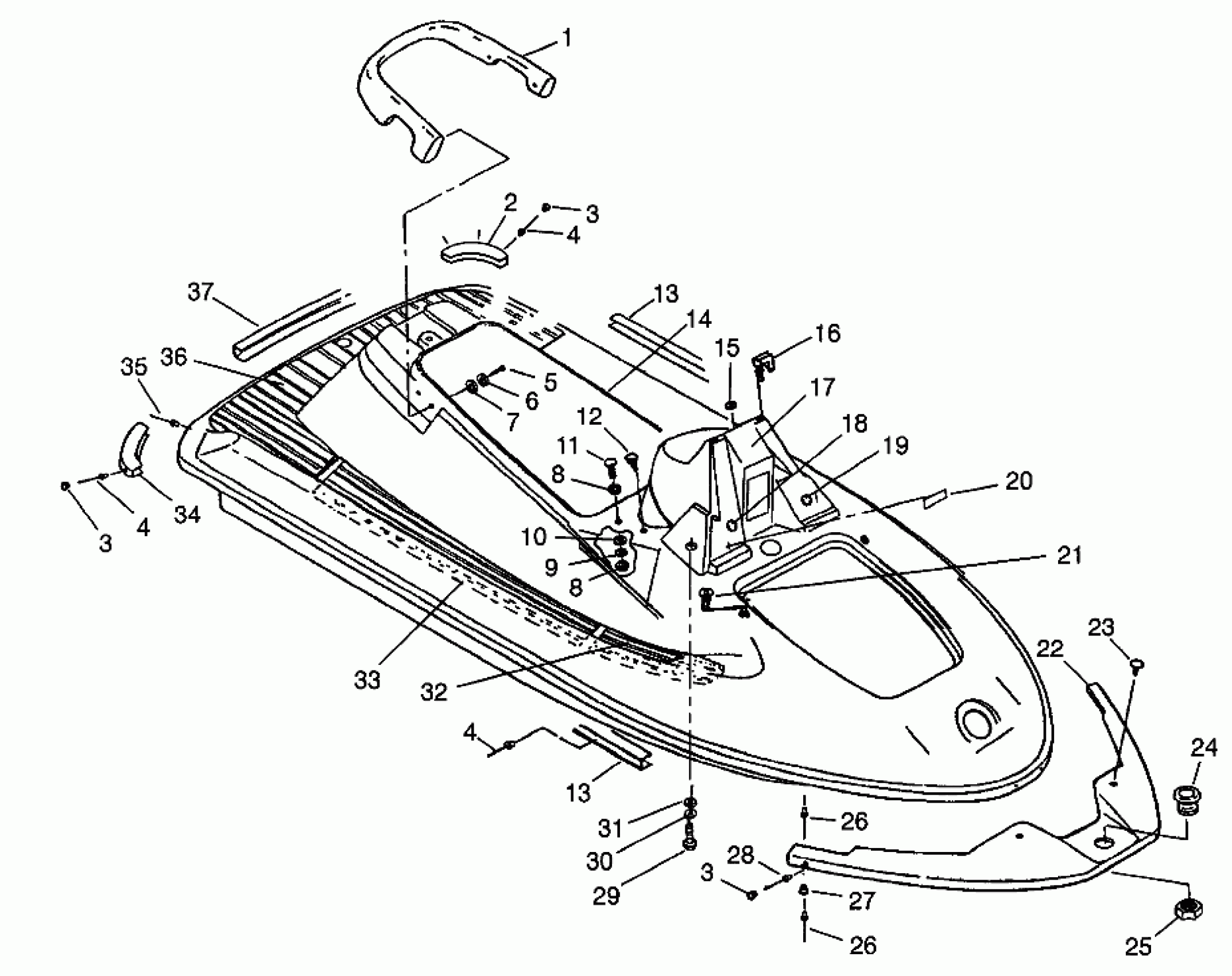

Polaris SL 700 - B964066 HULL and BODY SL 700 B964066 and Intl. SL 700 I964066 (4935633563A005) Diagram
#
1
HANDLE,GRAB,LASER BLUE
5431392-217
Unavailable
2
BUMPER,LH,R.,PUR.WAVE Substituted by 2201026-214
5431561-214
Unavailable
3
PLUG,R.BUMP,PUR.WV.
5431994-214
Unavailable
3
PLUG,R.BUMP,PUR.WV.
5431994-214
Unavailable
3
PLUG,R.BUMP,PUR.WV.
5431994-214
Unavailable
4
RIVET(50)
7621480
Unavailable
4
RIVET(50)
7621480
Unavailable
4
RIVET(50)
7621480
Unavailable
5
BOLT, S.S.(10)
7515357
Unavailable
6
WASHER, LOCK, S.S.(10)
7552610
Unavailable
7
WASHER, FLAT, S.S.(10)
7555831
Unavailable
8
NUT, HEX, S.S.,(10)
7542454
Unavailable
8
NUT, HEX, S.S.,(10)
7542454
Unavailable
9
WASHER, LOCK, S.S.(10)
7552607
Unavailable
10
WASHER, FLAT(10)
7555841
Unavailable
11
BOLT,SPECIAL,SS.(10)
7515518
Unavailable
12
CLIP, XMASTREE(10)
7080514
Unavailable
13
RAIL,RUB,SIDE,PUR.WAVE
5521309-214
Unavailable
13
RAIL,RUB,SIDE,PUR.WAVE
5521309-214
Unavailable
14
SEAL, SEAT
5521371
Unavailable
15
GROMMET
5410720
$5.75
16
BUMPER,CORNER
5431740
Unavailable
17
POD,STRG,NOTCHED,LSR.BL.
5432424-217
Unavailable
18
Grommet, Vent (See Pg., Ref.)
-------
Unavailable
20
DECAL,RECOMMENDED OIL
7074959
Unavailable
21
BUMPER,DECK
5431741
Unavailable
22
BUMPER,FR,PUR.WAVE
5410945-214
Unavailable
23
CLIP,PLASTIC DART,PUR.WV.(10) Substituted by 7670078
7670084-214
Unavailable
24
GROMMET,BOW EYE,PUR.WAVE
5431950-214
Unavailable
25
NUT,BOW EYE,PUR.WAVE
5431951-214
Unavailable
26
FASTENER,2PC,(10)
7621506
Unavailable
26
FASTENER,2PC,(10)
7621506
Unavailable
27
SPACER,FR.BUMPER
5431474
Unavailable
28
RIVET(50)
7621511
Unavailable
29
BOLT(10)
7515127
Unavailable
30
WASHER, LOCK, S.S.(10)
7555838
Unavailable
31
WASHER,S.S.(10)
7555891
Unavailable
32
PAD,FRT.FOOTWELL,BUFFED,LSR BL
5811316-217
Unavailable
33
PAD,CTR.FOOTWELL,BUFFED,LSR BL
5811315-217
Unavailable
34
BUMPER,RH,R.,PUR.WAVE Substituted by 2201026-214
5431562-214
Unavailable
35
RIVET,(50)
7621492
Unavailable
36
PAD,RR.FOOTWELL,BUFFED,LSR BL
5811314-217
Unavailable
37
RAIL,RUB,REAR,PUR.WAVE
5521310-214
Unavailable
