FRONT STORAGE COMPARTMENT SL 700 B964066 and Intl. SL 700 I964066 (4935633563A008)

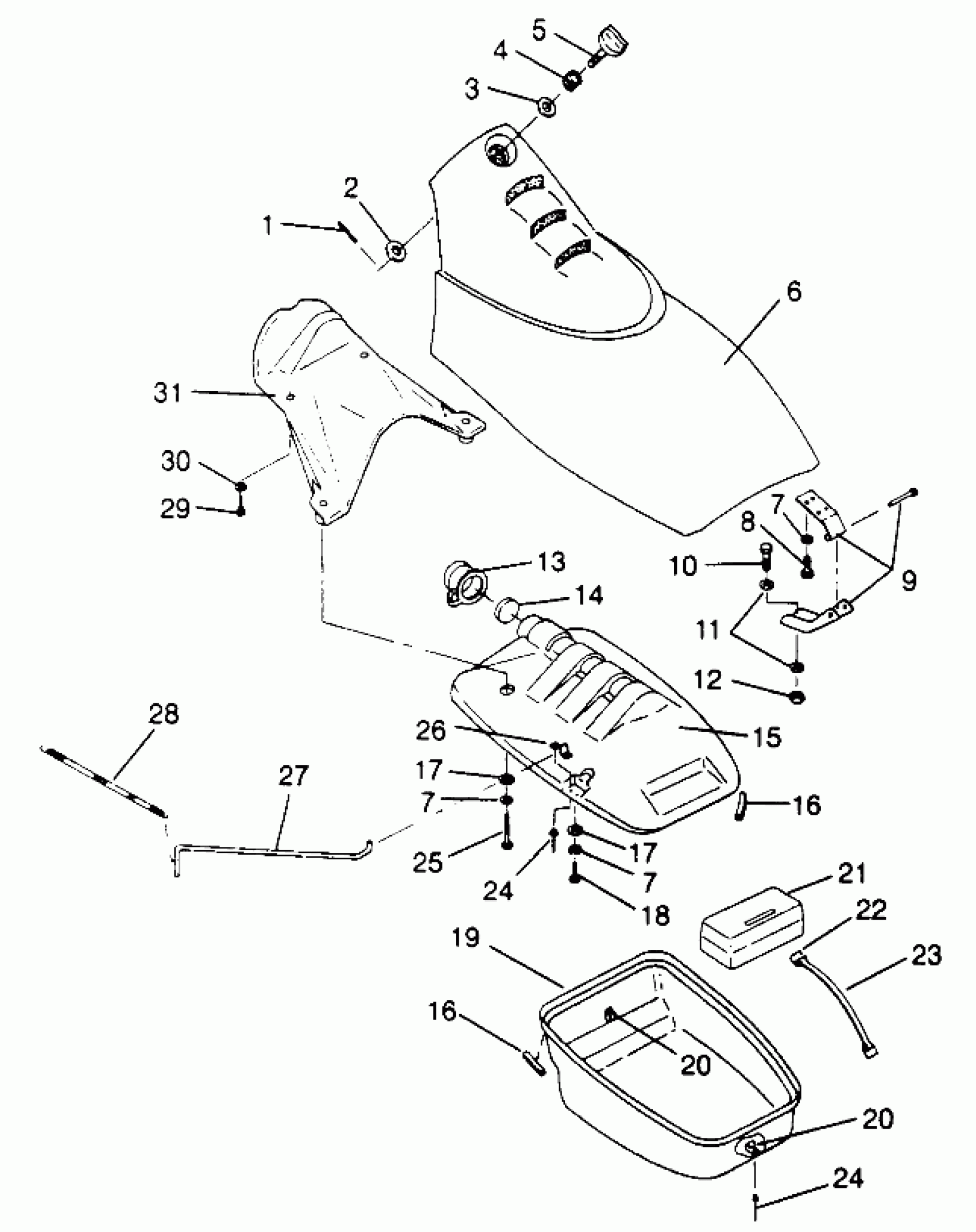

Polaris SL 700 - B964066 FRONT STORAGE COMPARTMENT SL 700 B964066 and Intl. SL 700 I964066 (4935633563A008) Diagram
#
1
PIN, GROOVED, S.S.(10)
7661630
Unavailable
2
CUSHION, VIBRATION
5810570
Unavailable
3
WASHER, WEAR
5431426
Unavailable
4
SPRING,COMPRESSION
7041275
Unavailable
5
KNOB,DOOR COMP,LSR BLUE
5431383-217
Unavailable
6
DOOR,COMPART,LSR.BLUE
5431324-217
Unavailable
7
WASHER, LOCK, S.S.(10)
7555838
Unavailable
7
WASHER, LOCK, S.S.(10)
7555838
Unavailable
7
WASHER, LOCK, S.S.(10)
7555838
Unavailable
8
BOLT, S.S.(10)
7515121
Unavailable
9
HINGE ASM,COMPARTMENT
2635012
Unavailable
10
BOLT, S.S.
7515365
Unavailable
11
WASHER, FLAT, S.S.(10)
7555831
Unavailable
12
NUT, HEX, S.S.(10)
7542335
Unavailable
13
CAP,FIRE EXT.,YELLOW
5431398-053
Unavailable
14
PAD,FOAM,FIRE EXT.
5810799
Unavailable
15
LID,BCKT,FR.STORAGE Substituted by 5432579
5431489
Unavailable
16
SEAL,FR.STORAGE BKT.
5521252
Unavailable
16
SEAL,FR.STORAGE BKT.
5521252
Unavailable
17
WASHER, FLAT, S.S.(10)
7555839
Unavailable
17
WASHER, FLAT, S.S.(10)
7555839
Unavailable
18
BOLT(10)
7515127
Unavailable
19
BUCKET,FR.STORAGE Substituted by 5432526
5431394
Unavailable
20
Clip
5240187
Unavailable
20
Clip
5240187
Unavailable
21
BOX, TOOL
5431508
Unavailable
22
HOOK,'D',SST/SS,(10)
5224472
$2.19
23
STRAP-BATTERY
5430621
$20.22
24
RIVET
7621478
Unavailable
24
RIVET
7621478
Unavailable
25
BOLT(10)
7515130
Unavailable
26
RETAINER,DOOR SUPPORT
5222782
Unavailable
27
SUPPORT,DOOR,COMPART.
5224471
Unavailable
28
SPRING,DOOR SUPPORT
7042038
Unavailable
29
SCREW(10)
7512049
Unavailable
30
WASHER, FLAT, S.S.(10)
7555837
Unavailable
31
BAFFLE,AIR INTAKE
5431546
Unavailable
