ELECTRICAL BOX SL 700 B964066 and Intl. SL 700 I964066 (4935633563B012)

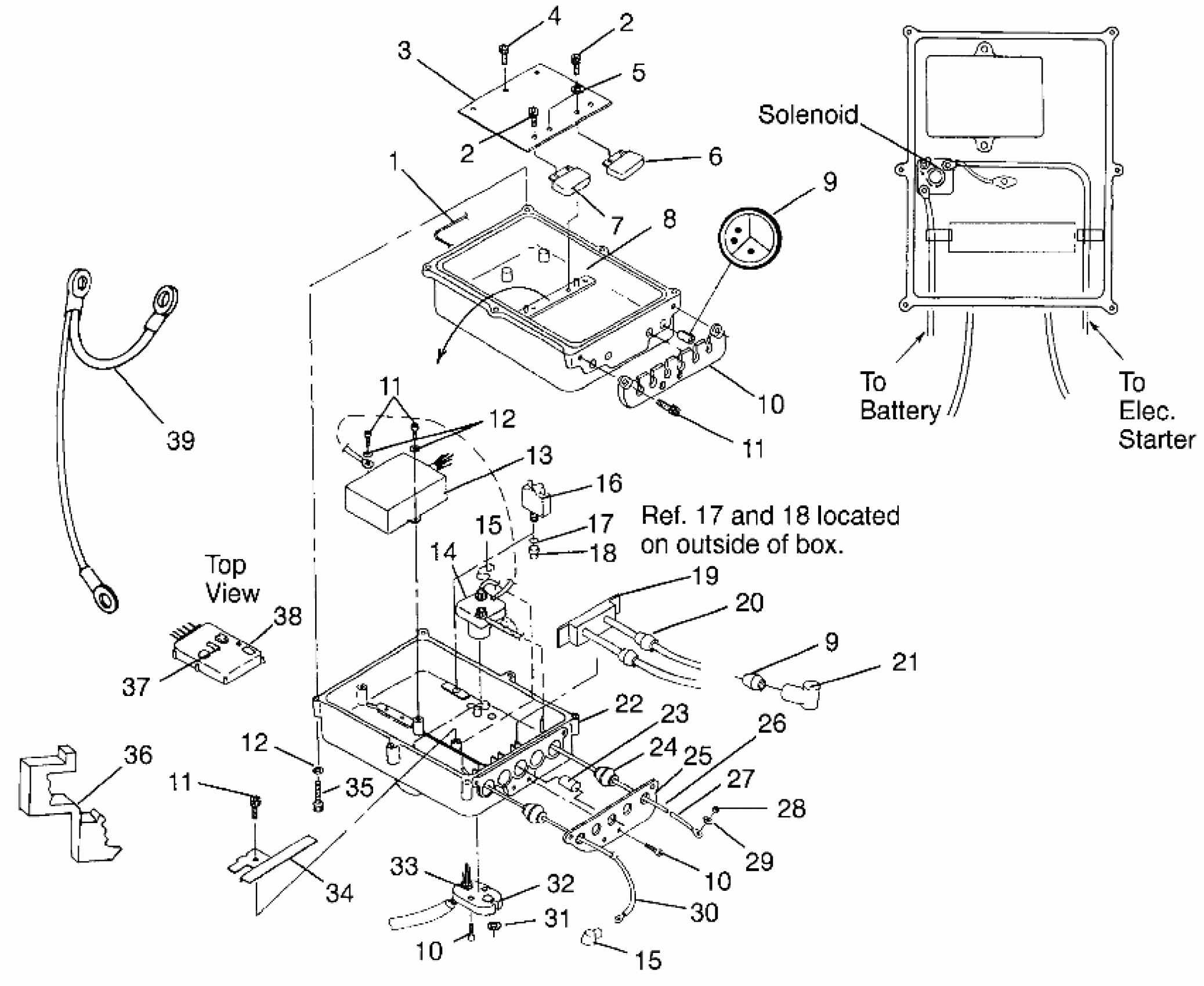

Polaris SL 700 - B964066 ELECTRICAL BOX SL 700 B964066 and Intl. SL 700 I964066 (4935633563B012) Diagram
#
1
O-RING,(ELEC.BOX)
5410912
Unavailable
2
SCREW,S.S.(10)
7512072
Unavailable
2
SCREW,S.S.(10)
7512072
Unavailable
3
BOARD,TERMINAL,W/FUSE
4040069
Unavailable
4
BOLT, S.S.(10)
7512042
$2.62
5
WASHER, LOCK(10)
7552615
$4.99
6
SWITCH-RECTIFIER,LR-52
4060110
Unavailable
7
REGULATOR/RECT.,LR-21
4060108
Unavailable
8
BOX,BOTTOM,ELEC.
5131256
Unavailable
9
O-RING,(10)
5410817
Unavailable
9
GROMMET,SECTION,NO HOLE
5410850
Unavailable
9
O-RING,(10)
5410817
Unavailable
9
GROMMET,SECTION,NO HOLE
5410850
Unavailable
10
PLATE,6-HOLE,CAST
5630497
Unavailable
10
PLATE,6-HOLE,CAST
5630497
Unavailable
10
PLATE,6-HOLE,CAST
5630497
Unavailable
11
BOLT, S.S.(10)
7515118
Unavailable
11
BOLT, S.S.(10)
7515118
Unavailable
11
BOLT, S.S.(10)
7515118
Unavailable
12
WASHER(10)
7555836
$3.99
12
WASHER(10)
7555836
$3.99
13
Controller, Ingnition (See Pg., Ref.)
-------
Unavailable
14
SWITCH, MAGNETIC
3240204
Unavailable
15
INSULATOR-CABLE
5410346
$6.39
15
INSULATOR-CABLE
5410346
$6.39
16
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
17
O-RING
5410725
Unavailable
18
BOOT,THREADED,RED
7080461
Unavailable
19
Ignition Coil Twin (See Pg., Ref.)
-------
Unavailable
20
GROMMET, COIL
5410677
Unavailable
21
Cap, Spark Plug (See Pg., Ref.)
-------
Unavailable
22
TOP, ELEC.BOX
5131174
Unavailable
23
GROMMET,(.910 DIA.)
5411025
Unavailable
24
GROMMET, 16 GA.(10)
5410678
Unavailable
25
PLATE, 5-HOLE
5630416
Unavailable
26
CONDUIT,CONVOL(30 CM)
4010051-30
Unavailable
27
CABLE,RED,SOL./START.
4010081
Unavailable
28
NUT, 6 MM.,S.S.(10)
7546705
$4.79
29
WASHER, LOCK(10)
7552613
Unavailable
30
CABLE,RED,BATT/SOL.
4010082
Unavailable
31
O-RING(10)
5410818
Unavailable
32
PLATE, 2-HOLE
5630415
Unavailable
33
GROMMET,SECTION,2-HOLE
5410852
Unavailable
34
BRKT,COIL RETAINER
5241182
Unavailable
35
BOLT(10)
7515119
Unavailable
36
T-CLIP(10)
7080471
$3.59
37
DECAL,WARN,HI.VOLT.
7073713
Unavailable
38
DECAL,ELECT.BOX RESET
7073734
Unavailable
39
HARNESS,GND-CONTROL BOX
2460581
Unavailable
