CARBURETOR SL 700 B964066 and Intl. SL 700 I964066 (4935633563C005)

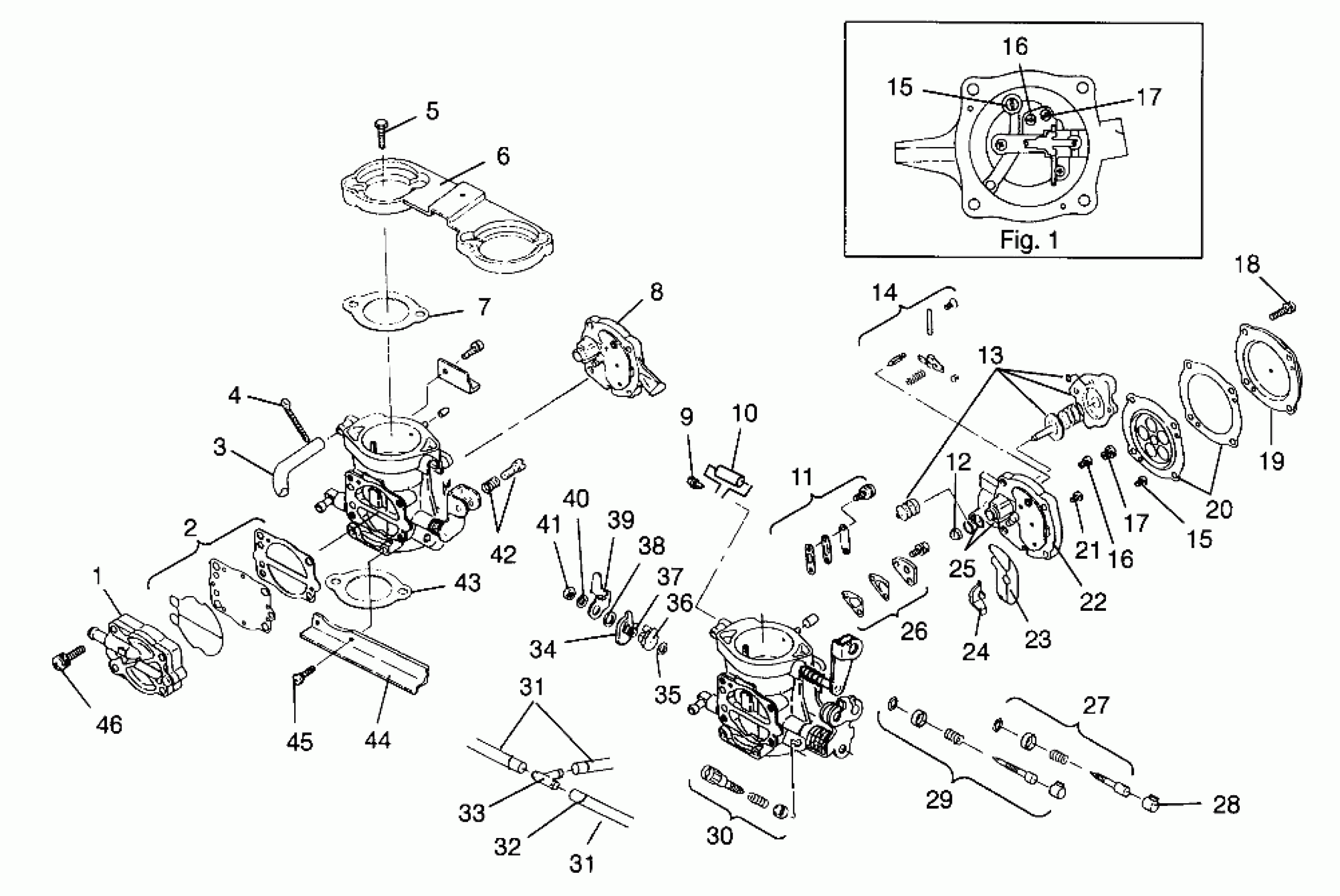

Polaris SL 700 - B964066 CARBURETOR SL 700 B964066 and Intl. SL 700 I964066 (4935633563C005) Diagram
#
-
KIT,CARB.REBUILD,PWC (Incl. 7, 14, 20, 43)
2200910
Unavailable
-
CARB.ASM,2 CYL.
1253134
Unavailable
-
CARB ASM,REAR Substituted by 1253134
3050162
Unavailable
-
CARB ASM,FRONT Substituted by 1253134
3050163
Unavailable
1
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
2
KIT,GASKET(FUELPUMP)
2200686
Unavailable
3
Hose, Fuel
3050143
Unavailable
4
CLAMP, HOSE, S.S.(10)
7080476
$6.39
5
BOLT(10)
7516812
Unavailable
6
BASE,AIRBOX
5630539
Unavailable
7
GASKET,CARB.,UPPER
5830062
Unavailable
8
JET,R.BLOCK COMP (Rear)
3050146
Unavailable
9
JOINT,CONNECTING
3050156
Unavailable
10
TUBE,RUBBER
3050157
Unavailable
11
KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)
2200685
Unavailable
12
SCREEN,FUELSTRAINER
3050144
Unavailable
13
KIT,ACCEL.PUMP
2200732
Unavailable
14
KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)
2200733
Unavailable
15
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
15
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
16
JET-PILOT,55 KEIHIN
3050124
Unavailable
16
JET-PILOT,55 KEIHIN
3050124
Unavailable
17
JET-PILOT,70 KEIHIN
3050130
Unavailable
17
JET-PILOT,70 KEIHIN
3050130
Unavailable
18
SCREW,JET BLOCK COVER
3050135
Unavailable
19
COVER,JET BLOCK
3050139
Unavailable
20
KIT,DIAPHRAGM-JET BLOCK (Per Carb)
2200730
Unavailable
21
Screw, Jet Block
3050137
Unavailable
22
JET,FR.BLOCK COMP. (Front)
3050145
Unavailable
23
O-Ring, Jet Block
3050147
Unavailable
24
Collar
3050138
Unavailable
25
O-RING,(VALVE SEAT)
3050148
Unavailable
26
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
27
KIT,IDLESCREW,(KEIHIN) (1 Per Carb)
2200689
Unavailable
28
Cap, Limiter
3050140
Unavailable
29
KIT,MAINMIX.SCREW(KEIHIN) (1 Per Carb)
2200690
Unavailable
30
KIT,IDLESTOP SCREW
2200731
Unavailable
31
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
31
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
FITTING, T
3050141
$9.59
34
CAM, ACCEL.PUMP Substituted by 2200910
3050151
Unavailable
35
E-Clip
3050158
Unavailable
36
COLLAR
3050149
Unavailable
37
SPRING, TORSION
3050150
Unavailable
38
WASHER
3050152
Unavailable
39
LEVER,SYNCHRONIZING
3050153
Unavailable
40
Washer, Lock
3050154
Unavailable
41
NUT,THROTTLE SHAFT
3050155
Unavailable
42
KIT,SYNCH.SCREW
2200734
Unavailable
43
GASKET,CARB.
5830043
Unavailable
44
PLATE,CONNECTING
3050160
Unavailable
45
SCREW,CONNECT.PLATE
3050159
Unavailable
46
SCREW, FUELPUMP
3050136
Unavailable
