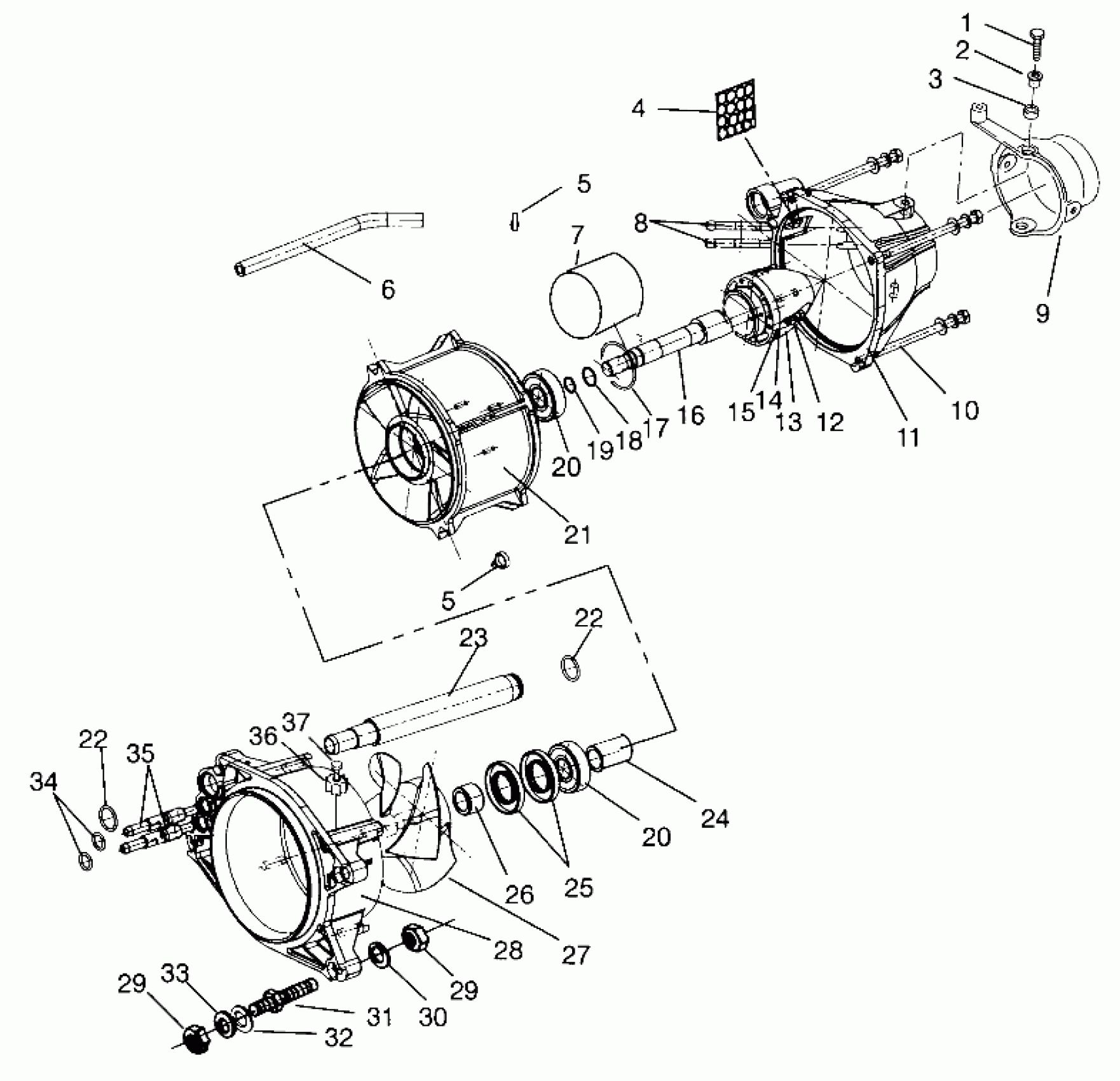

Polaris SL 650 STD - B954358 PROPULSION SL 650 STD B954358 (4932923292B002) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7515366

Unavailable

2

Collar

5130938

Unavailable

3

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

4

SCREEN,ENG.INLET

5431523

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

HOSE,WATER Substituted by 8450054-100

8450054-23

Unavailable

7

EXTENSION,TAILCONE,3/4"

5131245

Unavailable

8

TUBE,SIPHON,BILGE

5010293

$29.52

9

NOZZLE,STRG.

5131048

$40.49

10

BOLT

7515377

$11.90

11

DESC NOT_AVAILABLE

1350017

Unavailable

12

SCREW,S.S.,ALLEN(10)

7512090

$1.75

13

WASHER, LOCK(10)

7552615

Unavailable

14

Cone, Pump

5431519

Unavailable

15

WASHER, FLAT(10)

7555861

$1.27

16

SHAFT, STUB Substituted by 5132674

5020697

$47.62

17

O-RING(10)

5410819

$0.79

18

O-RING(10)

5410818

$0.79

19

O-RING,(10)

5410817

Unavailable

20

Bearing

3514008

Unavailable

20

Bearing

3514008

Unavailable

21

STATOR,PUMP (Mach.)

5130983

Unavailable

22

O RING,(10)

5410735

$0.79

22

O RING,(10)

5410735

$0.79

23

PIPE,WATER,ENGINE

5431655

Unavailable

24

Spacer

5010294

Unavailable

25

SEAL,BRG,STATOR

3610043

Unavailable

26

Spacer, Impeller

5010295

Unavailable

27

IMPELLER,94-650

5131056

Unavailable

28

HOUSING,PUMP,('94) Substituted by 5131815 (Mach.)

5130982

Unavailable

29

NUT,HEX,S.S.(10)

7542455

Unavailable

29

NUT,HEX,S.S.(10)

7542455

Unavailable

30

WASHER, FLAT(10)

7555841

Unavailable

31

STUD,MTG.PUMP Substituted by 5020880

5020804

Unavailable

32

WASHER, FLAT(10)

7555846

$5.56

33

WASHER,FLAT, S.S.(10)

7555853

$2.62

34

SEAL,SIPHON TUBE

5411016

Unavailable

35

PIPE,WATER BILGE

5020835

$49.59

36

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

37

SCREW(10)

7522019

$0.95
