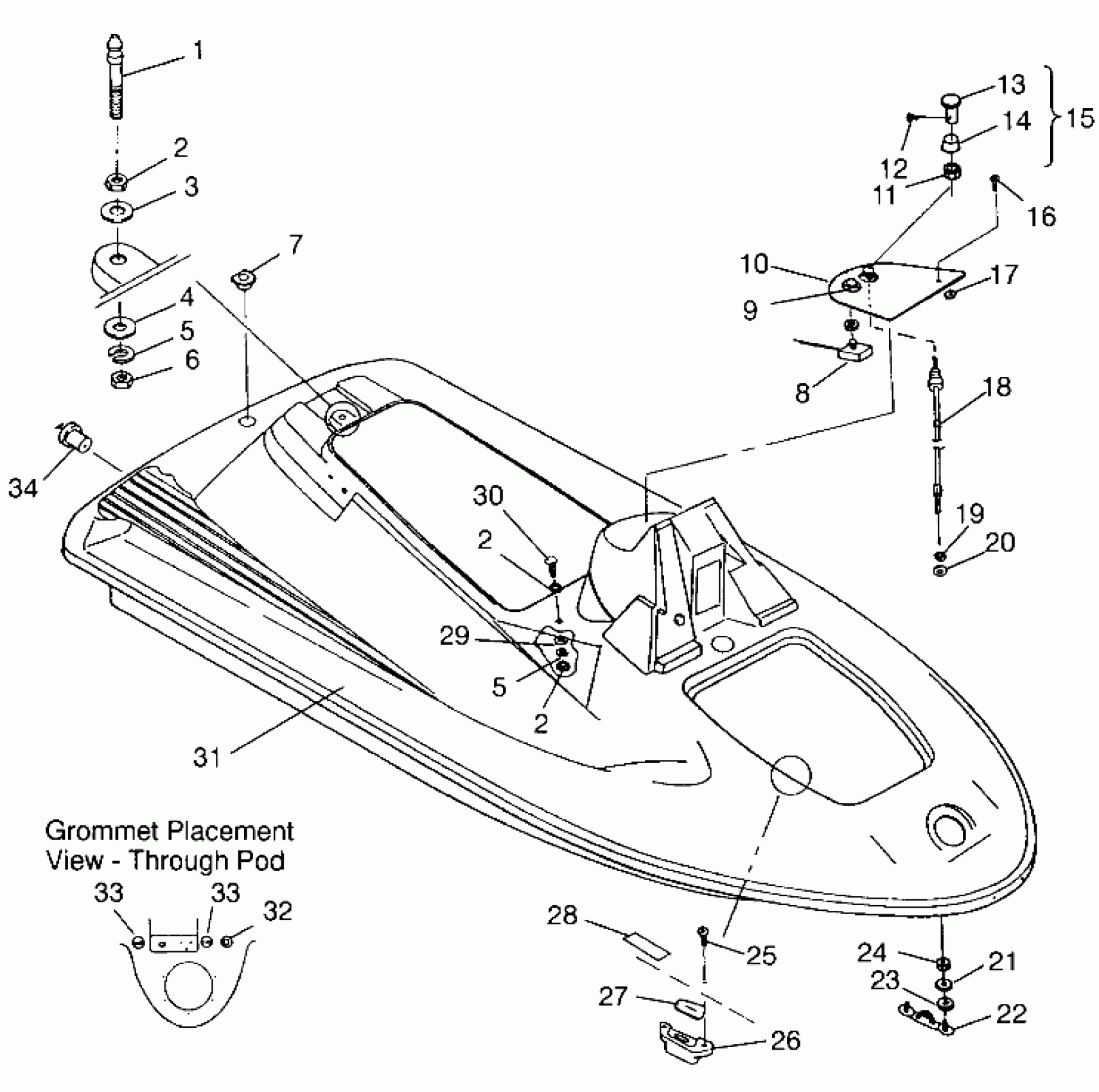

Polaris SL 650 STD - B954358 HULL and BODY SL 650 STD B954358 (4932923292A006) Diagram

#

Description
Price

1

PLUNGER,LATCH

5020753

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

3

WASHER, FLAT(10)

7555845

Unavailable

4

WASHER, FLAT(10)

7555846

$5.56

5

WASHER, LOCK, S.S.(10)

7552607

$1.39

5

WASHER, LOCK, S.S.(10)

7552607

$1.39

6

NUT,HEX,S.S.(10)

7542455

Unavailable

7

EYELET,R.PURP.VELVET

5431404-194

$9.90

8

SWITCH,STARTER

4110163

$75.40

9

NUT,WATERPROOF,STARTER SWITCH

7080513

Unavailable

10

PANEL,INST,RUBINE RED

5431783-182

$28.89

11

NUT

2080002

$2.06

12

Screw

2080005

$0.69

13

KNOB,CHOKE

2080004

$9.05

14

COVER

2080003

Unavailable

15

KIT, CHOKE, (PWC) (Incl. 13-11)

2200428

Unavailable

16

SCREW, SS.(10)

7512047

$1.99

17

CLIP,'U',S.S.(10)

7670077

$1.27

18

CABLE, CHOKE (Incl. 19-20)

7080448

$38.41

19

NUT

2010125

$0.71

20

WASHER

2010126

Unavailable

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

22

STRAP, BOW

2670150

$49.21

23

WASHER,RUBBER(10)

7555870

$0.40

24

NUT,NYLOK,S.S.(10)

7542133

Unavailable

25

SCREW(10)

7512049

Unavailable

26

STOP,DOOR SUPPORT

5431960

Unavailable

27

SEAL,DOOR SUPPORT

5810571

Unavailable

28

DECAL,DOOR,COMPARTMENT

7073717

Unavailable

29

WASHER, FLAT(10)

7555841

Unavailable

30

BOLT,SPECIAL,SS.(10)

7515518

$31.99

31

BOAT BODY ASM. [No Longer Available] (Incl. 2, 4-7, Housing Shaft & Thru-Hull)

2631618

Unavailable

32

GROMMET,BOOT

5410990

$2.62

33

GROMMET,BOOT

5410989

$2.62

33

GROMMET,BOOT

5410989

$2.62

34

PLUG, BAIL

7010046

Unavailable
