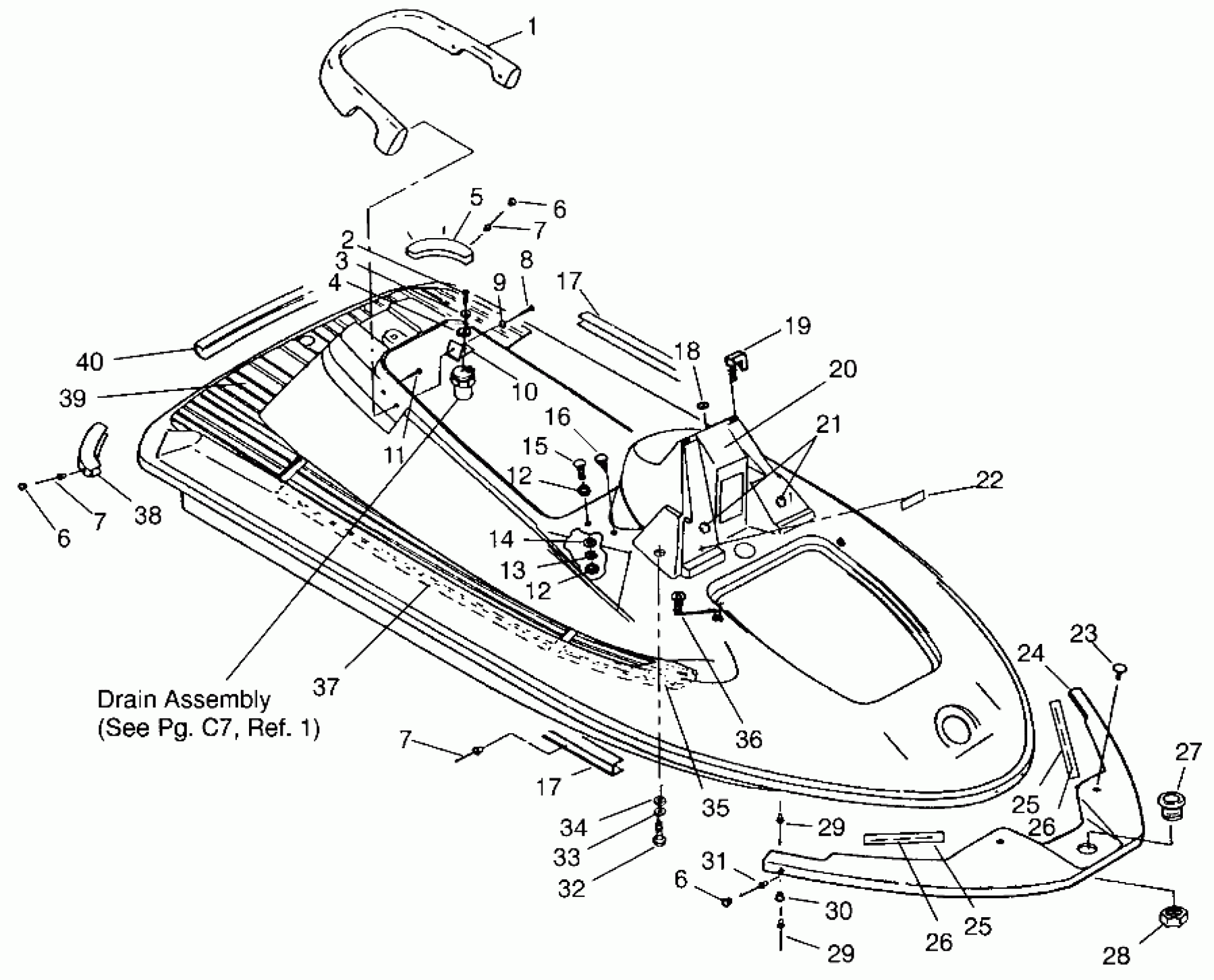

Polaris SL 650 STD - B954358 HULL and BODY ASSEMBLY SL 650 STD B954358 (4932923292A005) Diagram

#

Description
Price

1

HANDLE,GRAB,PURPLE Substituted by 2200783-194

5431729-194

Unavailable

2

SCREW, S.S.(10)

7516805

$0.71

3

WASHER, LOCK(10)

7552613

Unavailable

4

WASHER(10)

7555882

$2.06

5

BUMPER,LH,R.,PUR.VEL. Substituted by 2201026-194

5431561-194

Unavailable

6

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

6

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

6

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

7

RIVET(50)

7621480

Unavailable

7

RIVET(50)

7621480

Unavailable

7

RIVET(50)

7621480

Unavailable

8

SCREW(10)

7517103

$2.60

9

WASHER, FLAT, S.S.(10)

7555839

Unavailable

10

BRKT,SEPARATOR,WATER

5431825

Unavailable

11

SCREW, S.S.(10)

7515141

$1.37

12

NUT, HEX, S.S.,(10)

7542454

Unavailable

12

NUT, HEX, S.S.,(10)

7542454

Unavailable

13

WASHER, LOCK, S.S.(10)

7552607

$1.39

14

WASHER, FLAT(10)

7555841

Unavailable

15

BOLT,SPECIAL,SS.(10)

7515518

$31.99

16

CLIP, XMASTREE(10)

7080514

$1.19

17

RAIL,RUB,SIDE,PURP.VELVET

5521309-194

Unavailable

17

RAIL,RUB,SIDE,PURP.VELVET

5521309-194

Unavailable

18

GROMMET

5410720

$5.71

19

BUMPER,CORNER

5431740

$11.39

20

POD,STRG,NOTCH,RUB.RED

5432146-182

Unavailable

21

Grommet, Vent

5410682

Unavailable

22

DECAL,RECOMMENDED OIL

7074959

Unavailable

23

CLIP-DART,PURP.VELVET(10) Substituted by 7670084-214

7670084-194

$3.79

24

BUMPER,FR,PURP.VEL. Substituted by 5410945-214

5410945-194

Unavailable

25

CHANNEL,'U'

5432154

$5.71

25

CHANNEL,'U'

5432154

$5.71

26

DESC NOT_AVAILABLE

9810348

Unavailable

26

DESC NOT_AVAILABLE

9810348

Unavailable

27

GROMMET,BOW EYE,PURP.VIOLET

5431950-194

Unavailable

28

NUT,BOW EYE,PURP.VIOLET

5431951-194

Unavailable

29

FASTENER,2PC,(10)

7621506

Unavailable

29

FASTENER,2PC,(10)

7621506

Unavailable

30

SPACER,FR.BUMPER

5431474

$2.38

31

RIVET(50)

7621511

Unavailable

32

BOLT(10)

7515127

Unavailable

33

WASHER, LOCK, S.S.(10)

7555838

Unavailable

34

WASHER,S.S.(10)

7555891

$1.50

35

PAD,FRT,PURP.VEL.

5811089-194

Unavailable

36

BUMPER,DECK

5431741

Unavailable

37

PAD,CTR,PURP.VEL. Substituted by 5811315-194

5811088-194

Unavailable

38

BUMPER,RH,R.,PUR.VEL. Substituted by 2201026-194

5431562-194

Unavailable

39

PAD,R.FOOTWELL,PURP.VELVET

5810549-194

Unavailable

40

RAIL,RUB,REAR,PURP.VELVET

5521310-194

Unavailable
