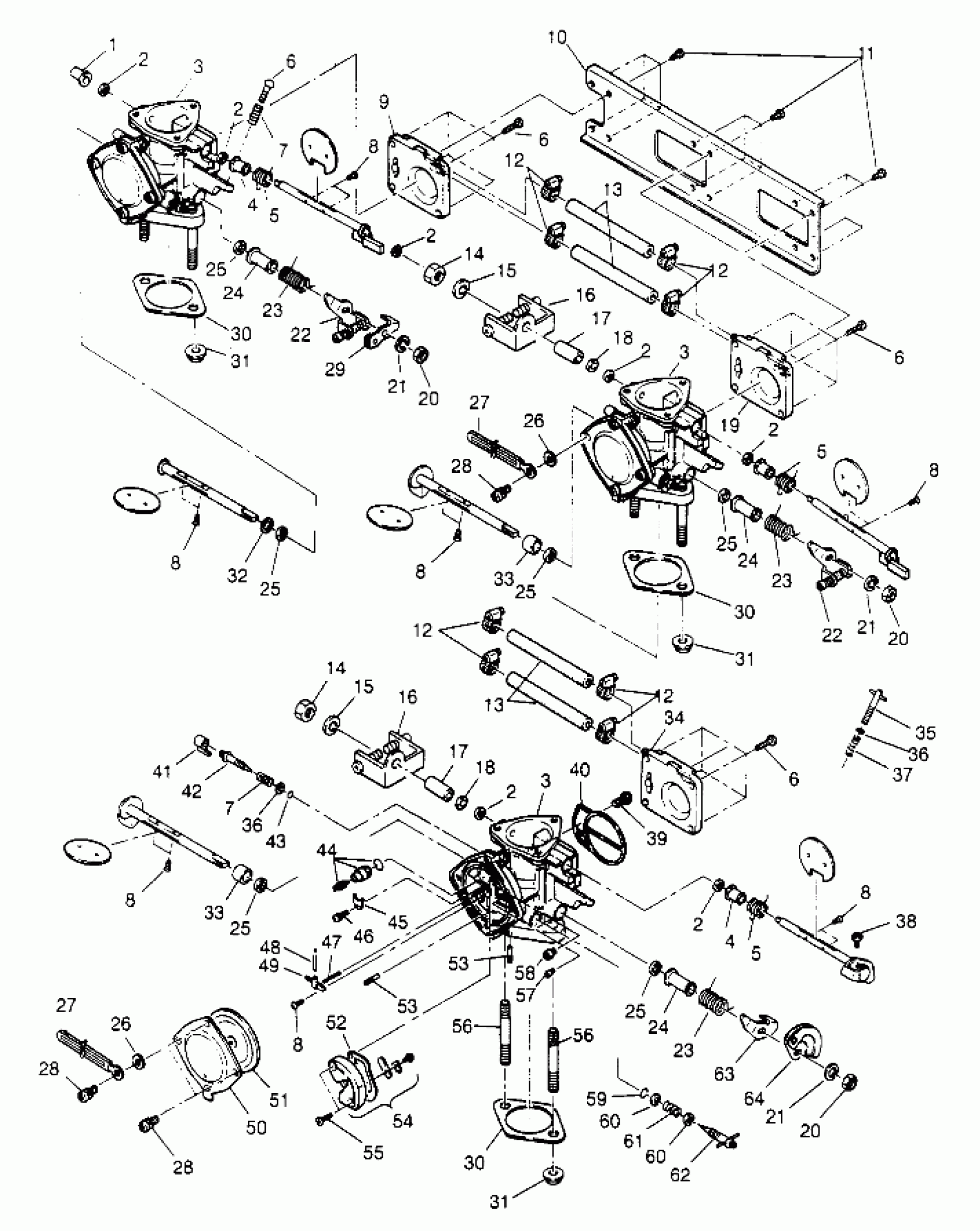

Polaris SL 650 STD - B954358 CARBURETOR SL 650 STD B954358 (4932923292C001) Diagram

#

Description
Price

1

RING

3140025

$1.67

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

3

CARBURETOR ASM. [Cannot Purchase as Assembly] (Incl. 1-29, 32-64)

3140086

Unavailable

3

CARBURETOR ASM. [Cannot Purchase as Assembly] (Incl. 1-29, 32-64)

3140086

Unavailable

3

CARBURETOR ASM. [Cannot Purchase as Assembly] (Incl. 1-29, 32-64)

3140086

Unavailable

4

RING

3140021

Unavailable

4

RING

3140021

Unavailable

5

SPRING

3140020

$4.92

5

SPRING

3140020

$4.92

5

SPRING

3140020

$4.92

6

SCREW

3140027

$1.90

6

SCREW

3140027

$1.90

6

SCREW

3140027

$1.90

6

SCREW

3140027

$1.90

7

SPRING

3140054

$1.83

7

SPRING

3140054

$1.83

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

8

SCREW Substituted by 3140065

3140005

Unavailable

9

COVER ASM.

3140089

$46.39

10

PLATE

3140008

$81.75

11

SCREW

3140009

$1.59

12

CLAMP

3140028

$9.52

12

CLAMP

3140028

$9.52

12

CLAMP

3140028

$9.52

12

CLAMP

3140028

$9.52

13

HOSE

3140029

Unavailable

13

HOSE

3140029

Unavailable

14

NUT

3140079

Unavailable

14

NUT

3140079

Unavailable

15

WASHER, SPRING

3140078

Unavailable

15

WASHER, SPRING

3140078

Unavailable

16

SHAFT ASM,CHOKE

3140077

$29.84

16

SHAFT ASM,CHOKE

3140077

$29.84

17

RING

3140076

$3.33

17

RING

3140076

$3.33

18

RING

3140080

Unavailable

18

RING

3140080

Unavailable

19

COVER

3140075

$49.52

20

NUT

3140011

$2.70

20

NUT

3140011

$2.70

20

NUT

3140011

$2.70

21

WASHER, SPRING

3140012

Unavailable

21

WASHER, SPRING

3140012

Unavailable

21

WASHER, SPRING

3140012

Unavailable

22

LEVER ASM,THROTTLE

3140088

Unavailable

22

LEVER ASM,THROTTLE

3140088

Unavailable

23

SPRING

3140003

Unavailable

23

SPRING

3140003

Unavailable

23

SPRING

3140003

Unavailable

24

RING

3140002

$2.62

24

RING

3140002

$2.62

24

RING

3140002

$2.62

25

SEAL

3140001

Unavailable

25

SEAL

3140001

Unavailable

25

SEAL

3140001

Unavailable

25

SEAL

3140001

Unavailable

25

SEAL

3140001

Unavailable

25

SEAL

3140001

Unavailable

26

WASHER

3140091

Unavailable

26

WASHER

3140091

Unavailable

27

PLATE

3140090

Unavailable

27

PLATE

3140090

Unavailable

28

SCREW,(10)

3140046

$2.06

28

SCREW,(10)

3140046

$2.06

28

SCREW,(10)

3140046

$2.06

29

LEVER, THROTTLE

3140081

$10.63

30

GASKET,CARBURETOR,(10)

3240128

Unavailable

30

GASKET,CARBURETOR,(10)

3240128

Unavailable

30

GASKET,CARBURETOR,(10)

3240128

Unavailable

31

NUT, FLANGE,(10)

3240058

Unavailable

31

NUT, FLANGE,(10)

3240058

Unavailable

31

NUT, FLANGE,(10)

3240058

Unavailable

32

PACKING

3140030

Unavailable

33

Ring

3140032

Unavailable

33

Ring

3140032

Unavailable

34

COVER

3140087

$41.59

35

SCREW ASM.

3140015

$17.46

36

WASHER

3140014

Unavailable

36

WASHER

3140014

Unavailable

37

SPRING

3140013

Unavailable

38

SCREW

3140019

Unavailable

39

FILTER

3140039

$7.84

40

O-RING,(GASKET)

3140006

$48.99

41

CAP

3140047

$4.13

42

ADJUSTER

3140048

Unavailable

43

RING

3140049

$9.70

44

NEEDLEVALVE ASM.

3140040

Unavailable

45

PLATE

3140037

Unavailable

46

SCREW,(10)

3140038

$1.43

47

SPRING(10)

3130491

Unavailable

48

PIN

3140036

Unavailable

49

ARM

3140041

$9.84

50

COVER

3140045

$2.46

51

DIAPHRAGM ASM.

3140044

Unavailable

52

GASKET

3140043

Unavailable

53

SCREW,(1)

3140018

Unavailable

53

SCREW,(1)

3140018

Unavailable

54

BODY ASM.

3140066

Unavailable

55

SCREW,(10)

3140034

Unavailable

56

BOLT

3140026

$19.05

56

BOLT

3140026

$19.05

57

JET,PILOT,#77.5 (#77.5)

3140064

Unavailable

58

JET,MAIN,#87.5 (#87.5)

3140092

$2.70

59

O-Ring

3140053

$5.65

60

WASHER

3140052

Unavailable

60

WASHER

3140052

Unavailable

61

SPRING

3140051

$1.83

62

ADJUSTER

3140050

Unavailable

63

LEVER, THROTTLE

3140004

$12.30

64

LEVER ASM,THROTTLE

3140010

$13.89
