Description

Price

1

SEAT ASM,PURP.VELVET,(PWC)

2681725-194

Unavailable

2

STRAP,SEAT,PUR.VEL.

2690095-194

Unavailable

3

SCREW(10) Substituted by 7512052

7512055

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

NUT, WELD

7541935

Unavailable

6

SHIELD,RH SEAT,RUB.RED

5432125-182

Unavailable

6

SHIELD,LH SEAT,RUB.RED

5432124-182

Unavailable

7

SCREW(10)

7512089

Unavailable

8

COVER,SEAT,PUR.VEL.

2681726-194

Unavailable

9

CLIP,SEAT RETAINER

5222694

Unavailable

10

RIVET(50)

7661834

$5.99

11

RIVET(50)

7621479

$1.99

12

PLATE, RETAINER

5211347

Unavailable

13

DUCT, AIR OUTLET

5431369

Unavailable

14

BOLT, SS.(10)

7515123

Unavailable

15

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, FLAT, S.S.(10)

7555839

Unavailable

17

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

18

PLATE,SEATBASE LATCH

5211314

Unavailable

19

SEAL, SEAT Substituted by 2200760

5521288

Unavailable

20

SPRING,SEATBASE LATCH

7042036

Unavailable

21

HANDLE, SEAT

5431358

Unavailable

22

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

23

NUT, TEE(10)

7542137

Unavailable

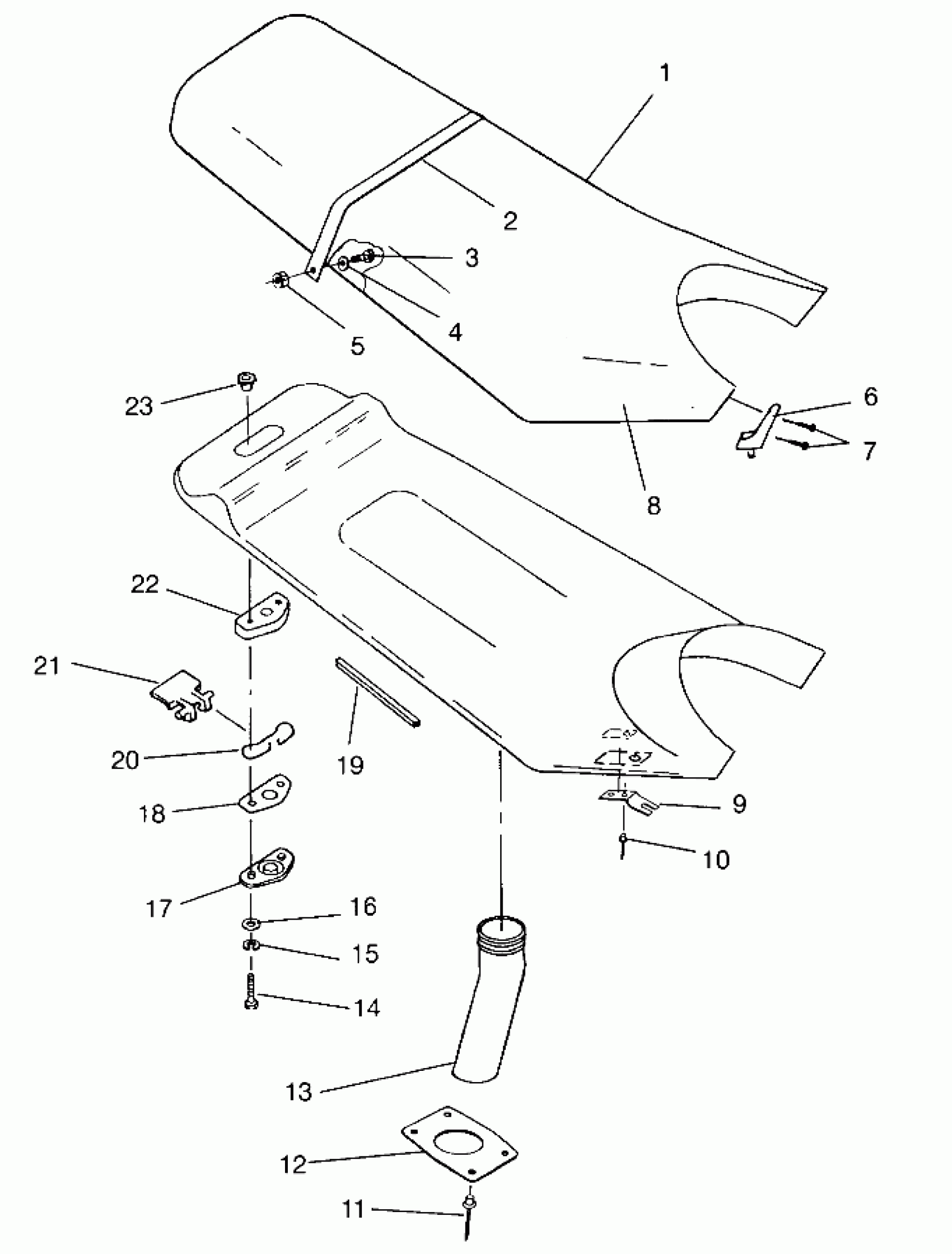

Polaris SL 650 - B954058 SEAT ASSEMBLY SL 650 B954058 (4930483048A011) Diagram

SEAT ASM,PURP.VELVET,(PWC)

STRAP,SEAT,PUR.VEL.

SCREW(10) Substituted by 7512052

WASHER, FLAT, S.S.(10)

NUT, WELD

SHIELD,RH SEAT,RUB.RED

SHIELD,LH SEAT,RUB.RED

SCREW(10)

COVER,SEAT,PUR.VEL.

CLIP,SEAT RETAINER

RIVET(50)

RIVET(50)

PLATE, RETAINER

DUCT, AIR OUTLET

BOLT, SS.(10)

WASHER, LOCK, S.S.(10)

WASHER, FLAT, S.S.(10)

PLATE,LATCH,BOT.SEAT BASE

PLATE,SEATBASE LATCH

SEAL, SEAT Substituted by 2200760

SPRING,SEATBASE LATCH

HANDLE, SEAT

PLATE,TOP,SEATBASE LATCH

NUT, TEE(10)
