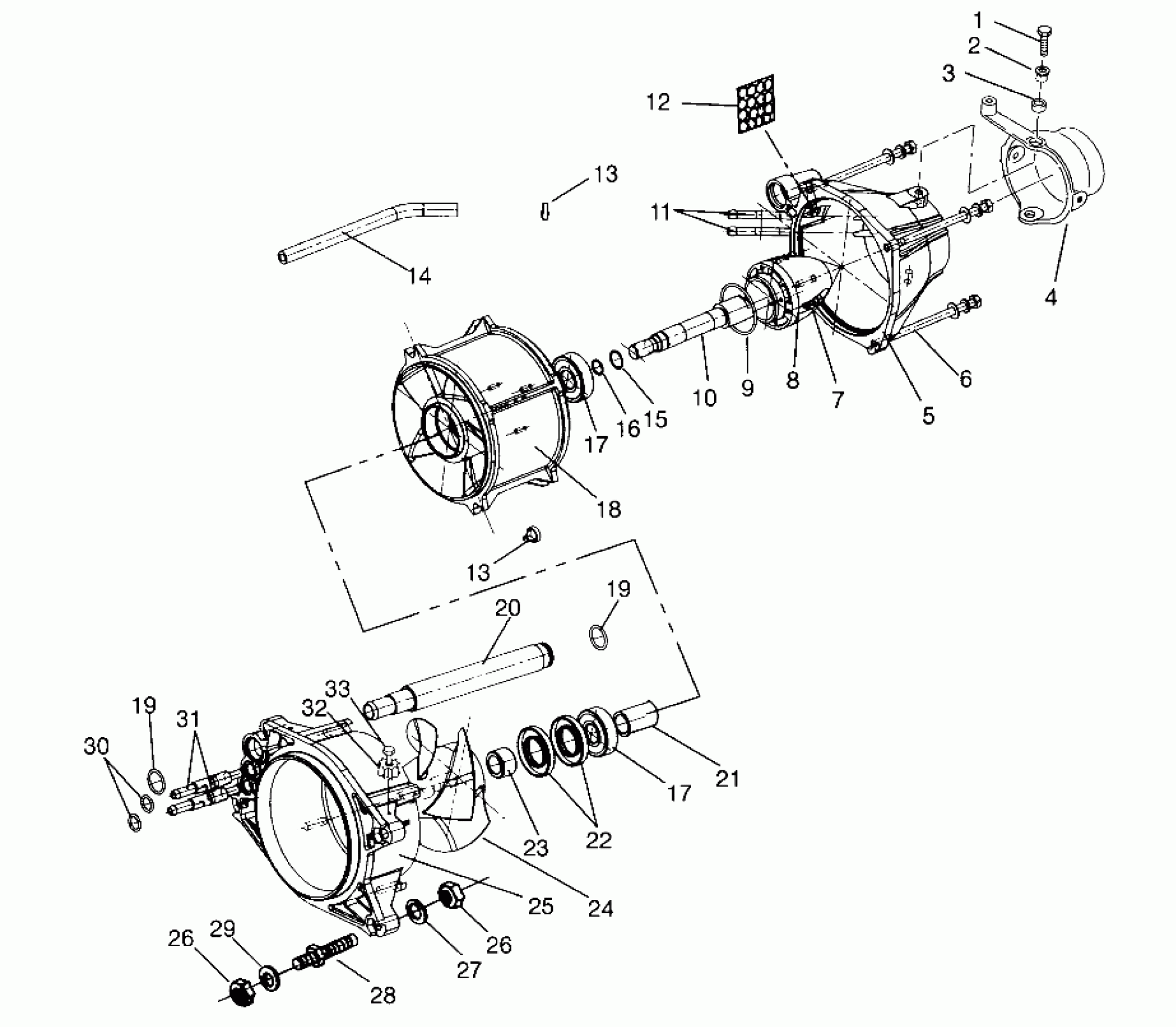

Polaris SL 650 - B954058 PROPULSION SL 650 B954058 (4930483048B002) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7515366

Unavailable

2

Collar

5130938

Unavailable

3

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

4

NOZZLE,STRG.

5131048

$40.49

5

NOZZLE,PUMP

1350008

Unavailable

6

BOLT

7515377

$11.90

7

SCREW,S.S.,ALLEN(10)

7512090

$1.75

8

Cone, Pump

5431519

Unavailable

9

O-RING(10)

5410819

$0.79

10

SHAFT, STUB Substituted by 5132674

5020697

$47.62

11

TUBE,SIPHON,BILGE

5010293

$29.52

12

SCREEN,ENG.INLET

5431523

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

HOSE,WATER

8450054-100

Unavailable

15

O-RING(10)

5410818

$0.79

16

O-RING,(10)

5410817

Unavailable

17

Bearing

3514008

Unavailable

17

Bearing

3514008

Unavailable

18

STATOR,PUMP (Mach.)

5130983

Unavailable

19

O RING,(10)

5410735

$0.79

19

O RING,(10)

5410735

$0.79

20

PIPE,WATER,ENGINE

5431655

Unavailable

21

Spacer

5010294

Unavailable

22

SEAL,BRG,STATOR

3610043

Unavailable

23

Spacer, Impeller

5010295

Unavailable

24

IMPELLER,94-650

5131056

Unavailable

25

HOUSING,PUMP,('94) Substituted by 5131815 (Mach.)

5130982

Unavailable

26

NUT,HEX,S.S.(10)

7542455

Unavailable

26

NUT,HEX,S.S.(10)

7542455

Unavailable

27

WASHER, FLAT(10)

7555841

Unavailable

28

STUD,MTG.PUMP Substituted by 5020880

5020804

Unavailable

29

WASHER,FLAT, S.S.(10)

7555853

$2.62

30

SEAL,SIPHON TUBE

5411016

Unavailable

31

PIPE,WATER BILGE (Flanged)

5020835

$49.59

32

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

33

SCREW(10)

7522019

$0.95
