HULL and BODY ASSEMBLY SL 650 B954058 (4930483048A006)

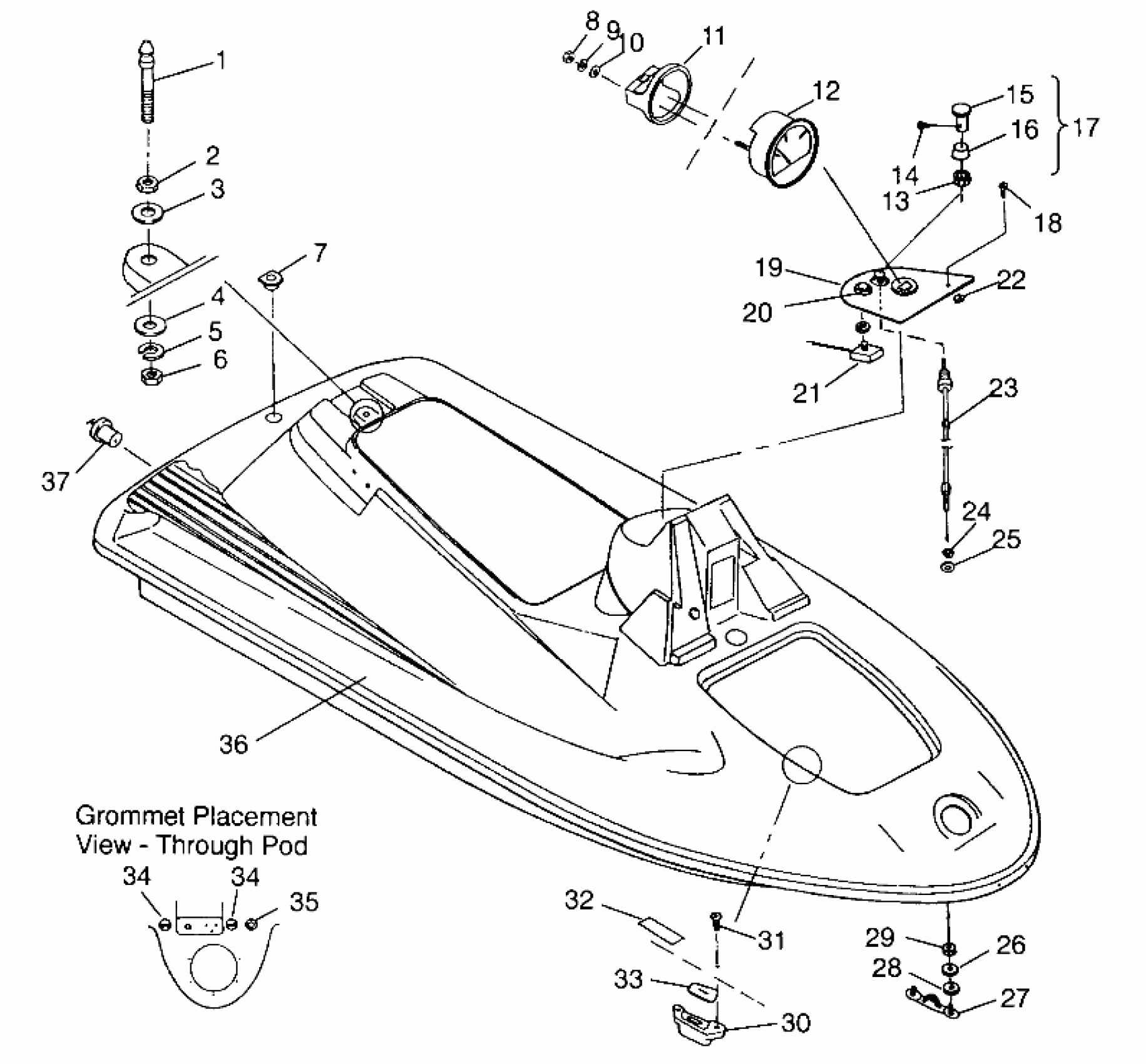

Polaris SL 650 - B954058 HULL and BODY ASSEMBLY SL 650 B954058 (4930483048A006) Diagram
#
1
PLUNGER,LATCH
5020753
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
3
WASHER, FLAT(10)
7555845
Unavailable
4
WASHER, FLAT(10)
7555846
$5.59
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
6
NUT,HEX,S.S.(10)
7542455
Unavailable
7
EYELET,R.PURP.VELVET
5431404-194
Unavailable
8
NUT, BRASS(10)
7541933
$4.99
9
WASHER, LOCK,(S.S.)(10)
7555868
Unavailable
10
WASHER, FLAT(10)
7555869
Unavailable
11
BRKT,FUELGAUGE MTG.
5222995
Unavailable
12
GAUGE,FUEL
3280169
Unavailable
13
NUT
2080002
Unavailable
14
Screw
2080005
Unavailable
15
KNOB,CHOKE
2080004
Unavailable
16
COVER
2080003
Unavailable
17
KIT, CHOKE, (PWC) (Incl. 15-13)
2200428
Unavailable
18
SCREW, SS.(10)
7512047
Unavailable
19
PANEL,INST,RUB.RED
5431725-182
Unavailable
20
NUT,WATERPROOF,STARTER SWITCH
7080513
Unavailable
21
SWITCH,STARTER
4110163
Unavailable
22
CLIP,'U',S.S.(10)
7670077
Unavailable
23
CABLE, CHOKE (Incl. 24-25)
7080448
Unavailable
24
NUT
2010125
Unavailable
25
WASHER
2010126
Unavailable
26
WASHER,RUBBER(10)
7555870
Unavailable
27
STRAP, BOW
2670150
Unavailable
28
WASHER, FLAT, S.S.(10)
7555839
Unavailable
29
NUT,NYLOK,S.S.(10)
7542133
Unavailable
30
STOP,DOOR SUPPORT
5431960
Unavailable
31
SCREW(10)
7512049
Unavailable
32
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
33
SEAL,DOOR SUPPORT
5810571
Unavailable
34
GROMMET,BOOT
5410989
Unavailable
34
GROMMET,BOOT
5410989
Unavailable
35
GROMMET,BOOT
5410990
Unavailable
36
BOAT BODY ASM. [No Longer Available] (Incl. 2, 4-7, Housing Shaft & Thru-Hull)
2631618
Unavailable
37
PLUG, BAIL
7010046
Unavailable
