Description

Price

1

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

2

SCREW(10)

7512060

Unavailable

3

SCREEN, INTAKE

5222779

Unavailable

4

GASKET,INT.SCREEN

5410687

Unavailable

5

INTAKE ASM,LOW,W/OIL FITTING

1253129

Unavailable

6

BOLT(10)

7516801

Unavailable

7

WASHER, LOCK(10)

7552613

Unavailable

8

GASKET,ARRESTOR/CARB.

5830013

Unavailable

9

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

10

BOLT, S.S.(10)

7515121

Unavailable

11

WASHER, LOCK, S.S.(10)

7555838

Unavailable

12

BOLT(10)

7515127

Unavailable

13

CLAMP, HOSE, S.S.(10)

7080457

Unavailable

14

DUCT,INLET,AIR(SHORT) (Short)

5432063

Unavailable

15

DUCT,INTAKE,(HULL AIR)

5432065

Unavailable

16

RETAINER,FUEL VENT(10)

5521342

Unavailable

17

RETAINER,VENT OIL(10)

5521339

Unavailable

18

SEAL,AIR INT.DUCT

5410650

Unavailable

19

RIVET(50)

7621479

$1.99

20

Check Valve (See Pg. , Ref. )

-------

Unavailable

21

Vinly Pipe (See Pg. , Ref. )

-------

Unavailable

22

T-CLIP(10)

7080471

$3.59

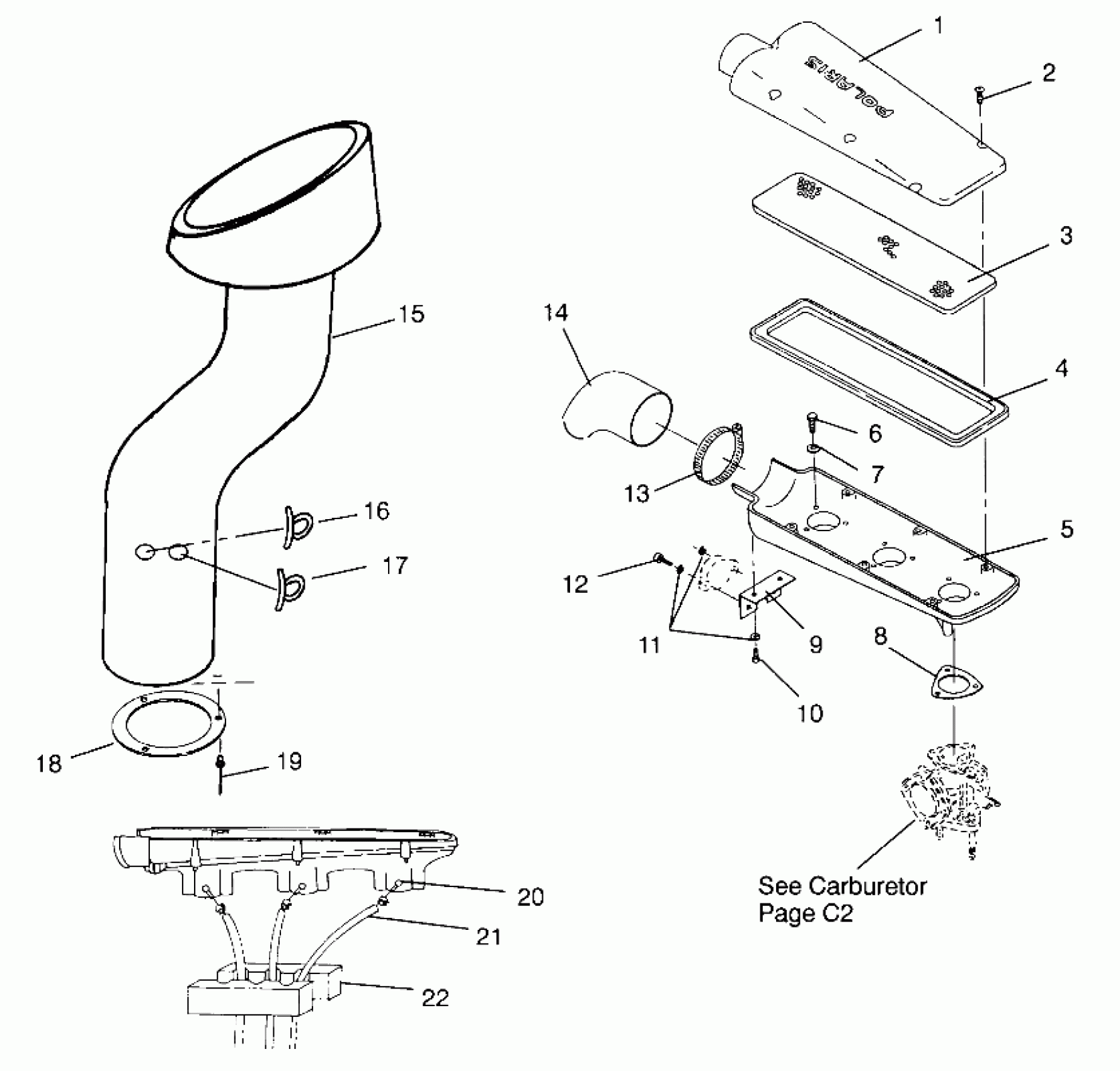

Polaris SL 650 - B954058 AIR VENT SL 650 B954058 (4930483048B006) Diagram

INTAKE,UPPER MANIFOLD

SCREW(10)

SCREEN, INTAKE

GASKET,INT.SCREEN

INTAKE ASM,LOW,W/OIL FITTING

BOLT(10)

WASHER, LOCK(10)

GASKET,ARRESTOR/CARB.

BRKT, FUEL PUMP,WELD.

BOLT, S.S.(10)

WASHER, LOCK, S.S.(10)

BOLT(10)

CLAMP, HOSE, S.S.(10)

DUCT,INLET,AIR(SHORT) (Short)

DUCT,INTAKE,(HULL AIR)

RETAINER,FUEL VENT(10)

RETAINER,VENT OIL(10)

SEAL,AIR INT.DUCT

RIVET(50)

Check Valve (See Pg. , Ref. )

Vinly Pipe (See Pg. , Ref. )

T-CLIP(10)
