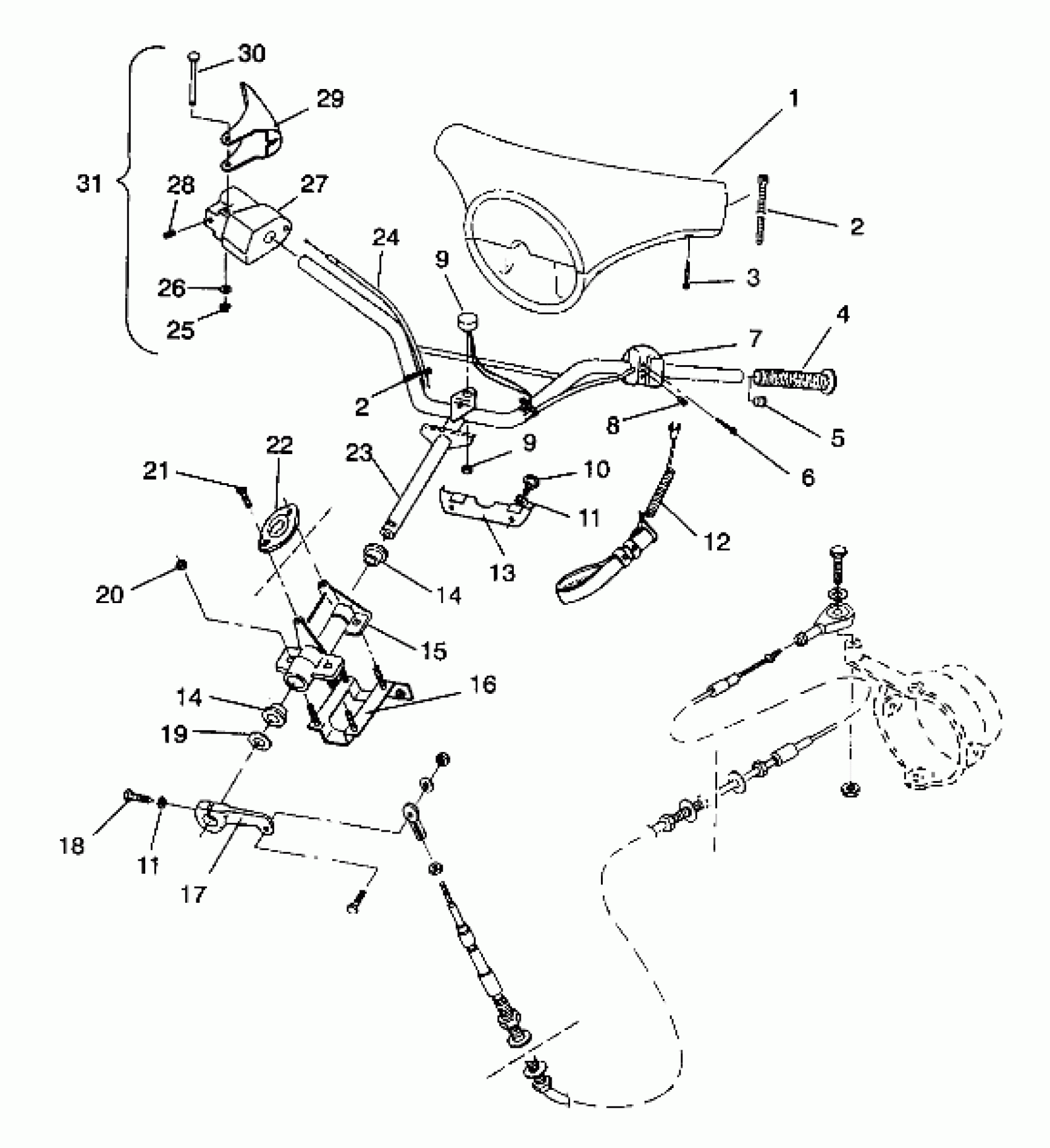

Polaris SL 650 - B944058 STEERING ASSEMBLY SL 650 B944058 (4926992699009A) Diagram

#

Description
Price

1

COVER,H'BAR,PURPLE Substituted by 5431629-214

5431629-194

Unavailable

2

CABLE, TIE

7080346

Unavailable

2

CABLE, TIE

7080346

Unavailable

3

SCREW, S.S.(10)

7511882

Unavailable

4

GRIP,H'BAR,BLK.

5410638-070

Unavailable

5

CAPLUG(10)

7080467

Unavailable

6

SCREW(10)

7516602

Unavailable

7

SWITCH,STOP/TETHER

4110161

Unavailable

8

SCREW, S.S.(10)

7516601

Unavailable

9

ALARM,HI-TEMP/LOW OIL

4040048

Unavailable

9

ALARM,HI-TEMP/LOW OIL

4040048

Unavailable

10

BOLT, SHOULDER(10) Substituted by 7515387

7515371

Unavailable

11

WASHER, LOCK, S.S.(10)

7552610

Unavailable

11

WASHER, LOCK, S.S.(10)

7552610

Unavailable

12

CORD, TETHER Substituted by 7080675

7080518

Unavailable

13

STOP, STEERING

5222677

Unavailable

14

BUSHING,STRG.SUPPORT

5431382

Unavailable

14

BUSHING,STRG.SUPPORT

5431382

Unavailable

15

SUPPORT,STRG.HUB,BLK. Substituted by 5131509

5130974-067

Unavailable

16

PLATE, BOLT

1060101

Unavailable

17

ARM,STEERING,BLK. Substituted by 5131441

5130958-067

Unavailable

18

BOLT, S.S.(10)

7515375

Unavailable

19

BUSH.(10)

7555875

Unavailable

20

NUT, HEX, S.S.(10)

7542335

Unavailable

21

SCREW,S.S.(10)

7512074

Unavailable

22

BRKT, RECEIVER

5431427

Unavailable

23

POST,STEERING,W/H'BAR. Substituted by 1823175

1823160

Unavailable

24

CABLE, THROTTLE

7080449

Unavailable

25

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

26

WASHER, FLAT, S.S.(10)

7555840

$3.35

27

BLOCK,THROTTLE CONTROL

5431396

Unavailable

28

SCREW, SET, S.S.(10)

7515115

Unavailable

29

LEVER,THROTTLE CONTROL

5431397

Unavailable

30

Pin, Retaining

7661628

Unavailable

31

THROTTLE CONTROL ASM. (Incl. 25-30)

2010122

Unavailable
