Description

Price

1

SEAT ASM,PURP.VELVET,(PWC)

2681725-194

Unavailable

2

STRAP,SEAT,PURP.VELVET,(PWC) Substituted by 2690095-194

2690076-194

Unavailable

3

SCREW(10) Substituted by 7512052

7512055

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

NUT, WELD

7541935

Unavailable

6

SHIELD,SEAT,LH,PURP.VELVET Substituted by 5432124-194

5431612-194

Unavailable

6

SHIELD,SEAT,RH,PURP.VELVET Substituted by 5432125-194

5431613-194

Unavailable

7

COVER,SEAT,PUR.VEL.

2681726-194

Unavailable

8

CLIP,SEAT RETAINER

5222694

Unavailable

9

RIVET(50)

7661834

$5.99

10

RIVET(50)

7621479

$1.99

11

PLATE, RETAINER

5211347

Unavailable

12

DUCT, AIR OUTLET

5431369

Unavailable

13

BOLT, SS.(10)

7515123

Unavailable

14

WASHER, LOCK, S.S.(10)

7555838

Unavailable

15

WASHER, FLAT, S.S.(10)

7555839

Unavailable

16

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

17

PLATE,SEATBASE LATCH

5211314

Unavailable

18

SEAL, SEAT Substituted by 2200760

5521288

Unavailable

19

SPRING,SEATBASE LATCH

7042036

Unavailable

20

HANDLE, SEAT

5431358

Unavailable

21

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

22

NUT, TEE(10)

7542137

Unavailable

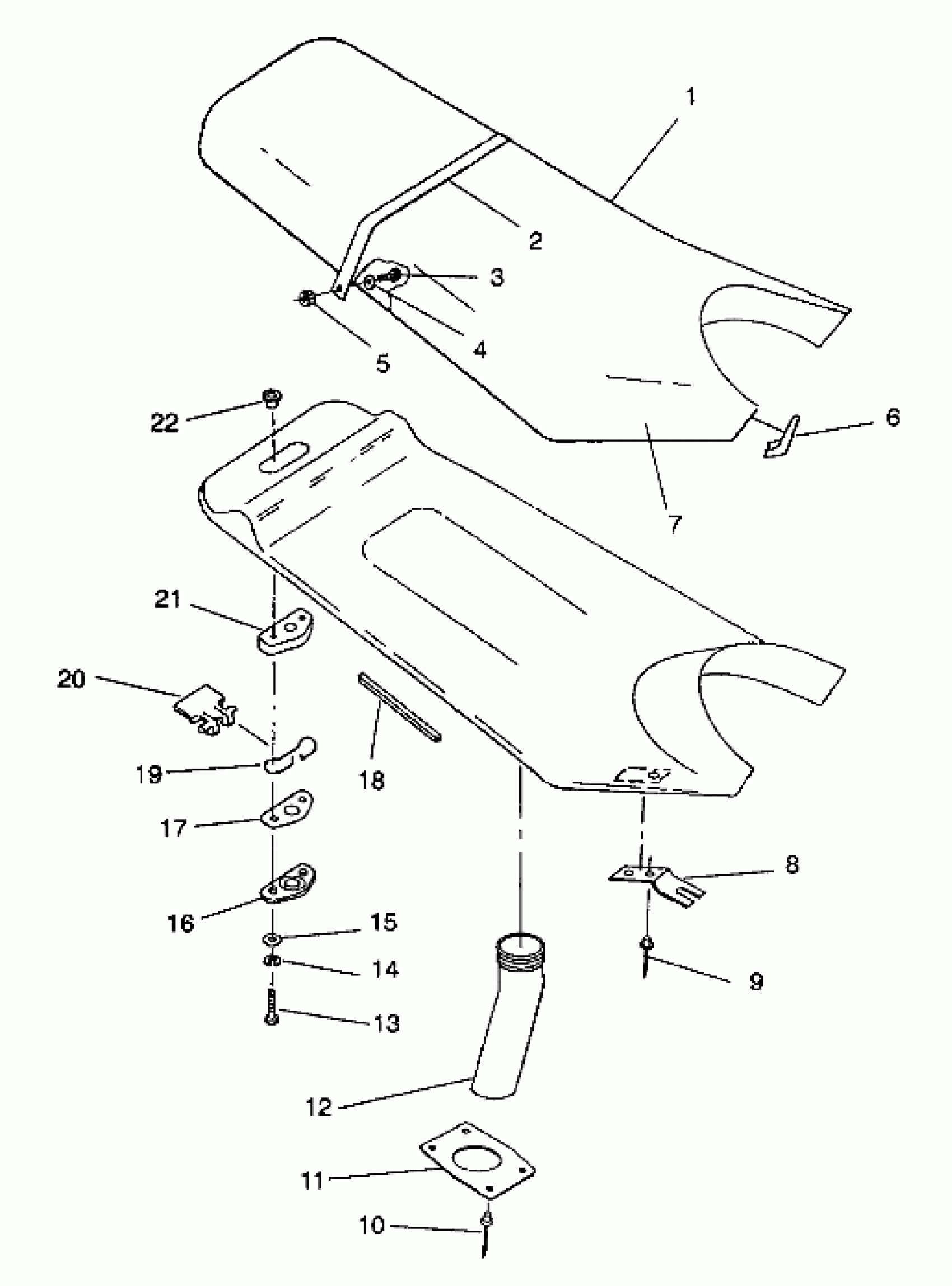

Polaris SL 650 - B944058 SEAT ASSEMBLY SL 650 B944058 (4926992699007A) Diagram

SEAT ASM,PURP.VELVET,(PWC)

STRAP,SEAT,PURP.VELVET,(PWC) Substituted by 2690095-194

SCREW(10) Substituted by 7512052

WASHER, FLAT, S.S.(10)

NUT, WELD

SHIELD,SEAT,LH,PURP.VELVET Substituted by 5432124-194

SHIELD,SEAT,RH,PURP.VELVET Substituted by 5432125-194

COVER,SEAT,PUR.VEL.

CLIP,SEAT RETAINER

RIVET(50)

RIVET(50)

PLATE, RETAINER

DUCT, AIR OUTLET

BOLT, SS.(10)

WASHER, LOCK, S.S.(10)

WASHER, FLAT, S.S.(10)

PLATE,LATCH,BOT.SEAT BASE

PLATE,SEATBASE LATCH

SEAL, SEAT Substituted by 2200760

SPRING,SEATBASE LATCH

HANDLE, SEAT

PLATE,TOP,SEATBASE LATCH

NUT, TEE(10)
