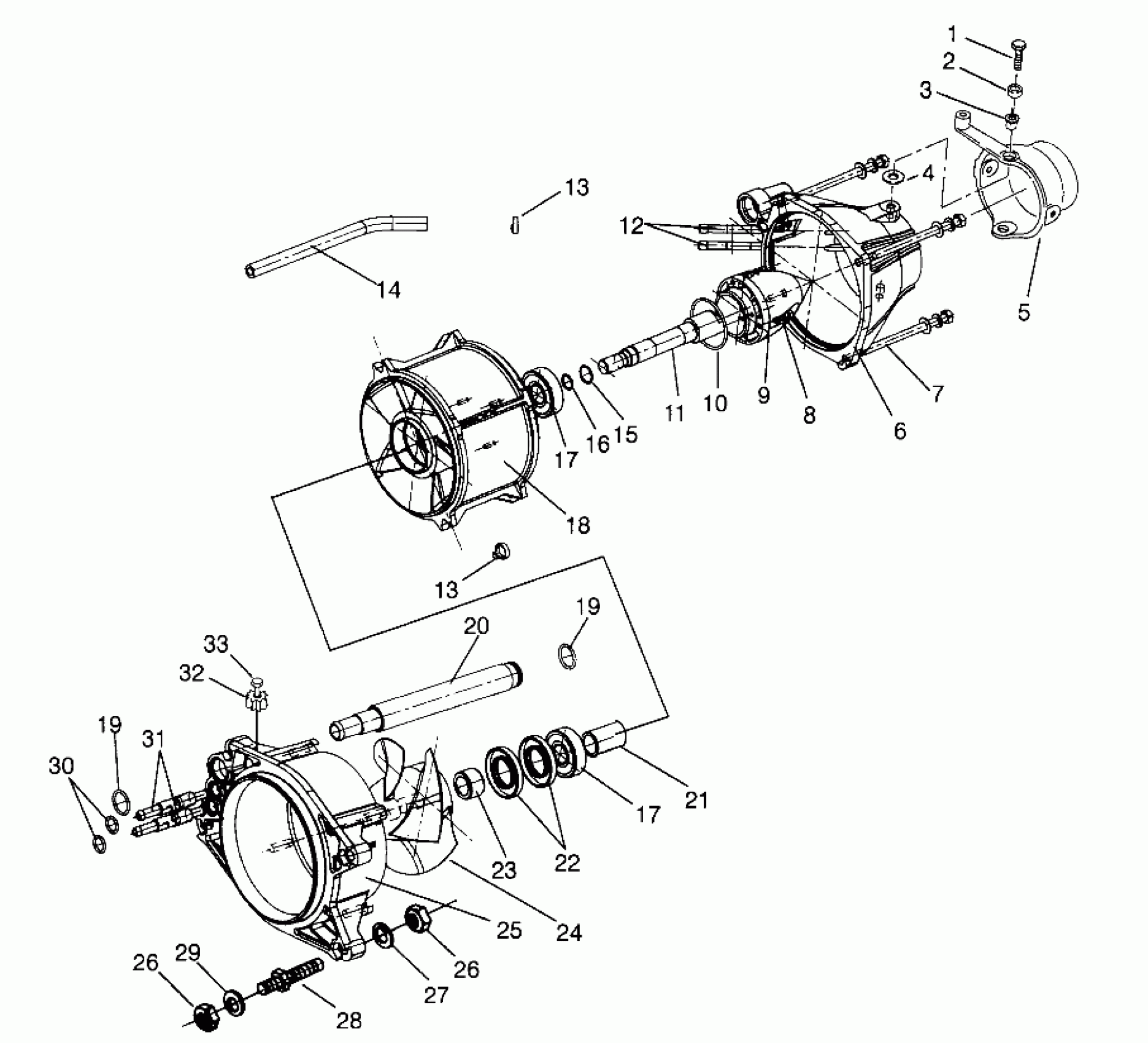

Polaris SL 650 - B944058 PROPULSION - B944058 (4926992699012A) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7515366

Unavailable

2

Collar

5130938

Unavailable

3

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

4

WASHER, FRICTION

3240022

Unavailable

5

NOZZLE,STRG.

5131048

$40.49

6

NOZZLE,PUMP

1350008

Unavailable

7

BOLT

7515377

$11.90

8

SCREW(10)

7512064

Unavailable

9

Cone, Pump

5431519

Unavailable

10

O-RING(10)

5410819

$0.79

11

SHAFT, STUB Substituted by 5132674

5020697

$47.62

12

TUBE,SIPHON,BILGE

5010293

$29.52

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

HOSE,WATER Substituted by 8450054-100

8450054-23

Unavailable

15

O-RING(10)

5410818

$0.79

16

O-RING,(10)

5410817

Unavailable

17

Bearing

3514008

Unavailable

17

Bearing

3514008

Unavailable

18

STATOR,PUMP (Mach.)

5130983

Unavailable

19

O RING,(10)

5410735

$0.79

19

O RING,(10)

5410735

$0.79

20

PIPE,WATER,ENGINE

5431655

Unavailable

21

Spacer

5010294

Unavailable

22

SEAL,BRG,STATOR

3610043

Unavailable

23

Spacer, Impeller

5010295

Unavailable

24

IMPELLER,94-650

5131056

Unavailable

25

HOUSING,PUMP,('94) Substituted by 5131815 (Mach.)

5130982

Unavailable

26

NUT,HEX,S.S.(10)

7542455

Unavailable

26

NUT,HEX,S.S.(10)

7542455

Unavailable

27

WASHER, FLAT(10)

7555841

Unavailable

28

STUD,PUMP MTG. Substituted by 5020804

5020614

Unavailable

29

WASHER,FLAT, S.S.(10)

7555853

$2.62

30

O-RING (10)

5410734

Unavailable

31

PIPE,WATER,BILGE

5020698

$28.14

32

ANODE,ZINC

5630508

Unavailable

33

SCREW,S.S.(10)

7512073

Unavailable
