FUEL TANK SL 650 B944058 (4926992699005A)

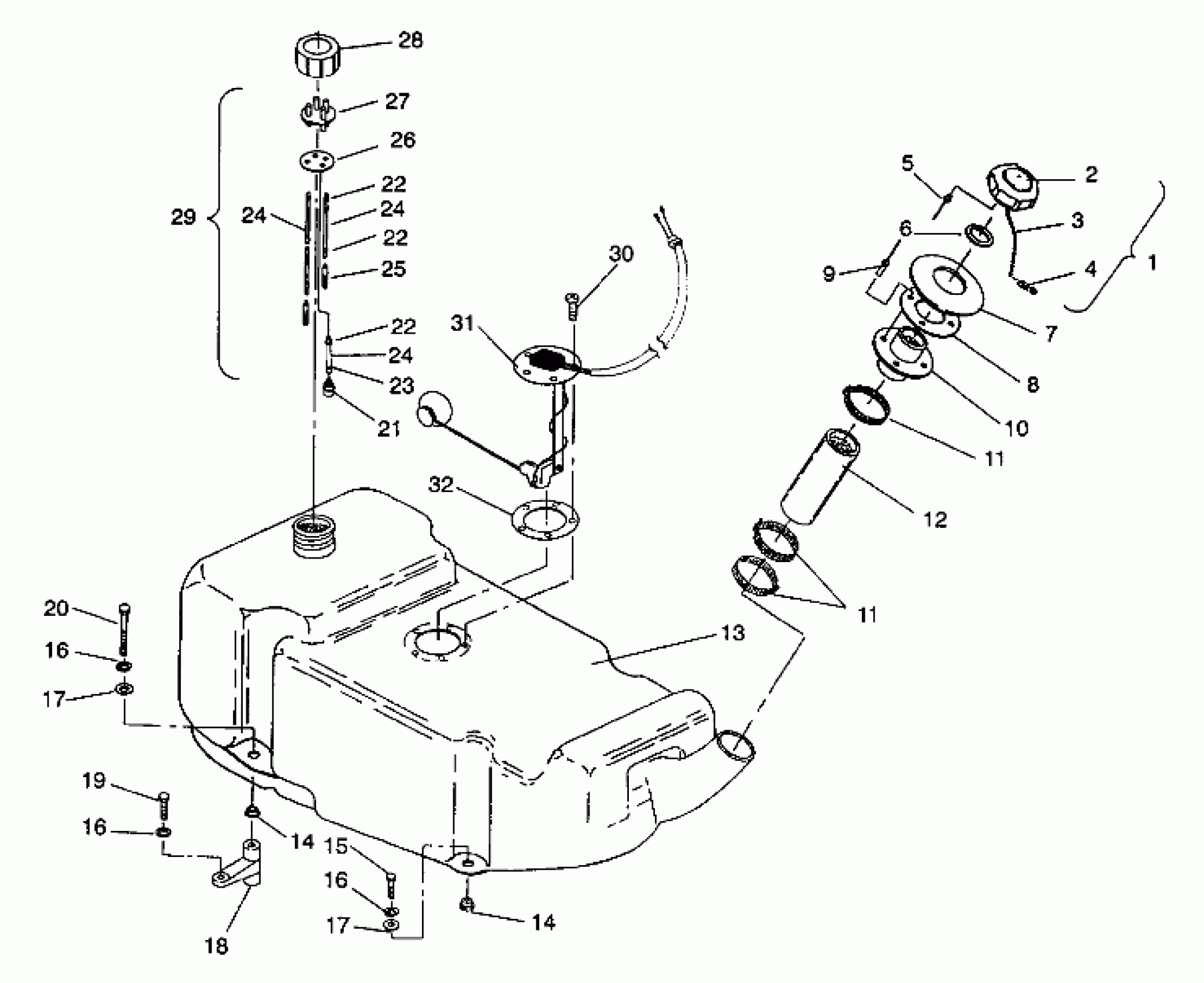

Polaris SL 650 - B944058 FUEL TANK SL 650 B944058 (4926992699005A) Diagram
#
1
CHAIN/FUELCAP ASM (Incl. 2-4)
2653004-133
Unavailable
2
CAP,FUEL
2511195-070
Unavailable
3
CHAIN Substituted by 7080710
7080440
Unavailable
4
Coupling
7080442
Unavailable
5
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
6
Gasket, Fuel Cap
5810512
$9.11
7
DESC NOT_AVAILABLE
5410640-170
Unavailable
8
SEAL, FUEL INLET
5810714
Unavailable
9
RIVET(50)
7621479
$1.99
10
INLET,FUEL,WATERCRAFT
5431343
Unavailable
11
CLAMP, HOSE(10)
7080439
$9.59
11
CLAMP, HOSE(10)
7080439
$9.59
12
HOSE, FILL FUEL
5410637
Unavailable
13
TANK,FUEL,W/SEND.UNIT
2511237
Unavailable
14
BUSHING,FUEL,TANK(10)
5333114
Unavailable
14
BUSHING,FUEL,TANK(10)
5333114
Unavailable
15
BOLT, S.S.
7515365
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
17
WASHER, S.S.(10)
7555834
Unavailable
17
WASHER, S.S.(10)
7555834
Unavailable
18
SUPPORT, FUEL TANK
5630414
Unavailable
19
BOLT(10)
7515374
Unavailable
20
BOLT, S.S.(10)
7515373
Unavailable
21
VALVE,CHECK,2-WAY
7051012
Unavailable
22
RING, COMPRESSION(10)
7080402
$1.60
22
RING, COMPRESSION(10)
7080402
$1.60
22
RING, COMPRESSION(10)
7080402
$1.60
23
CLAMP, HOSE, S.S.(10)
7080476
$6.39
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUELPICKUP,W/STRAINER
7052037
$12.94
26
GASKET,DROPTUBE HOLDER
5810511
Unavailable
27
HOLDER, DROPTUBE
5431347
Unavailable
28
RETAINER,DROPTUBE HOLDER Substituted by 5020801
5431346
Unavailable
29
HOLDER ASM,DROP TUBE
2520123
Unavailable
30
SCREW(10)
7512056
Unavailable
31
SENDER ASM,FUEL LEVEL
2410032
Unavailable
32
GASKET,SENDING UNIT
5810858
$74.99
