Description

Price

1

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

2

SCREW(10)

7512060

Unavailable

3

SCREEN, INTAKE

5222779

Unavailable

4

GASKET,INT.SCREEN

5410687

Unavailable

5

MANIFOLD,INTAKE,LOW.

5131020

Unavailable

6

BOLT(10)

7516801

Unavailable

7

WASHER, LOCK(10)

7552613

Unavailable

8

GASKET,ARRESTOR/CARB.

5830013

Unavailable

9

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

10

BOLT, S.S.(10)

7515121

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

WASHER, LOCK, S.S.(10)

7555838

Unavailable

13

BOLT(10)

7515127

Unavailable

14

BOLT(10)

7515129

Unavailable

15

CLAMP, HOSE, S.S.(10)

7080457

Unavailable

16

DUCT,AIR INLET Substituted by 5432063

5431867

Unavailable

17

BOLT, S.S.(10)

7512041

Unavailable

18

WASHER, FLAT, S.S.(10)

7555837

Unavailable

19

SEAL,AIR INT.DUCT

5410650

Unavailable

20

NUT, WELL(10)

7541901

$6.39

21

DUCT,AIR INTAKE Substituted by 5432065

5431737

Unavailable

22

Grommet, Vent

5410682

Unavailable

23

RETAINER, VENT HOSE

5521266

Unavailable

24

RIVET(50)

7621479

$1.99

25

CLAMP-HOSE, 1.750-SS

7080560

$11.19

25

CLAMP-HOSE, 1.750-SS

7080560

$11.19

26

HOSE,DRAIN,AIR INTAKE DUCT

5410873

Unavailable

27

FITTING,THRU-HULL

1060113

Unavailable

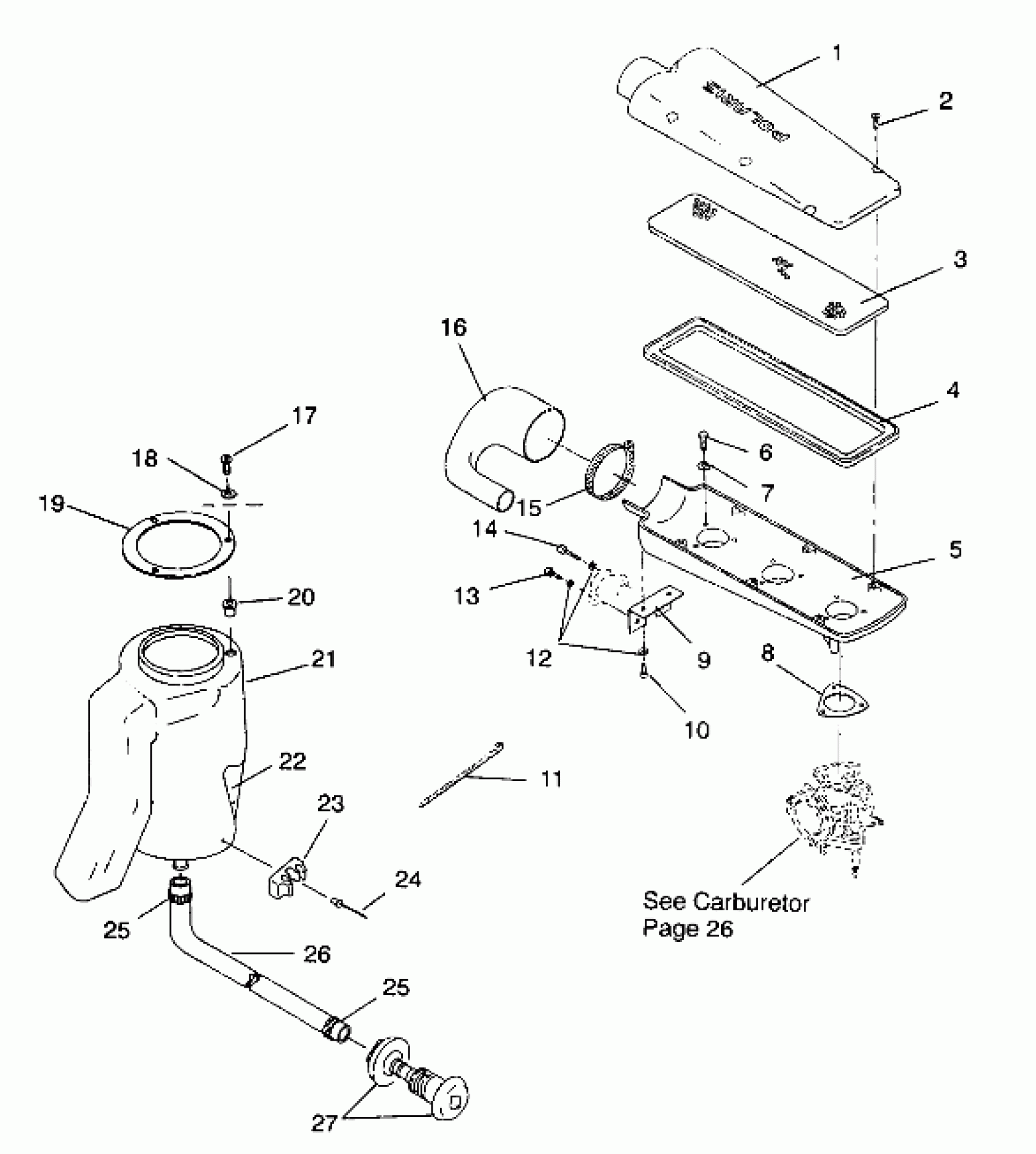

Polaris SL 650 - B944058 AIR VENT SL 650 B944058 (4926992699016A) Diagram

INTAKE,UPPER MANIFOLD

SCREW(10)

SCREEN, INTAKE

GASKET,INT.SCREEN

MANIFOLD,INTAKE,LOW.

BOLT(10)

WASHER, LOCK(10)

GASKET,ARRESTOR/CARB.

BRKT, FUEL PUMP,WELD.

BOLT, S.S.(10)

CABLE-TIE,DIA12-50MM,WTHR-RES.

WASHER, LOCK, S.S.(10)

BOLT(10)

BOLT(10)

CLAMP, HOSE, S.S.(10)

DUCT,AIR INLET Substituted by 5432063

BOLT, S.S.(10)

WASHER, FLAT, S.S.(10)

SEAL,AIR INT.DUCT

NUT, WELL(10)

DUCT,AIR INTAKE Substituted by 5432065

Grommet, Vent

RETAINER, VENT HOSE

RIVET(50)

CLAMP-HOSE, 1.750-SS

CLAMP-HOSE, 1.750-SS

HOSE,DRAIN,AIR INTAKE DUCT

FITTING,THRU-HULL
