STEERING ASSEMBLY SL 650 / B934058 (4924732473009A)

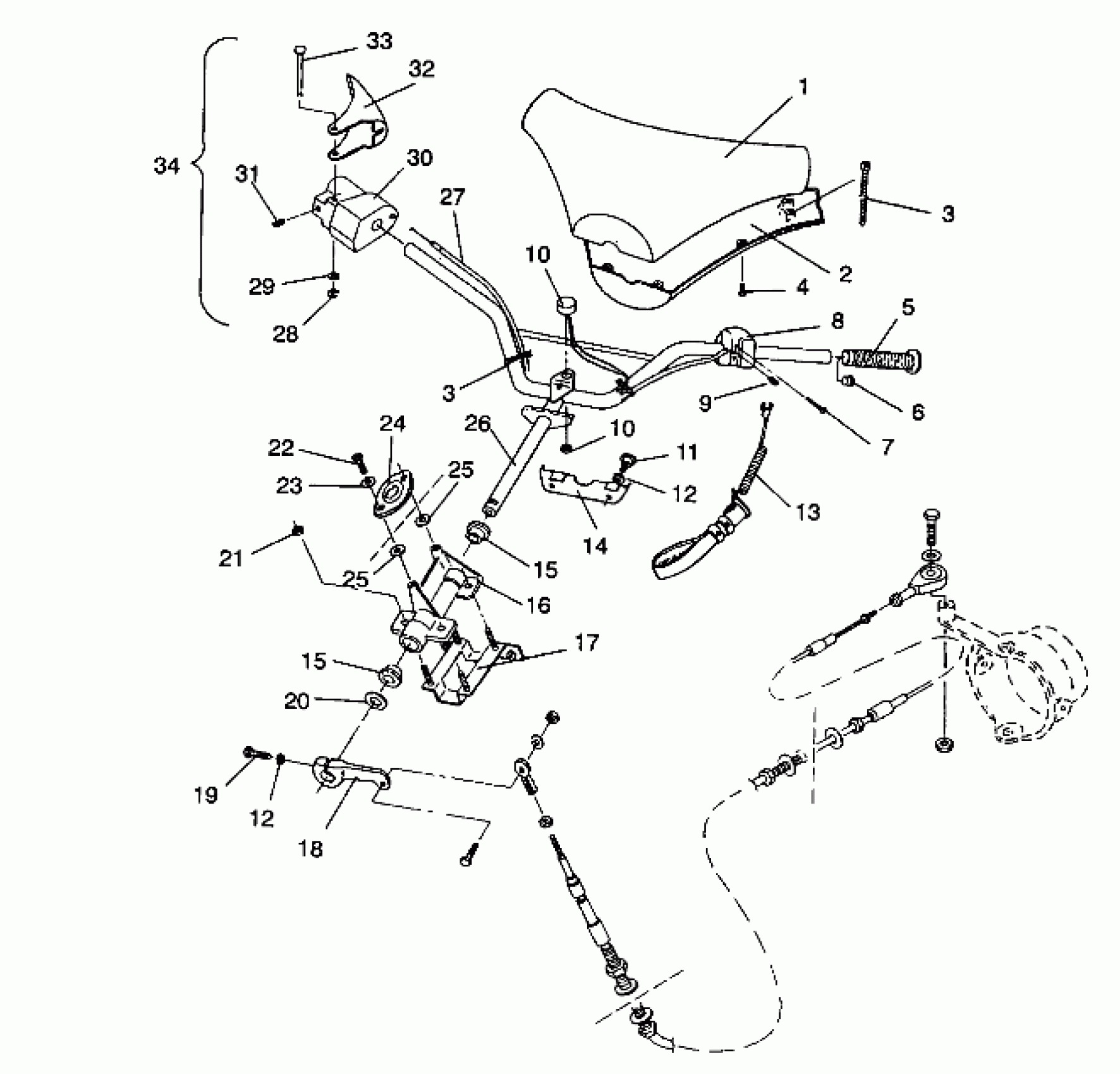

Polaris SL 650 - B934058 STEERING ASSEMBLY SL 650 / B934058 (4924732473009A) Diagram
#
1
COVER,TOP,H'BAR
5431376-157
Unavailable
3
CABLE, TIE
7080346
Unavailable
3
CABLE, TIE
7080346
Unavailable
4
SCREW(10)
7511870
Unavailable
5
GRIP,H'BAR,BON.BLUE
5410638-157
Unavailable
6
CAPLUG(10)
7080467
Unavailable
7
SCREW(10)
7516602
Unavailable
8
SWITCH,KILL/TETHER
4110121
Unavailable
8
SWITCH,KILL/TETHER
4110121
Unavailable
9
SCREW, S.S.(10)
7516601
Unavailable
10
INDICATOR'OILTEMP'
4040030
Unavailable
10
INDICATOR'OILTEMP'
4040030
Unavailable
11
BOLT, SHOULDER(10) Substituted by 7515387
7515371
Unavailable
12
WASHER, LOCK, S.S.(10)
7552610
Unavailable
12
WASHER, LOCK, S.S.(10)
7552610
Unavailable
13
CORD, TETHER Substituted by 7080675
7080518
Unavailable
14
STOP, STEERING
5222677
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
16
SUPPORT,HUB,STRG. Substituted by 5130974-067
5130832-067
Unavailable
17
PLATE, BOLT
1060101
Unavailable
18
ARM,STEERING,BLK. Substituted by 5131441
5130958-067
Unavailable
19
BOLT, S.S.(10)
7515375
Unavailable
20
BUSH.(10)
7555875
Unavailable
21
NUT, HEX, S.S.(10)
7542335
Unavailable
22
SCREW, S.S.(10)
7512051
Unavailable
23
WASHER, FLAT, S.S.(10)
7555837
Unavailable
24
BRKT, RECEIVER
5431427
Unavailable
25
WASHER, FLAT(10)
7555861
Unavailable
25
WASHER, FLAT(10)
7555861
Unavailable
26
POST,STEERING,W/H'BAR. Substituted by 1823175
1823160
Unavailable
27
CABLE, THROTTLE
7080449
Unavailable
28
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
29
WASHER, FLAT, S.S.(10)
7555840
$3.35
30
BLOCK,THROTTLE CONTROL
5431396
Unavailable
31
SCREW, SET, S.S.(10)
7515115
Unavailable
32
LEVER,THROTTLE CONTROL
5431397
Unavailable
33
Pin, Retaining
7661628
Unavailable
34
THROTTLE CONTROL ASM. (Incl. 28-33)
2010122
Unavailable
