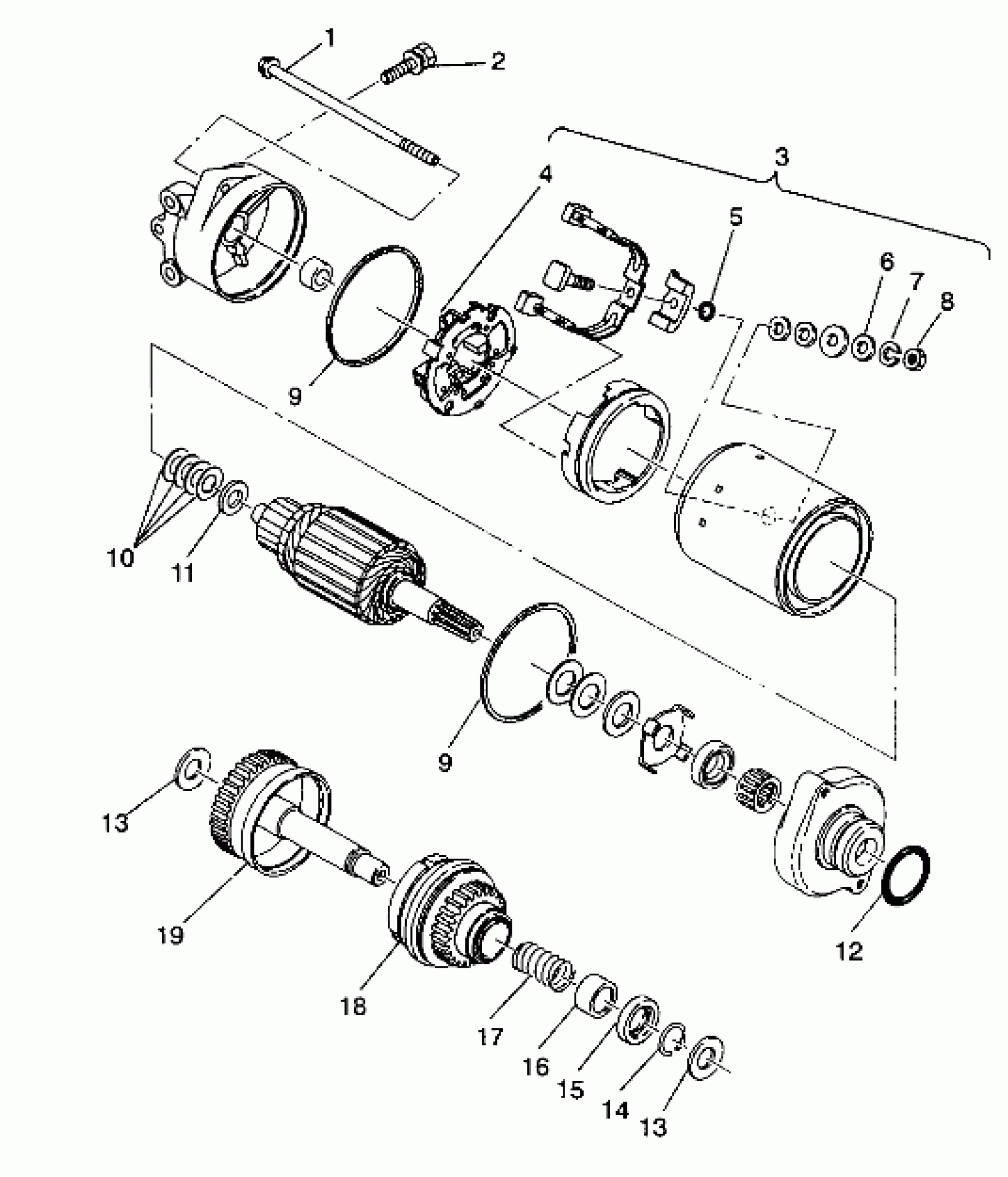

Polaris SL 650 - B934058 STARTING MOTOR ASSEMBLY SL 650 / B934058 (4924732473028A) Diagram

#

Description
Price

1

Bolt, Through

3240113

$8.73

2

BOLT, FLANGE

3240062

Unavailable

3

BRUSH, COMPL.

3240115

Unavailable

4

Spring, Brush

3240111

$1.38

5

O-RING

3084408

Unavailable

6

WASHER(10)

3240119

Unavailable

7

WASHER, SPRING(10)

3240117

Unavailable

8

NUT(10)

3240116

Unavailable

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

WASHER, THRUST(10)

3240118

Unavailable

11

Washer, Thrust

3240112

$0.32

12

O-Ring

3240114

$6.99

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

14

SNAP RING

3240126

$0.32

15

Stopper

3240125

Unavailable

16

Cover

3240123

$3.81

17

SPRING

3240124

Unavailable

18

GEAR ASM. Substituted by 3240120

3240122

$292.59

19

GEAR ASM. Substituted by 4060119

3240120

$292.59

19

MOTOR ASM,STARTER

3240110

Unavailable

19

SHAFT COMPL.

3240121

Unavailable
