PROPULSION SL 650 / B934058 (4924732473013A)

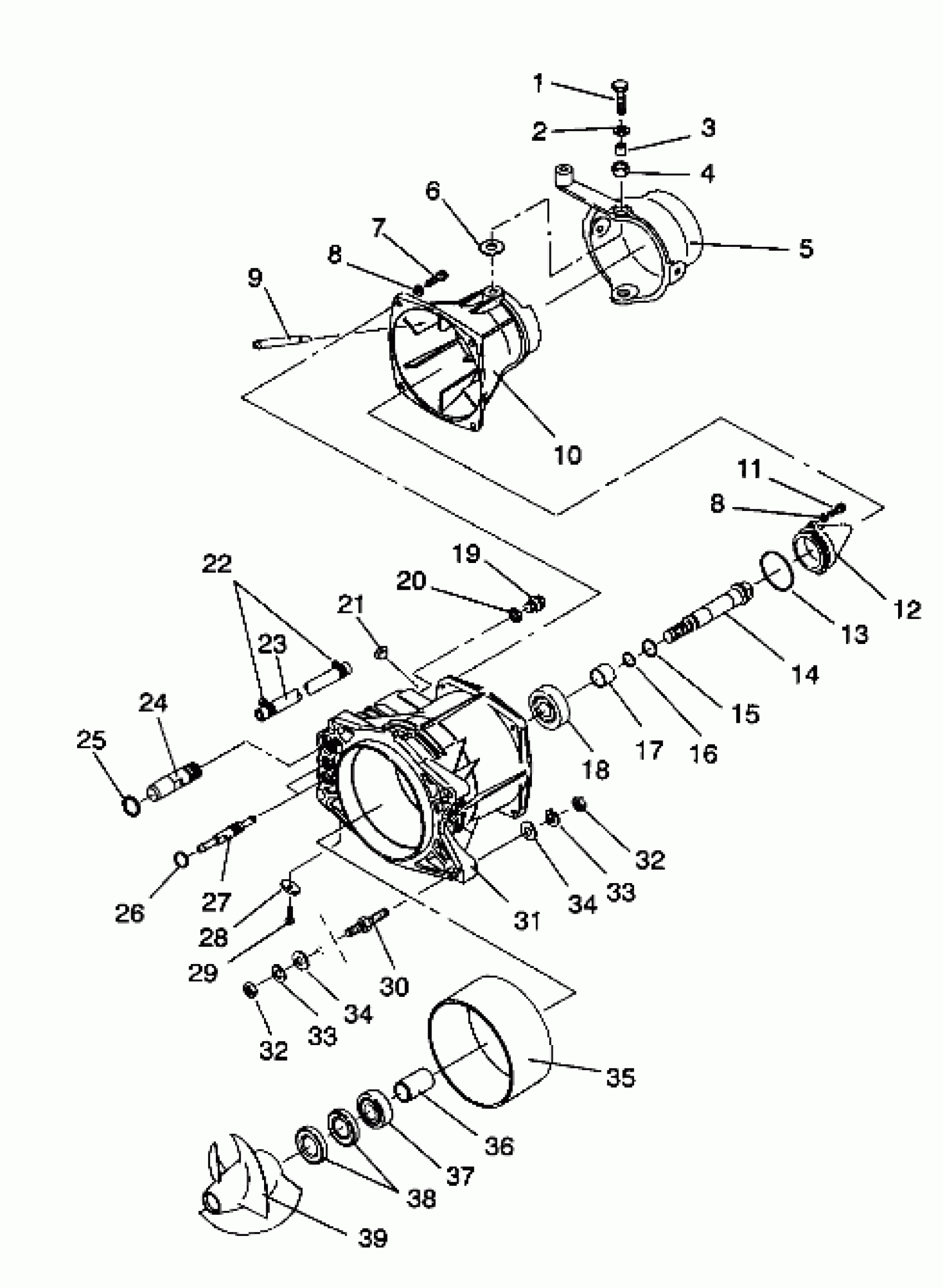

Polaris SL 650 - B934058 PROPULSION SL 650 / B934058 (4924732473013A) Diagram
#
1
BOLT
3240185
Unavailable
2
WASHER
3240186
Unavailable
3
COLLAR
3240021
Unavailable
4
BEARING, SLEEVE
3240019
Unavailable
5
NOZZLE,STEERING(93-SL650) (Incl. 4)
3240140
Unavailable
6
WASHER, FRICTION
3240022
Unavailable
7
BOLT(10)
7516717
Unavailable
8
WASHER, LOCK(10)
7552613
Unavailable
8
WASHER, LOCK(10)
7552613
Unavailable
9
PIPE, WATER
3240013
Unavailable
10
NOZZLE, OUTLET (Incl. 9)
3240012
Unavailable
11
BOLT(10)
7516718
Unavailable
12
CONE, TAIL
3240025
Unavailable
13
O-RING,TAIL CONE
3240026
Unavailable
14
SHAFT, STUB
3240139
Unavailable
15
O-RING,STUB SHAFT
3240015
Unavailable
16
O-RING,STUB SHAFT
3240016
Unavailable
17
COLLAR 2,STUB SHAFT
3240017
Unavailable
18
BALLBEARING
3240007
Unavailable
19
BOLT, PLUG
7517101
Unavailable
20
SEAL, COPPER
3610036
Unavailable
21
PLUG
3240138
Unavailable
22
CLAMP-HOSE,.875-SS
7080474
$8.40
23
HOSE 2, WATER
3240027
Unavailable
24
PIPE, WATER
3240008
Unavailable
25
O RING,(10)
5410735
Unavailable
26
O-RING (10)
5410734
Unavailable
27
PIPE, BILGE
3240009
Unavailable
28
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
29
SCREW(10)
7512019
$3.99
30
STUD,PUMP MTG. Substituted by 5020804
5020614
Unavailable
31
HOUSING,IMPELLER (Incl. 35)
3240136
Unavailable
32
NUT, HEX, S.S.,(10)
7542454
Unavailable
32
NUT, HEX, S.S.,(10)
7542454
Unavailable
33
WASHER, LOCK, S.S.(10)
7552607
Unavailable
33
WASHER, LOCK, S.S.(10)
7552607
Unavailable
34
WASHER, FLAT(10)
7555841
Unavailable
34
WASHER, FLAT(10)
7555841
Unavailable
35
RING, WEAR
3240137
Unavailable
36
COLLAR 1,STUB SHAFT
3240005
Unavailable
37
BALLBEARING
3240004
Unavailable
38
SEAL,OIL,STUB SHAFT
3240006
Unavailable
39
IMPELLER,(15-18 DEG.)
5130950
Unavailable
