HULL and BODY ASSEMBLY SL 650 / B934058 (4924732473002A)

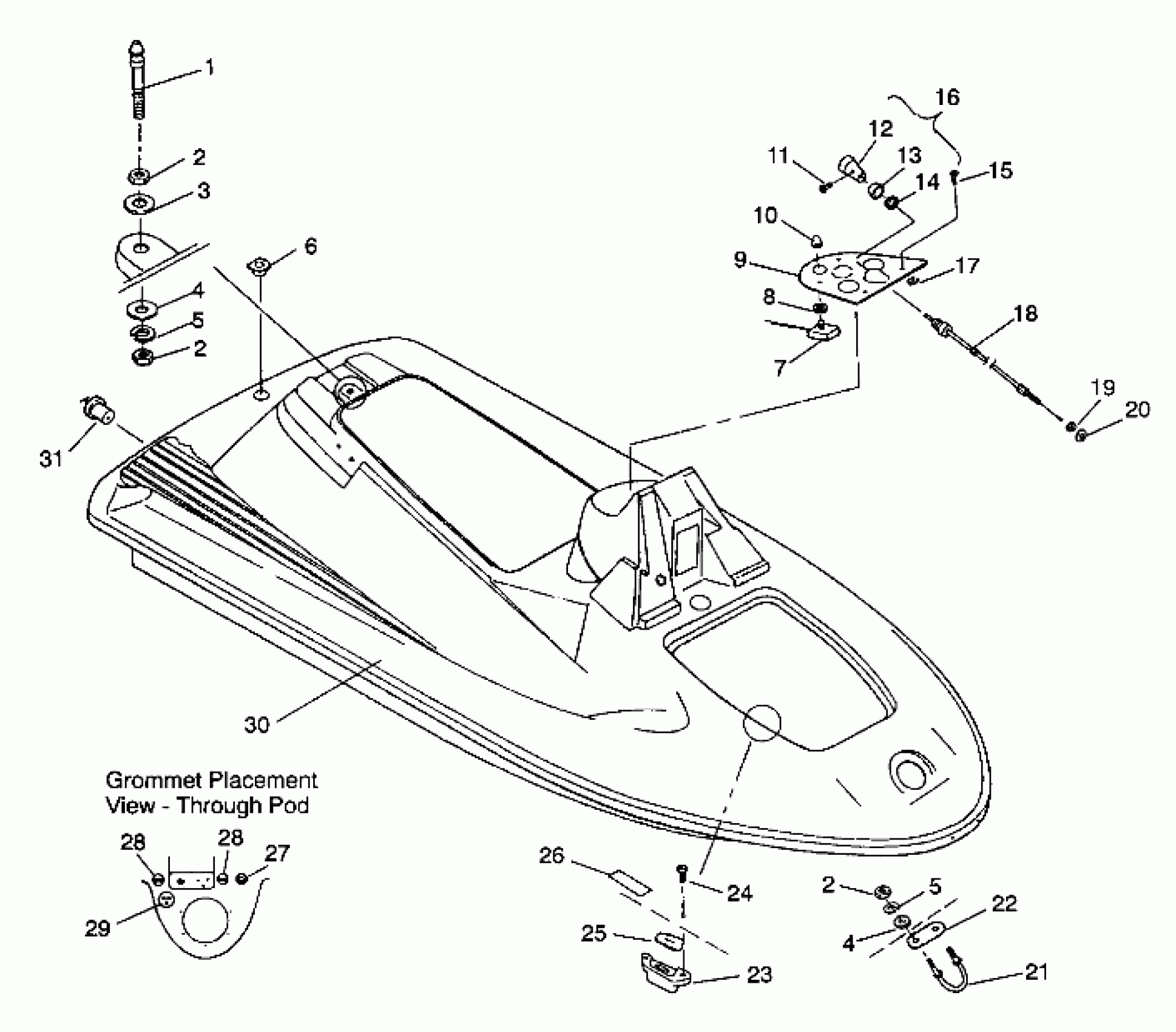

Polaris SL 650 - B934058 HULL and BODY ASSEMBLY SL 650 / B934058 (4924732473002A) Diagram
#
Description
Price
1
PLUNGER,SEATBASE LATCH Substituted by 5020753
5020609
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
3
WASHER, FLAT(10)
7555845
Unavailable
4
WASHER, FLAT(10)
7555846
$5.59
4
WASHER, FLAT(10)
7555846
$5.59
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
6
EYELET,R.BONN.BLUE
5431404-157
Unavailable
7
SWITCH, STARTER
4110143
Unavailable
8
NUT,BRASS,(10)
7544501
Unavailable
9
PANEL,INST.,(WHITE)
5431384-133
Unavailable
10
BOOT,THREADED,WATER
7080477
Unavailable
11
Screw
2080005
Unavailable
12
KNOB,CHOKE
2080004
Unavailable
13
COVER
2080003
Unavailable
14
NUT
2080002
Unavailable
15
SCREW, SS.(10)
7512047
Unavailable
16
KIT, CHOKE, (PWC) (Incl.11-14)
2200428
Unavailable
17
CLIP,'U',S.S.(10)
7670077
Unavailable
18
CABLE, CHOKE (Incl. 19-20)
7080448
Unavailable
19
NUT
2010125
Unavailable
20
WASHER
2010126
Unavailable
21
EYE, BOW
5910031
Unavailable
22
PLATE,BACKING,BOW EYE
5211317
Unavailable
23
STOP,DOOR SUPPORT Substituted by 5431960
5431446
Unavailable
24
SCREW(10)
7512049
Unavailable
25
SEAL,DOOR SUPPORT
5810571
Unavailable
26
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
27
GROMMET
5410718
Unavailable
28
GROMMET,CONTROL CABLE
5410635
Unavailable
28
GROMMET,CONTROL CABLE
5410635
Unavailable
29
GROMMET,FUEL LINE
5410669
Unavailable
30
HULL ASM,(650-'93) Substituted by 2631618 (Incl.2,4-6,21,22, Housing Shaft & Thru-Hull)
2631589
Unavailable
31
PLUG, BAIL
7010046
Unavailable
