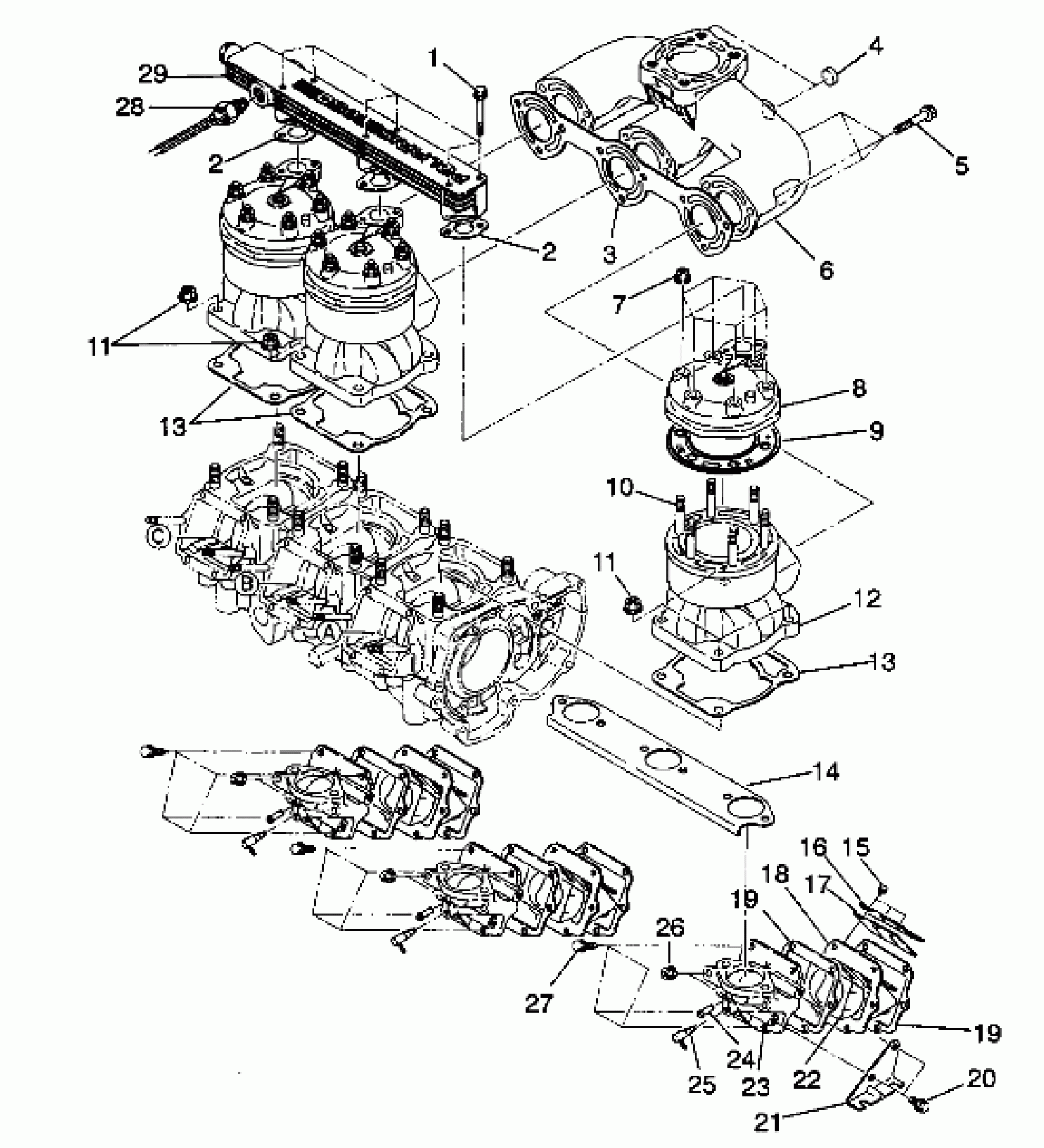

Polaris SL 650 - B934058 CYLINDER & MANIFOLD SL 650 / B934058 (4924732473022A) Diagram

#

Description
Price

1

BOLT, FLANGE

3240075

Unavailable

2

GASKET(10)

3082937

Unavailable

2

GASKET(10)

3082937

Unavailable

3

GASKET,EXH.MANIFOLD Substituted by 3240193

3240163

$51.99

4

PLUG

3240071

$7.38

5

BOLT, FLANGE

3240073

$2.86

6

MANIFOLD, EXHAUST

3240162

Unavailable

7

NUT, FLANGE,(10)

3240058

Unavailable

8

HEAD,CYL.,COMPL.

3240161

$124.79

9

GASKET, HEAD Substituted by 3240191 (Head)

3240057

Unavailable

10

STUD

3240054

$8.73

11

NUT, FLANGE Substituted by 7546906

3240059

$1.99

11

NUT, FLANGE Substituted by 7546906

3240059

$1.99

12

CYLINDER

3240053

$549.99

13

GASKET, CYLINDER

3240055

Unavailable

13

GASKET, CYLINDER

3240055

Unavailable

14

PLATE, CARB.MOUNT

3240069

$41.27

15

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

16

Stopper

3240065

Unavailable

17

VALVE, REED(10)

3240064

Unavailable

18

VALVE ASM., REED

3084147

Unavailable

19

GASKET, REED VALVE,(10)

3084148

Unavailable

19

GASKET, REED VALVE,(10)

3084148

Unavailable

20

BOLT, FLANGE(10)

3240040

$0.39

21

BRACKET, WIRE

3240067

Unavailable

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39

23

PIPE, INTAKE

3240060

$110.60

24

PIPE

3240061

$3.97

25

VALVE, CHECK Substituted by 3086785

3083337

$56.65

26

NUT, FLANGE

3240063

$1.27

27

BOLT, FLANGE

3240062

Unavailable

28

SWITCH, THERMO. Substituted by 2410019

3240135

Unavailable

29

MANIFOLD,WATER-OUTLET

3240074

Unavailable
