CRANKCASE ASSEMBLY SL 650 / B934058 (4924732473021A)

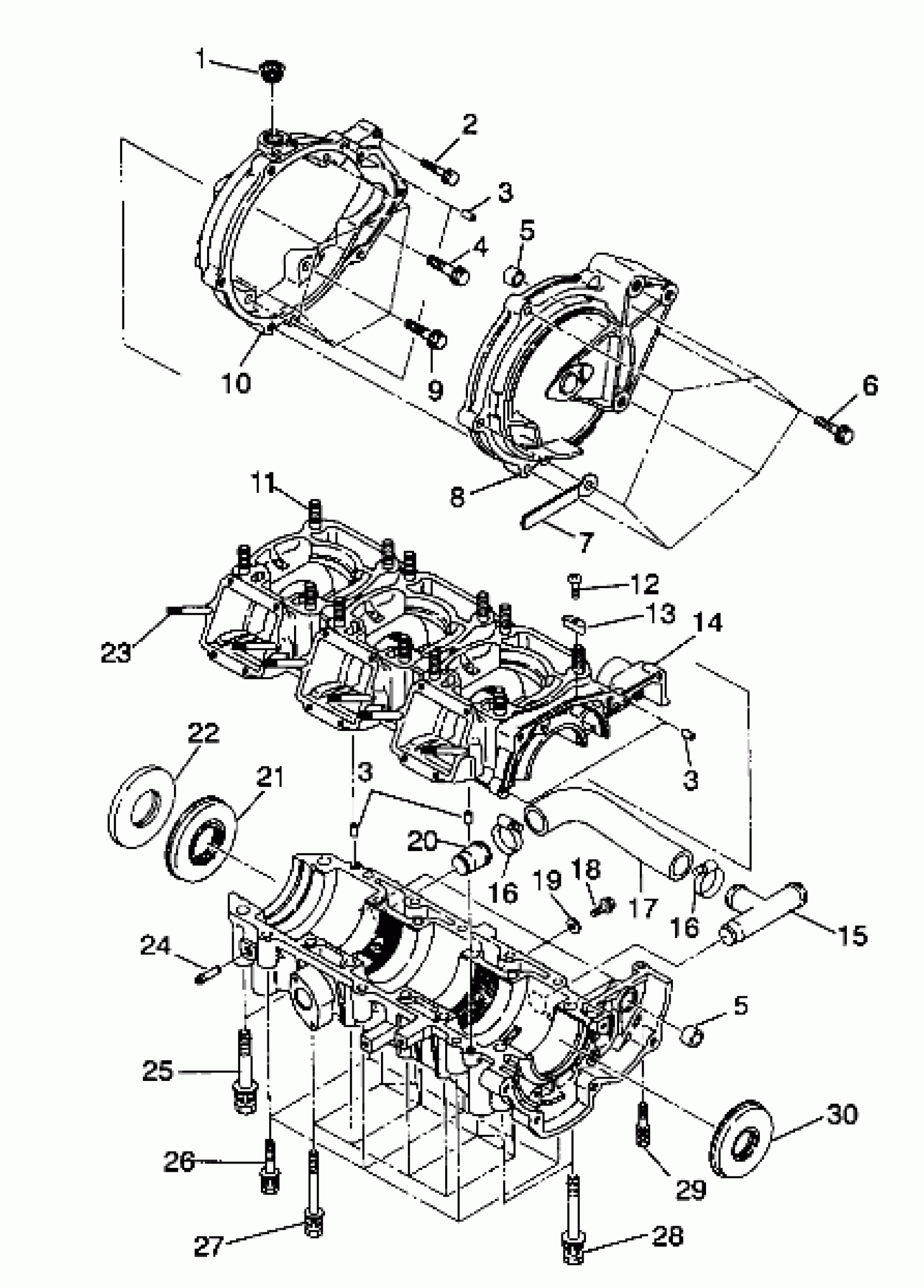

Polaris SL 650 - B934058 CRANKCASE ASSEMBLY SL 650 / B934058 (4924732473021A) Diagram
#
Description
Price
1
PLUG
3240046
Unavailable
2
BOLT, FLANGE
3240047
Unavailable
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
4
BOLT, FLANGE
3240048
Unavailable
5
BUSHING, STARTER
3083669
Unavailable
5
BUSHING, STARTER
3083669
Unavailable
6
BOLT, FLANGE
3240050
Unavailable
7
Clamp
3083384
Unavailable
8
COVER, MAG.
3240049
Unavailable
9
Bolt, Flange
3084134
Unavailable
10
CRANKCASE 3
3240044
Unavailable
11
STUD
3240032
Unavailable
12
SCREW(10)
3240160
Unavailable
13
PLATE,ZINC
3240131
Unavailable
14
CRANKCASE ASM.
3240154
Unavailable
15
PIPE 2,WATER,COMPL.
3240159
Unavailable
16
CLAMP, HOSE
3240158
Unavailable
16
CLAMP, HOSE
3240158
Unavailable
17
HOSE, WATER
3240157
Unavailable
18
BOLT, FLANGE(10)
3240040
Unavailable
19
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
20
PIPE, WATER, COMPL.
3240156
Unavailable
21
SEAL, OIL
3240042
Unavailable
22
SEAL, OIL
3240043
Unavailable
23
STUD
3240033
Unavailable
24
PIPE, PULSE
3083798
$9.52
25
BOLT&WASHER ASM.
3240035
Unavailable
26
BOLT&WASHER ASM.
3240038
Unavailable
27
BOLT&WASHER ASM.
3240037
Unavailable
28
BOLT&WASHER ASM.
3240036
Unavailable
29
BOLT&WASHER ASM.
3240039
Unavailable
30
SEAL, OIL
3240041
Unavailable
