AIR VENT SL 650 / B934058 (4924732473016A)

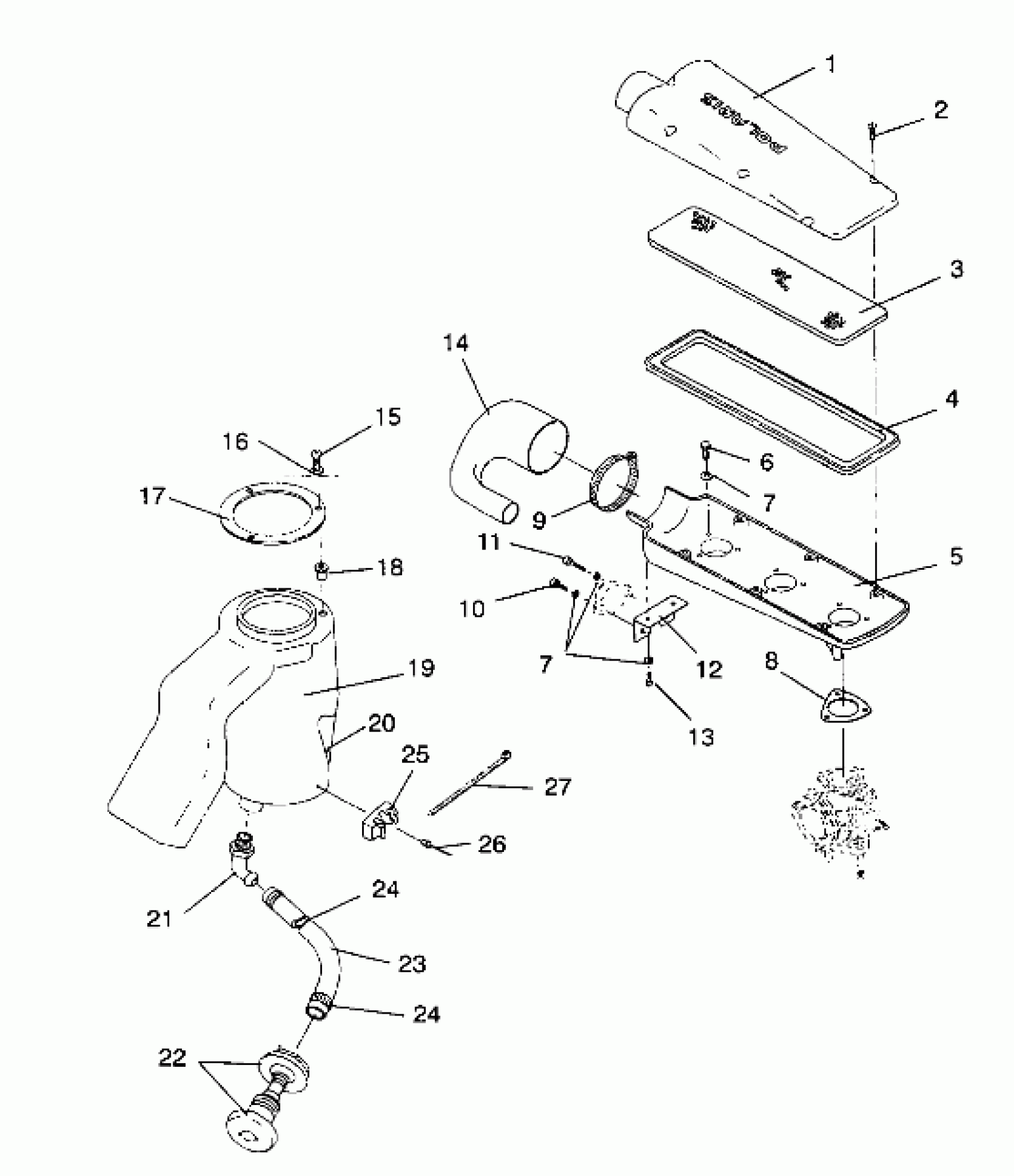

Polaris SL 650 - B934058 AIR VENT SL 650 / B934058 (4924732473016A) Diagram
#
Description
Price
1
INTAKE,UPPER MANIFOLD
5431406-157
Unavailable
2
SCREW(10)
7512060
Unavailable
3
SCREEN, INTAKE
5222779
Unavailable
4
GASKET,INT.SCREEN
5410687
Unavailable
5
MANIFOLD, INTAKE
5130873
Unavailable
6
BOLT(10)
7516801
Unavailable
7
WASHER, LOCK, S.S.(10)
7555838
Unavailable
7
WASHER, LOCK, S.S.(10)
7555838
Unavailable
8
GASKET,ARRESTOR/CARB.
5830013
Unavailable
9
CLAMP, HOSE, S.S.(10)
7080457
Unavailable
10
BOLT(10)
7515127
Unavailable
11
BOLT(10)
7515129
Unavailable
12
BRKT, FUEL PUMP,WELD.
1060103
Unavailable
13
BOLT, S.S.(10)
7515121
Unavailable
14
DUCT, INLET AIR
5431599
Unavailable
15
BOLT, S.S.(10)
7512041
Unavailable
16
WASHER, FLAT, S.S.(10)
7555837
Unavailable
17
SEAL,AIR INT.DUCT
5410650
Unavailable
18
NUT, WELL(10)
7541901
$6.39
19
DUCT,LOW.AIR INTAKE
5431370
Unavailable
20
Grommet, Vent
5410682
Unavailable
21
ELBOW
7052073
Unavailable
22
FITTING,THRU HULL,WATER Substituted by 5431444-133
5431444
Unavailable
23
HOSE,BULK,3/4,WATERLINE [No Longer Available]
2871057
Unavailable
24
CLAMP, S.S.(10)
7080470
Unavailable
24
CLAMP, S.S.(10)
7080470
Unavailable
25
RETAINER, VENT HOSE
5521266
Unavailable
26
RIVET(50)
7621479
$1.99
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
