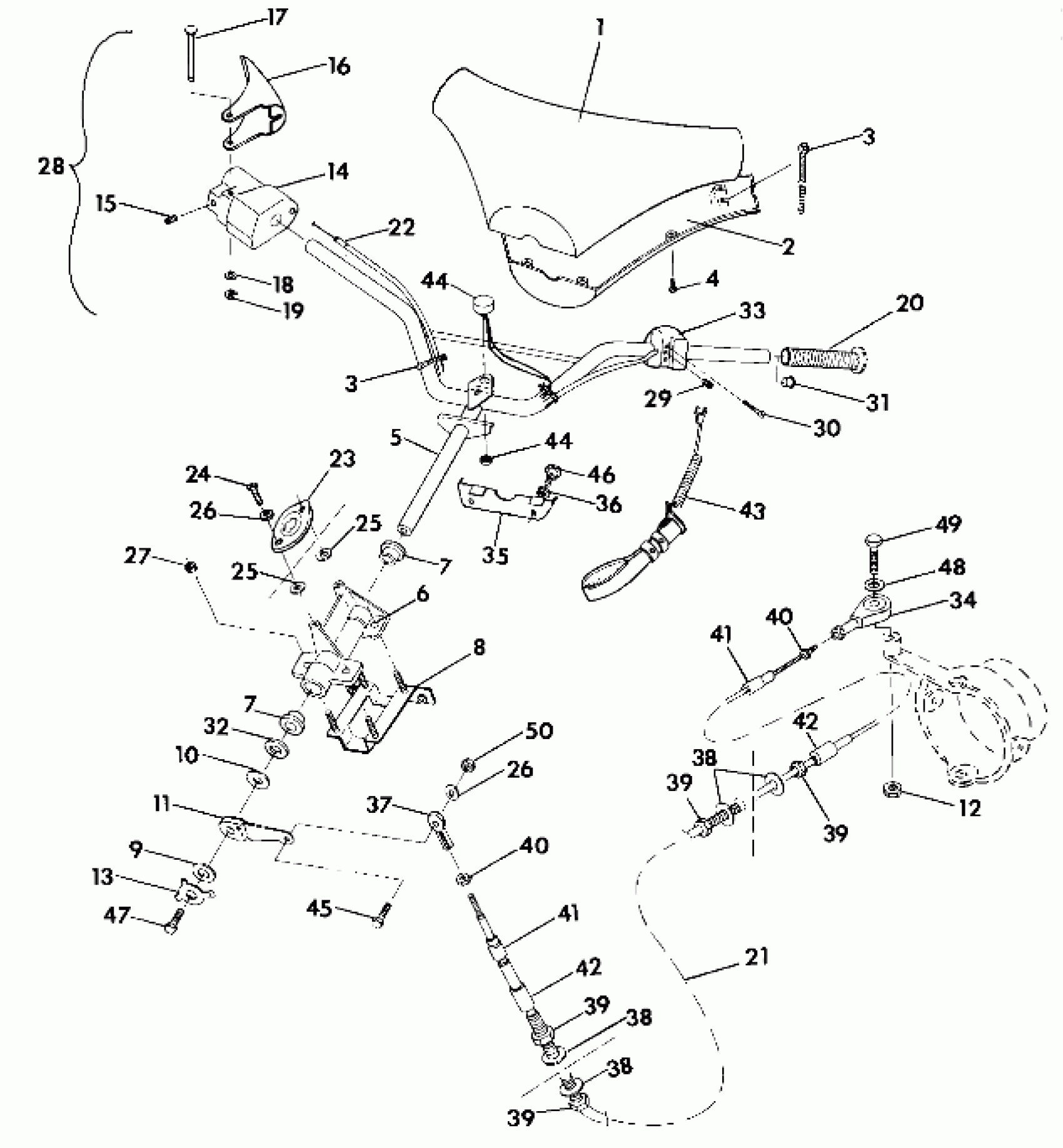

Polaris SL 650 - B924058 STEERING SL 650/B924058 (4922922292009A) Diagram

#

Description
Price

1

COVER,TOP,H'BAR

5431376-157

$107.30

2

COVER,BOTT.H'BAR

5431377-157

Unavailable

3

CABLE, TIE

7080346

Unavailable

4

SCREW(10)

7511870

$0.95

5

POST, STEERING

1823152

Unavailable

6

HUB,STRG.SUPPORT,BON.BLUE

5130832-157

Unavailable

7

BUSHING,STRG.SUPPORT

5431382

Unavailable

7

BUSHING,STRG.SUPPORT

5431382

Unavailable

8

PLATE, BOLT

1060101

Unavailable

9

WASHER, S.S.(10)

7555834

Unavailable

10

WASHER, WAVE(10)

7571624

Unavailable

11

ARM, STRG.,WELD.

1823156

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

WASHER,LOCK,SPECIAL

5222793

Unavailable

14

BLOCK,THROTTLE CONTROL

5431396

Unavailable

15

SCREW, SET, S.S.(10)

7515115

Unavailable

16

LEVER,THROTTLE CONTROL

5431397

Unavailable

17

Pin, Retaining

7661628

Unavailable

18

WASHER, FLAT, S.S.(10)

7555840

$3.33

19

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

20

GRIP,H'BAR,BON.BLUE

5410638-157

Unavailable

21

CABLE, STEERING

7080435

Unavailable

22

CABLE, THROTTLE

7080449

Unavailable

23

BRKT, RECEIVER

5431427

Unavailable

24

SCREW, S.S.(10)

7512051

$1.27

25

WASHER, FLAT(10)

7555861

Unavailable

25

WASHER, FLAT(10)

7555861

Unavailable

26

WASHER, FLAT, S.S.(10)

7555837

$1.59

26

WASHER, FLAT, S.S.(10)

7555837

$1.59

27

NUT, HEX, S.S.(10)

7542335

Unavailable

28

THROTTLE CONTROL ASM. (Incl. 14-19)

2010122

Unavailable

29

SCREW, S.S.(10)

7516601

$3.17

30

SCREW(10)

7516602

$3.33

31

CAPLUG(10)

7080467

Unavailable

32

WASHER, FLAT, SS(10)

7555855

$0.71

33

SWITCH,KILL/TETHER

4110121

Unavailable

33

SWITCH,KILL/TETHER

4110121

Unavailable

34

EYE, END

7080460

$17.49

35

STOP, STEERING

5222677

Unavailable

36

WASHER, LOCK, S.S.(10)

7552610

Unavailable

37

ROD END, S.S.

7060154

Unavailable

38

Washer

1860103

$3.33

38

Washer

1860103

$3.33

38

Washer

1860103

$3.33

39

NUT, NYLOK, S.S.(10)

7542526

Unavailable

39

NUT, NYLOK, S.S.(10)

7542526

Unavailable

39

NUT, NYLOK, S.S.(10)

7542526

Unavailable

39

NUT, NYLOK, S.S.(10)

7542526

Unavailable

40

NUT (10)

1860102

Unavailable

40

NUT (10)

1860102

Unavailable

41

SEAL, ROD

1860101

Unavailable

41

SEAL, ROD

1860101

Unavailable

42

Cover

1860105

Unavailable

42

Cover

1860105

Unavailable

43

CORD, TETHER Substituted by 7080518

7080478

Unavailable

44

INDICATOR'OILTEMP'

4040030

$56.99

44

INDICATOR'OILTEMP'

4040030

$56.99

45

BOLT, S.S.(10)

7512041

$2.54

46

BOLT, SHOULDER(10) Substituted by 7515387

7515371

$7.94

47

BOLT(10)

7515372

Unavailable

48

WASHER, FLAT, S.S.(10)

7555839

Unavailable

49

BOLT,(10)

7515120

Unavailable

50

NUT, HEX, S.S.(10)

7541931

$5.99
