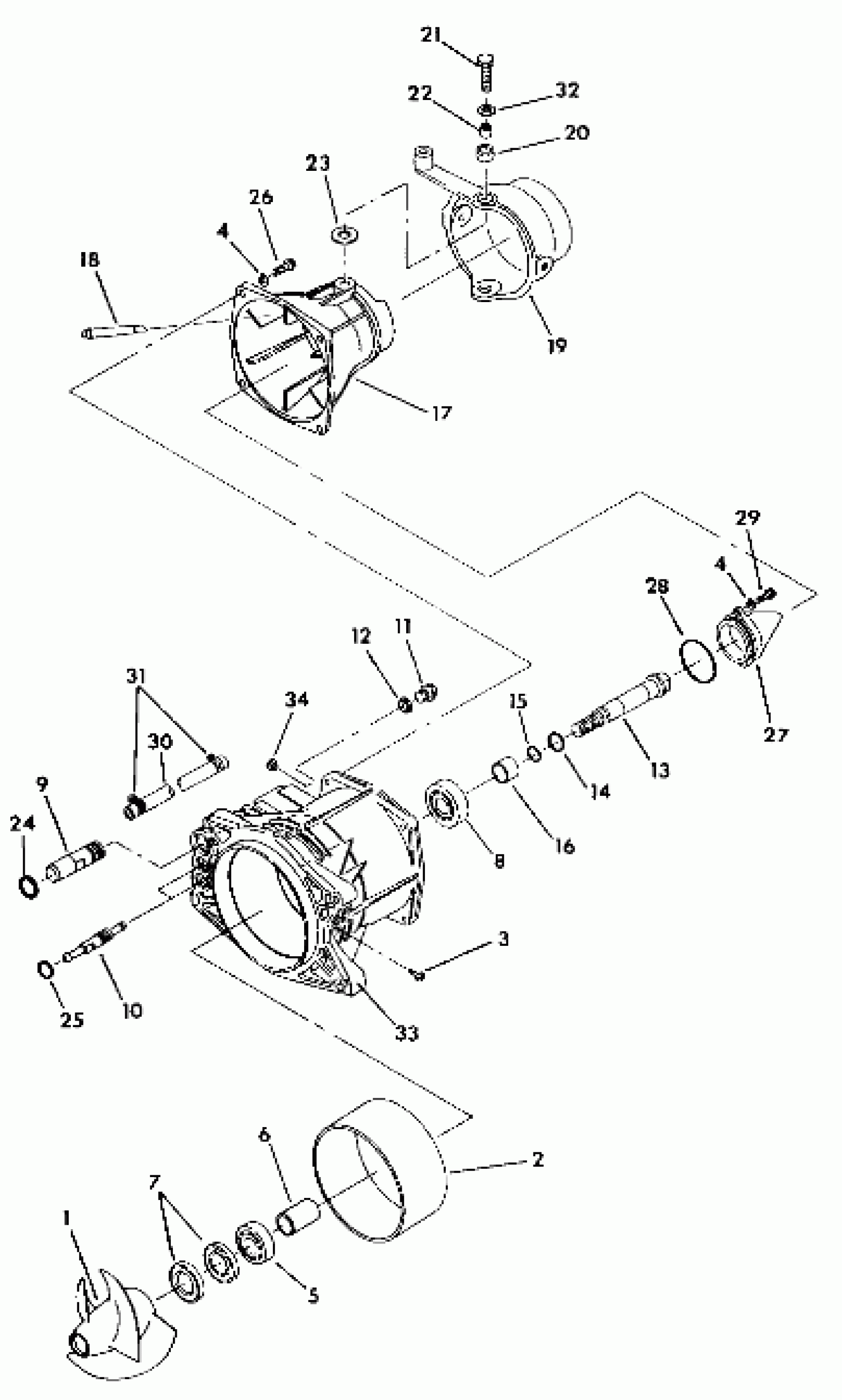

Polaris SL 650 - B924058 PROPULSION SL 650/B924058 (4922922292014A) Diagram

#

Description
Price

1

IMPELLER,(14.5 DEG.)

5130874

Unavailable

3

SCREW(10)

3240002

Unavailable

4

WASHER, LOCK(10)

7552613

Unavailable

4

WASHER, LOCK(10)

7552613

Unavailable

5

BALLBEARING

3240004

Unavailable

5

BALLBEARING

3240004

Unavailable

6

COLLAR 1,STUB SHAFT

3240005

Unavailable

7

SEAL,OIL,STUB SHAFT

3240006

Unavailable

8

BALLBEARING

3240007

Unavailable

9

PIPE, WATER (Water)

3240008

Unavailable

10

PIPE, BILGE (Bilge)

3240009

Unavailable

11

BOLT, PLUG

7517101

Unavailable

12

SEAL, COPPER

3610036

Unavailable

13

STUB SHAFT

3240014

Unavailable

14

O-RING,STUB SHAFT

3240015

Unavailable

15

O-RING,STUB SHAFT

3240016

Unavailable

16

COLLAR 2,STUB SHAFT

3240017

Unavailable

17

NOZZLE, OUTLET

3240012

Unavailable

18

PIPE, WATER (Bilge)

3240013

Unavailable

19

NOZZLE, STEERING Substituted by 3240140

3240018

Unavailable

20

BEARING, SLEEVE

3240019

Unavailable

21

BOLT

3240020

Unavailable

22

COLLAR

3240021

Unavailable

23

WASHER, FRICTION

3240022

Unavailable

24

O RING,(10)

5410735

Unavailable

25

O-RING (10)

5410734

Unavailable

26

BOLT(10)

7516717

Unavailable

27

CONE, TAIL

3240025

Unavailable

28

O-RING,TAIL CONE

3240026

Unavailable

29

BOLT(10)

7516718

Unavailable

30

HOSE 2, WATER (Water)

3240027

Unavailable

31

CLAMP-HOSE,.875-SS

7080474

$8.40

32

WASHER(10)

3240029

Unavailable

33

HOUSING,IMPELLER

3240000

Unavailable

34

PLUG, PUMP

3240130

Unavailable
