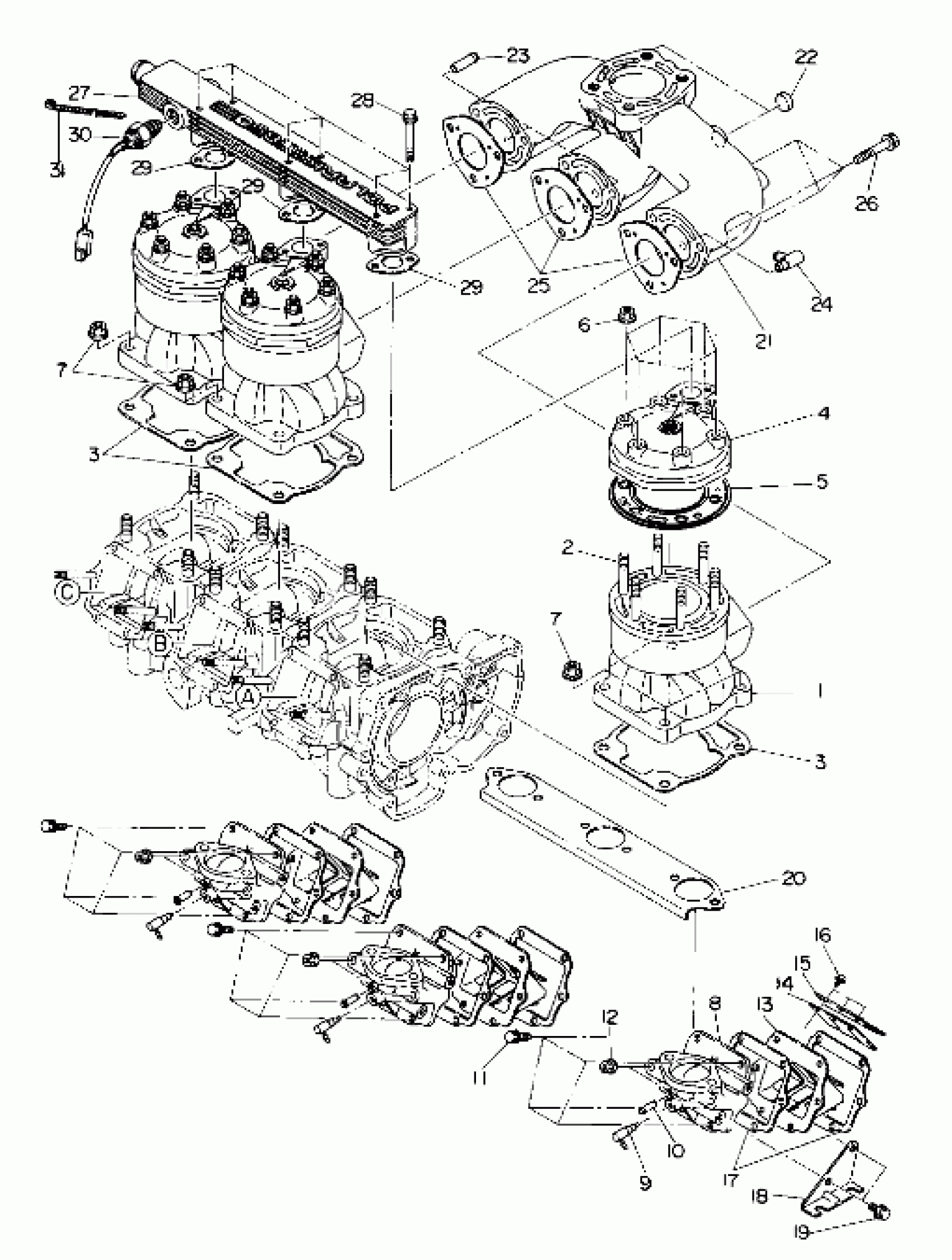

Polaris SL 650 - B924058 CYLINDER SL 650/B924058 (4922922292023A) Diagram

#

Description
Price

1

CYLINDER

3240053

$549.99

2

STUD

3240054

$8.73

3

GASKET, CYLINDER (Cylinder)

3240055

Unavailable

3

GASKET, CYLINDER (Cylinder)

3240055

Unavailable

4

HEAD, CYLINDER Substituted by 3240161

3240133

$124.79

5

GASKET, HEAD Substituted by 3240191 (Head)

3240057

Unavailable

6

NUT, FLANGE,(10)

3240058

Unavailable

7

NUT, FLANGE Substituted by 7546906

3240059

$1.99

7

NUT, FLANGE Substituted by 7546906

3240059

$1.99

8

PIPE, INTAKE

3240060

$110.60

9

VALVE, CHECK Substituted by 3086785

3083337

$56.65

10

PIPE

3240061

$3.97

11

BOLT, FLANGE

3240062

Unavailable

12

NUT, FLANGE

3240063

$1.27

13

VALVE ASM., REED

3084147

Unavailable

14

VALVE, REED(10)

3240064

Unavailable

15

Stopper

3240065

Unavailable

16

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

17

GASKET, REED VALVE,(10) (Reed Valve)

3084148

Unavailable

18

BRACKET, WIRE (Wire)

3240067

Unavailable

19

BOLT, FLANGE(10)

3240040

$0.39

20

PLATE, CARB.MOUNT (Carb Mount)

3240069

$41.27

21

MANIFOLD, EXHAUST

3240070

$559.99

22

PLUG

3240071

$7.38

23

PIPE, WATER (Water)

3084048

Unavailable

24

PIPE, HEAD (Head)

3084390

Unavailable

25

GASKET,EXH.MANIFOLD (Ex-Manifold)

3240072

Unavailable

26

BOLT, FLANGE

3240073

$2.86

27

MANIFOLD,WATER-OUTLET

3240074

Unavailable

28

BOLT, FLANGE

3240075

Unavailable

29

GASKET(10)

3082937

Unavailable

29

GASKET(10)

3082937

Unavailable

29

GASKET(10)

3082937

Unavailable

30

SENSOR ASM, TEMP. Substituted by 2410019

2410017

Unavailable

31

STRAP, BLK

7080272

Unavailable
