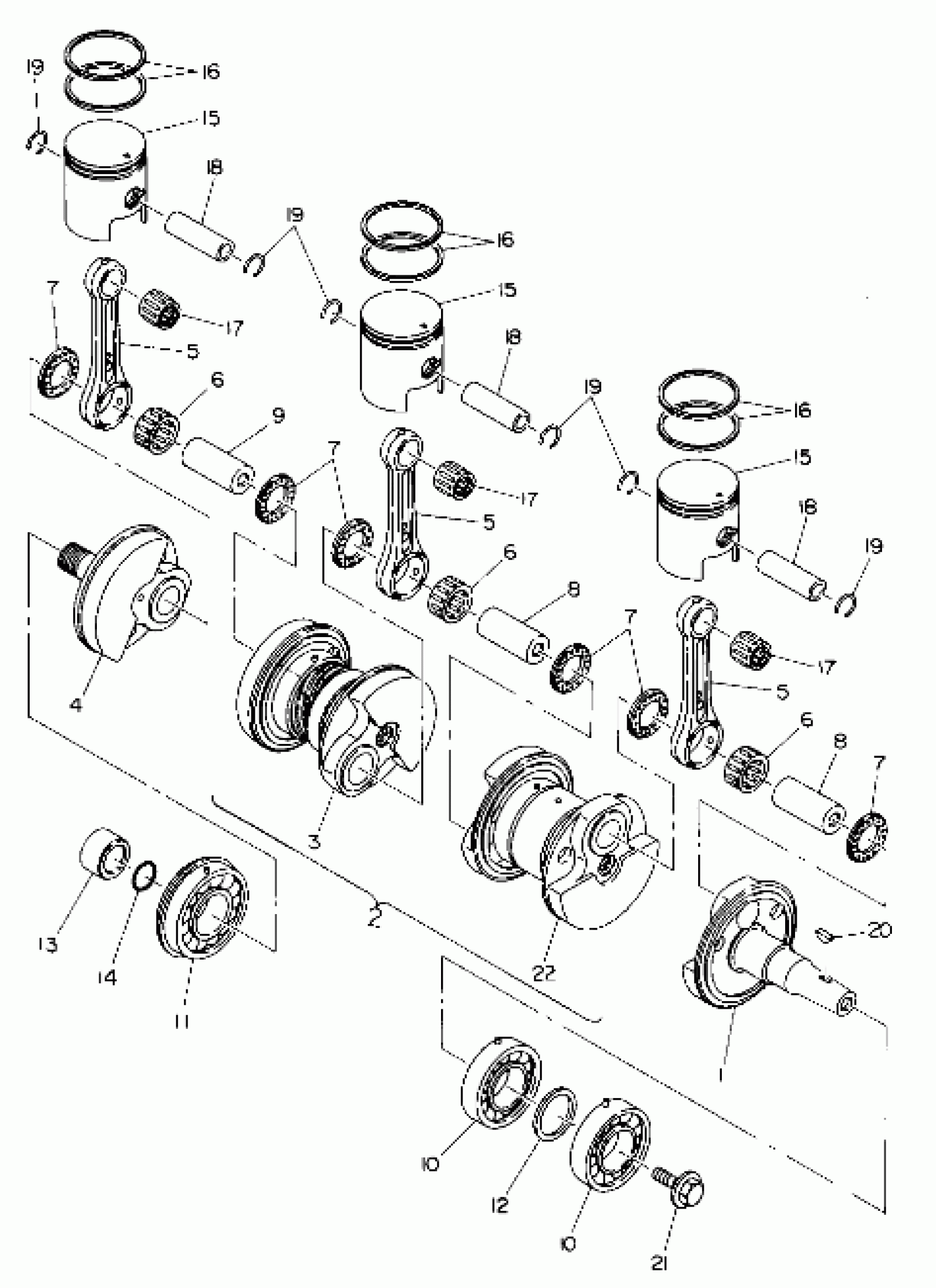

Polaris SL 650 - B924058 CRANKSHAFT and PISTON SL 650/B924058 (4922922292025A) Diagram

#

Description
Price

1

CRANKSHAFT ASM. Substituted by 3240184 (Incl. 1-12, 22)

3240077

Unavailable

1

CRANKSHAFT 1

3240078

Unavailable

2

CRANKSHAFT, CTR. (Center) (Incl. 3, 5-9, 22)

3240079

Unavailable

3

CRANKSHAFT 2 Substituted by 3240184 (PTO Side) (Incl. 9)

3240081

Unavailable

4

CRANKSHAFT 3

3240082

Unavailable

5

ROD, CONNECTING

3240083

$1,634.99

5

ROD, CONNECTING

3240083

$1,634.99

5

ROD, CONNECTING

3240083

$1,634.99

6

BEARING,LGE.END Substituted by 3083255

3240084

Unavailable

6

BEARING,LGE.END Substituted by 3083255

3240084

Unavailable

6

BEARING,LGE.END Substituted by 3083255

3240084

Unavailable

7

SPACER(CRANKPIN) (Crank Pin)

3083277

$15.99

7

SPACER(CRANKPIN) (Crank Pin)

3083277

$15.99

7

SPACER(CRANKPIN) (Crank Pin)

3083277

$15.99

7

SPACER(CRANKPIN) (Crank Pin)

3083277

$15.99

8

PIN-CRANK 2

3083254

Unavailable

8

PIN-CRANK 2

3083254

Unavailable

9

PIN, CRANK

3240085

Unavailable

10

BEARING, BALL Substituted by 3084544

3240086

Unavailable

10

BEARING, BALL Substituted by 3084544

3240086

Unavailable

11

BEARING, BALL Substituted by 3084545

3240087

Unavailable

12

SPACER

3240088

$10.39

13

RING, WEAR

3240089

Unavailable

14

O-RING

3240090

Unavailable

15

PISTON, (.020 O/S) (.020 O/S)

3240093

Unavailable

15

PISTON (Standard)

3240091

Unavailable

15

PISTON, (.010 O/S) (.010 O/S)

3240092

Unavailable

15

PISTON, (.020 O/S) (.020 O/S)

3240093

Unavailable

15

PISTON (Standard)

3240091

Unavailable

15

PISTON, (.010 O/S) (.010 O/S)

3240092

Unavailable

15

PISTON, (.020 O/S) (.020 O/S)

3240093

Unavailable

15

PISTON (Standard)

3240091

Unavailable

15

PISTON, (.010 O/S) (.010 O/S)

3240092

Unavailable

16

RING, PISTON .010 O/S (.010 O/S)

3083358

Unavailable

16

RING,PISTON .020 O/S (.020 O/S)

3083359

Unavailable

16

RING, PISTON (Standard)

3083349

Unavailable

16

RING, PISTON .010 O/S (.010 O/S)

3083358

Unavailable

16

RING,PISTON .020 O/S (.020 O/S)

3083359

Unavailable

16

RING, PISTON (Standard)

3083349

Unavailable

16

RING, PISTON .010 O/S (.010 O/S)

3083358

Unavailable

16

RING,PISTON .020 O/S (.020 O/S)

3083359

Unavailable

16

RING, PISTON (Standard)

3083349

Unavailable

17

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

17

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

17

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

18

Pin, Piston

3083849

$19.83

18

Pin, Piston

3083849

$19.83

18

Pin, Piston

3083849

$19.83

19

CLIP,PISTON PIN,(10) (Piston Pin)

3083839

$4.75

19

CLIP,PISTON PIN,(10) (Piston Pin)

3083839

$4.75

19

CLIP,PISTON PIN,(10) (Piston Pin)

3083839

$4.75

19

CLIP,PISTON PIN,(10) (Piston Pin)

3083839

$4.75

20

KEY WOODRUFF

3081543

$12.94

21

BOLT,FLANGE,COUPLING

3240094

Unavailable

22

DESC NOT_AVAILABLE (Mag Side) (Incl. 8)

2340080

Unavailable
