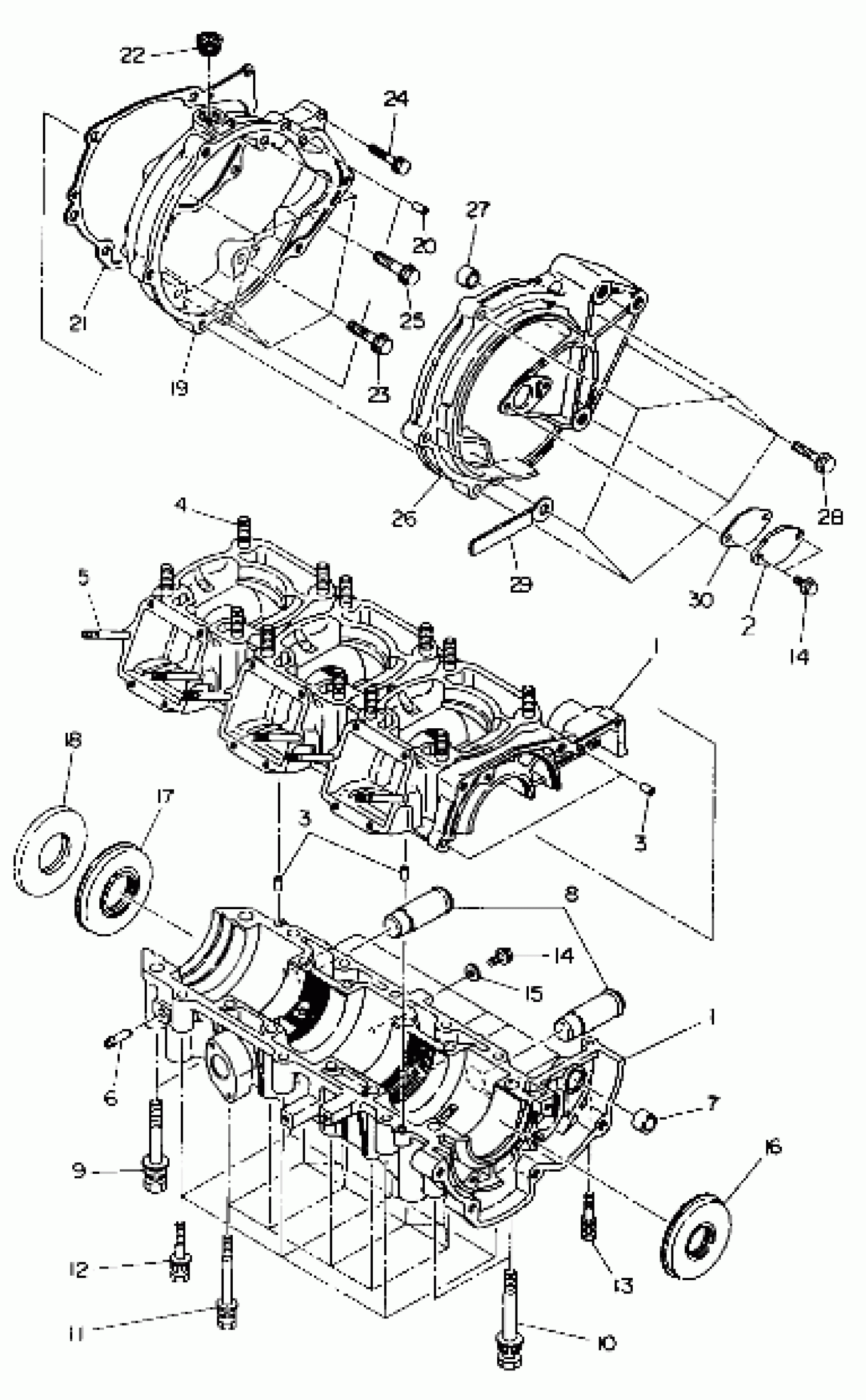

Polaris SL 650 - B924058 CRANKCASE SL 650/B924058 (4922922292022A) Diagram

#

Description
Price

1

CRANKCASE Substituted by 3240154

3240031

$804.99

1

CRANKCASE Substituted by 3240154

3240031

$804.99

2

PLATE, BLIND

3240052

$4.95

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

STUD

3240032

$11.11

5

STUD

3240033

Unavailable

6

PIPE, PULSE (Pulse)

3083798

$9.52

7

BUSHING, STARTER (Starter)

3083669

Unavailable

8

PIPE, WATER (Water)

3240034

Unavailable

9

BOLT&WASHER ASM.

3240035

$7.29

10

BOLT&WASHER ASM.

3240036

Unavailable

11

BOLT&WASHER ASM.

3240037

Unavailable

12

BOLT&WASHER ASM.

3240038

$4.37

13

BOLT&WASHER ASM.

3240039

$2.38

14

BOLT, FLANGE(10)

3240040

$0.39

14

BOLT, FLANGE(10)

3240040

$0.39

15

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

16

SEAL, OIL

3240041

Unavailable

17

SEAL, OIL

3240042

Unavailable

18

SEAL, OIL

3240043

Unavailable

19

CRANKCASE 3

3240044

Unavailable

21

GASKET, CASE 3

3240045

Unavailable

22

PLUG (Rubber)

3240046

Unavailable

23

Bolt, Flange

3084134

Unavailable

24

BOLT, FLANGE

3240047

$2.54

25

BOLT, FLANGE

3240048

$3.33

26

COVER, MAG.

3240049

$114.99

28

BOLT, FLANGE

3240050

$1.43

29

Clamp

3083384

Unavailable

30

GASKET, BLIND (Blind)

3240051

Unavailable
