STEERING HANDLEBAR SL 900 B974091 and SL 1050 B974090 (4940974097A013)

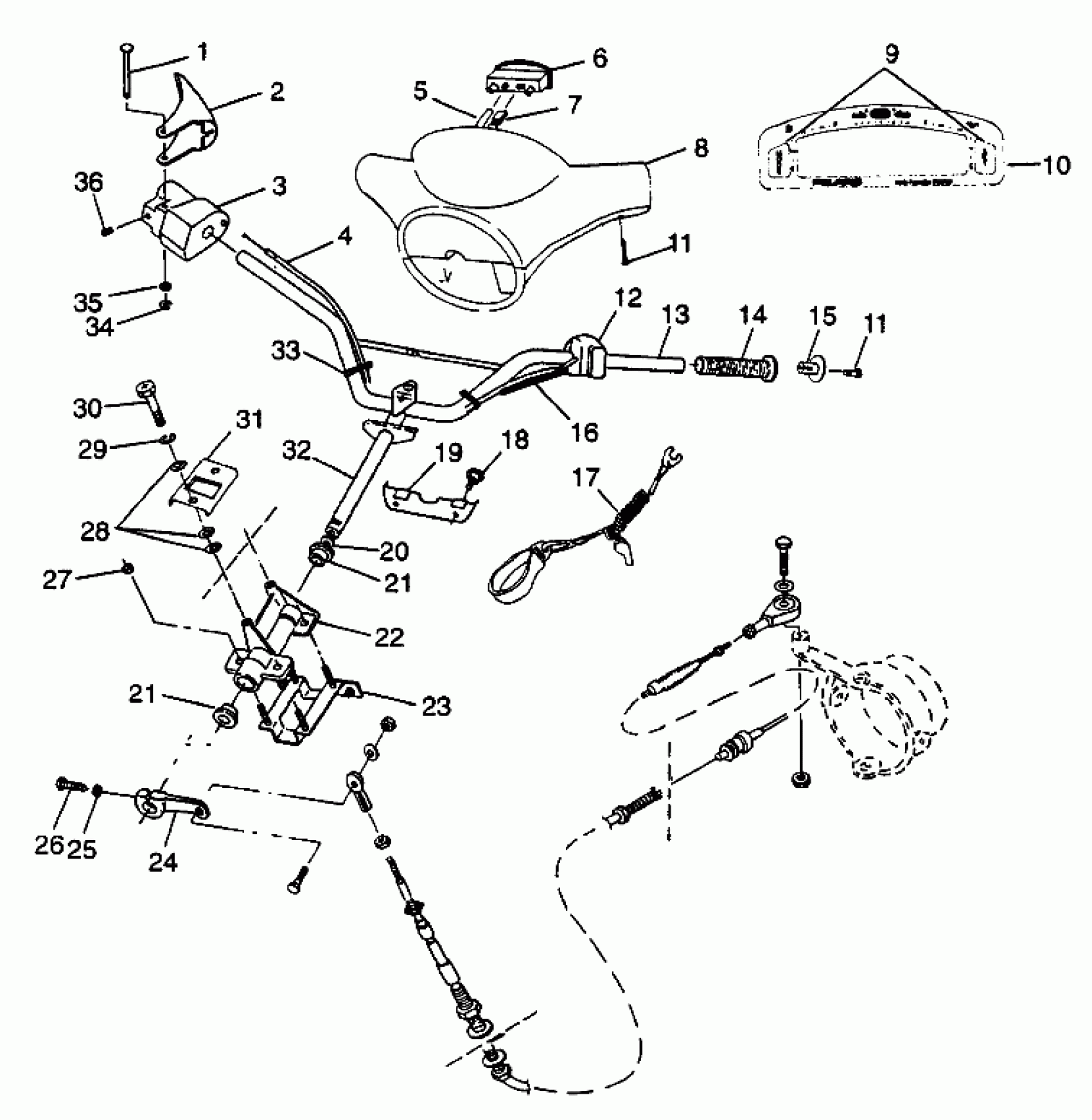

Polaris SL 1050 - B974090 STEERING HANDLEBAR SL 900 B974091 and SL 1050 B974090 (4940974097A013) Diagram
#
1
Pin, Retaining
7661628
Unavailable
2
LEVER,THROTTLE
5432372
Unavailable
3
BLOCK, THROTTLE
5432339
Unavailable
4
CABLE,THROTTLE
7080608
Unavailable
5
PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277
8450070-235
Unavailable
6
GAUGE,MULTI-FUNCTION
3280252
Unavailable
7
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
8
PAD,H'BAR,MFD,GL.BLK. (SL 1050)
5432510-070
Unavailable
8
PAD,H'BAR,MFD,TRIM,V.M. (SL 900)
5432510-242
Unavailable
9
KIT,MFD.BUTTON Substituted by 2201263
2200826
Unavailable
10
BEZEL,MFD,W/OVERLAY
3280266
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
12
SWITCH,ST/SP/TR/BG/CK
4110215
Unavailable
13
ADHESIVE,700 GR.(HANDGRIPS)
8560058
Unavailable
14
GRIP,H'BAR,WD.GRP. Substituted by 5411221-070
5411221-237
Unavailable
15
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
16
CABLE,CHOKE,54.93
7080671
Unavailable
17
LANYARD,W/WHISTLE
7080675
Unavailable
18
BOLT,SHOULDER(10)
7515387
Unavailable
19
STOP, STEERING
5222677
Unavailable
20
BUSH.(10)
7555875
Unavailable
21
BUSHING,STRG.SUPPORT
5431382
Unavailable
21
BUSHING,STRG.SUPPORT
5431382
Unavailable
22
HUB,SPRT.STRG/ANODE.
5131509
Unavailable
23
PLATE, BOLT
1060101
Unavailable
24
ARM,STRNG.,ANODIZED
5131441
Unavailable
25
WASHER, LOCK, S.S.(10)
7552610
Unavailable
26
BOLT, S.S.(10)
7515375
Unavailable
27
NUT, HEX, S.S.(10)
7542335
Unavailable
28
WASHER, FLAT, S.S.(10)
7555837
Unavailable
29
WASHER, LOCK(10)
7552615
$4.99
30
SCREW, S.S.(10)
7512051
Unavailable
31
PLATE,LATCH,SLT Substituted by 5243533
5211860
Unavailable
32
POST,STRG,W/H'BAR,TRIM
1860119
Unavailable
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
35
WASHER, FLAT, S.S.(10)
7555840
$3.35
36
SCREW, SET, S.S.(10)
7515115
Unavailable
