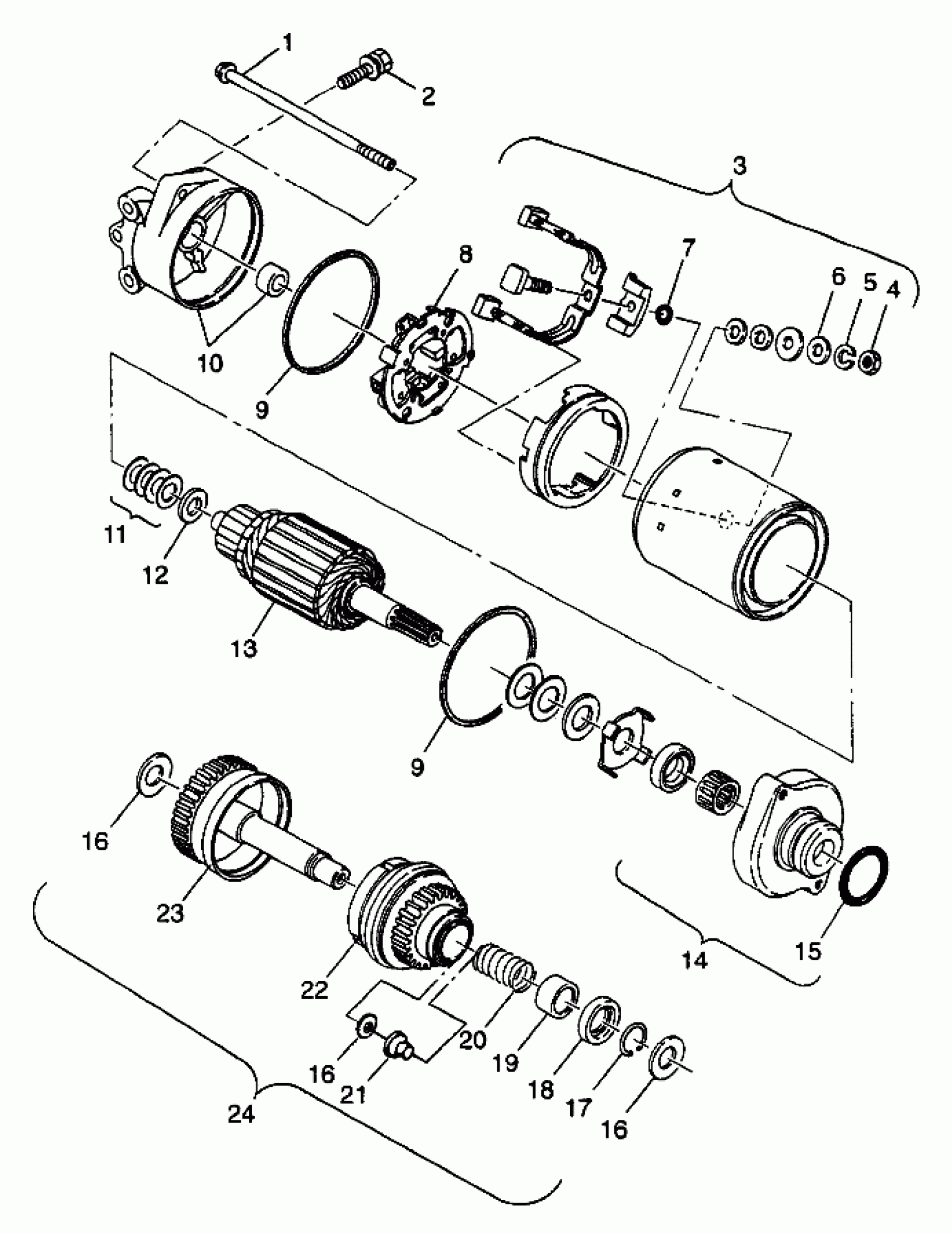

Polaris SL 1050 - B974090 STARTING MOTOR SL 900 B974091 and SL 1050 B974090 (4940974097C011) Diagram

#

Description
Price

-

STARTER (Incl. 1, 3-15)

4060118

$285.71

-

SHAFT COMPL.

3240121

Unavailable

1

Bolt, Through

3240113

$8.73

2

BOLT(10)

7516807

Unavailable

3

BRUSH, COMPL. (Incl. 4-8)

3240115

Unavailable

4

NUT(10)

3240116

Unavailable

5

WASHER, SPRING(10)

3240117

Unavailable

6

WASHER(10)

3240119

Unavailable

7

O-RING

3084408

Unavailable

8

Spring, Brush

3240111

$1.38

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

BRACKET ASM,REAR

3240207

$53.17

11

WASHER, THRUST(10)

3240118

Unavailable

12

Washer, Thrust

3240112

$0.32

13

ARMATURE ASM.

3240205

$139.99

14

BRACKET ASM,FRONT

3240206

Unavailable

15

O-Ring

3240114

$6.99

16

WASHER(10)

7555908

$3.17

16

WASHER(10)

7555908

$3.17

16

WASHER(10)

7555908

$3.17

17

SNAP RING

3240126

$0.32

18

Stopper

3240125

Unavailable

19

Cover

3240123

$3.81

20

Spring

7041457

Unavailable

21

BUSHING,PLASTIC

3574214

$5.00

22

GEAR ASM. Substituted by 3240120

3240122

$292.59

23

GEAR ASM. Substituted by 4060119 (Incl. 16-22)

3240120

$292.59

24

BENDIX (Incl. 16-23)

4060119

$292.59
