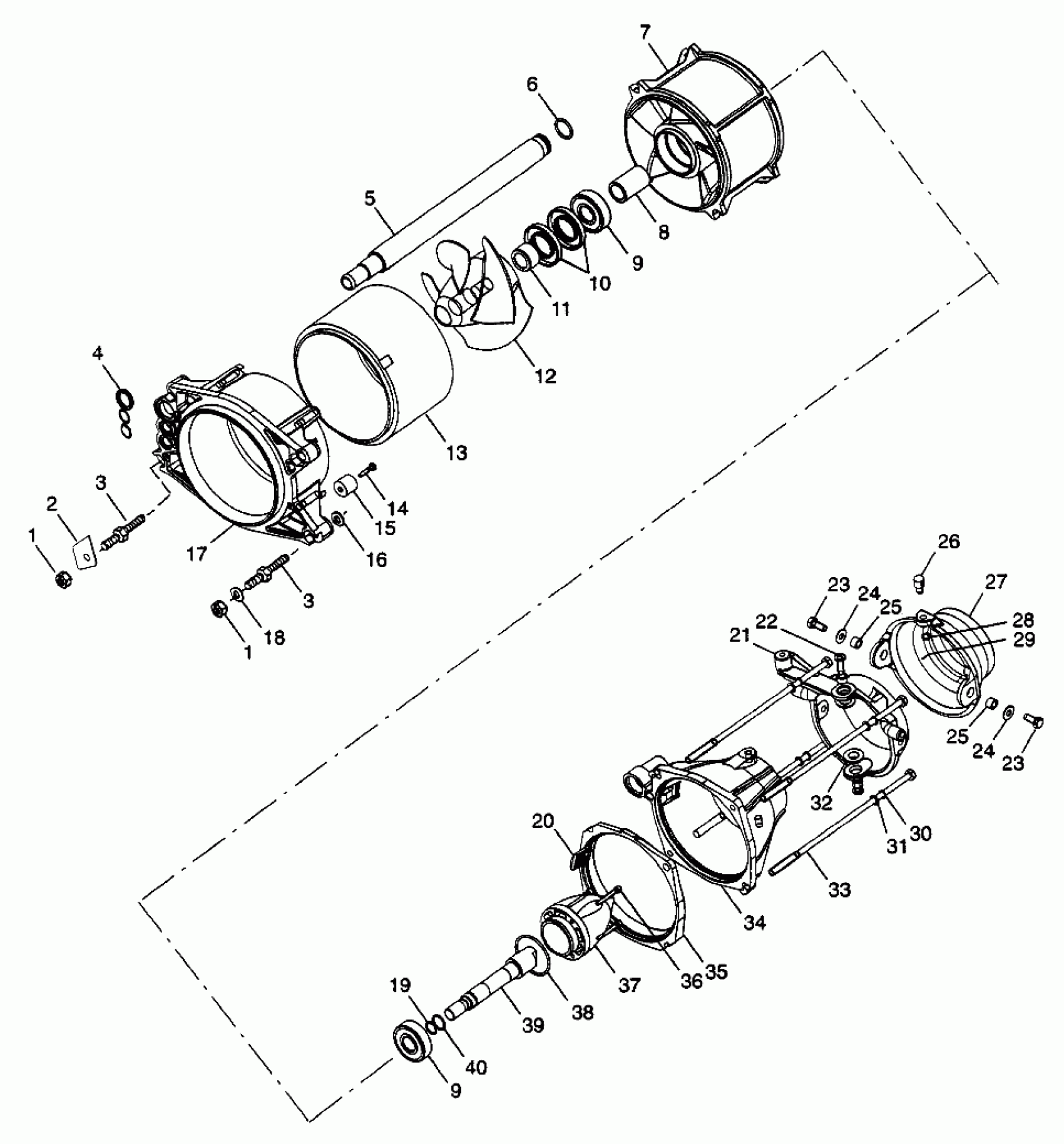

Polaris SL 1050 - B974090 PROPULSION SL 900 B974091 and SL 1050 B974090 (4940974097B003) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

BRKT,STRG.CABLE

5241741

Unavailable

3

STUD,PUMP MTG.

5020842

$11.29

3

STUD,PUMP MTG.

5020842

$11.29

4

SEAL,WATER PIPE

5411107

Unavailable

5

PIPE,WATER,ENG.,RESTRICTED Substituted by 5432269 (SL 1050)

5131545

$30.71

6

O RING,(10)

5410735

$0.79

7

STATOR,PUMP,MACH Substituted by 5130983 (Mach) (SL 900)

5131708

Unavailable

7

STATOR,PUMP,HI-PERF. Substituted by 5130983 (Mach) (SL 1050)

5131726

Unavailable

8

Spacer

5010294

Unavailable

9

Bearing

3514008

Unavailable

9

Bearing

3514008

Unavailable

10

SEAL,BRG,STATOR

3610043

Unavailable

11

Spacer, Impeller

5010295

Unavailable

12

IMPELLER,3-BLADE,17/25,SS,.450 (SL 900)

5131588

$281.80

12

IMPELLER,3 BLADE,6.410 (SL 1050)

5131686

Unavailable

13

EXTENSION,PUMP

5131196

$204.99

14

SCREW(10)

7522019

$0.95

15

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

16

WASHER,PUMPSTUD,SEAL

7555941

$7.14

17

HSG,PUMP,W/O RING,INT STUD

5131573

Unavailable

18

Washer

7555966

$2.62

19

O-RING,(10)

5410817

Unavailable

20

SCREEN,ENG.INLET

5431523

Unavailable

21

NOZZLE,STRG.REVERSE

5130960

Unavailable

22

BOLT, S.S.(10)

7515366

Unavailable

23

BOLT, S.S.(10)

7515361

$2.19

23

BOLT, S.S.(10)

7515361

$2.19

24

WASHER,FLAT,S.S.(10)

7555874

$2.38

24

WASHER,FLAT,S.S.(10)

7555874

$2.38

25

Collar

5130938

Unavailable

25

Collar

5130938

Unavailable

26

SWIVEL,ROD END

5131463

Unavailable

27

NOZZLE,TRIM

5431765

Unavailable

28

WASHER(10)

7555866

Unavailable

29

PIN, COTTER(10)

7661010

$1.19

30

WASHER, LOCK, S.S.(10)

7552610

Unavailable

31

WASHER, FLAT, S.S.,(10)

7555835

$0.69

32

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

33

Bolt

7515389

Unavailable

34

NOZZLE,STAT.,0X4 WEDGE (1050)

5131569

Unavailable

35

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841 (1050)

5630662

Unavailable

36

SCREW(10)

7512064

Unavailable

37

Cone, Pump

5431519

Unavailable

38

O-RING(10)

5410819

$0.79

39

SHAFT, STUB Substituted by 5132674

5020697

$47.62

40

O-RING(10)

5410818

$0.79
