FRONT STORAGE COMPARTMENT SL 900 B974091 and SL 1050 B974090 (4940974097A009)

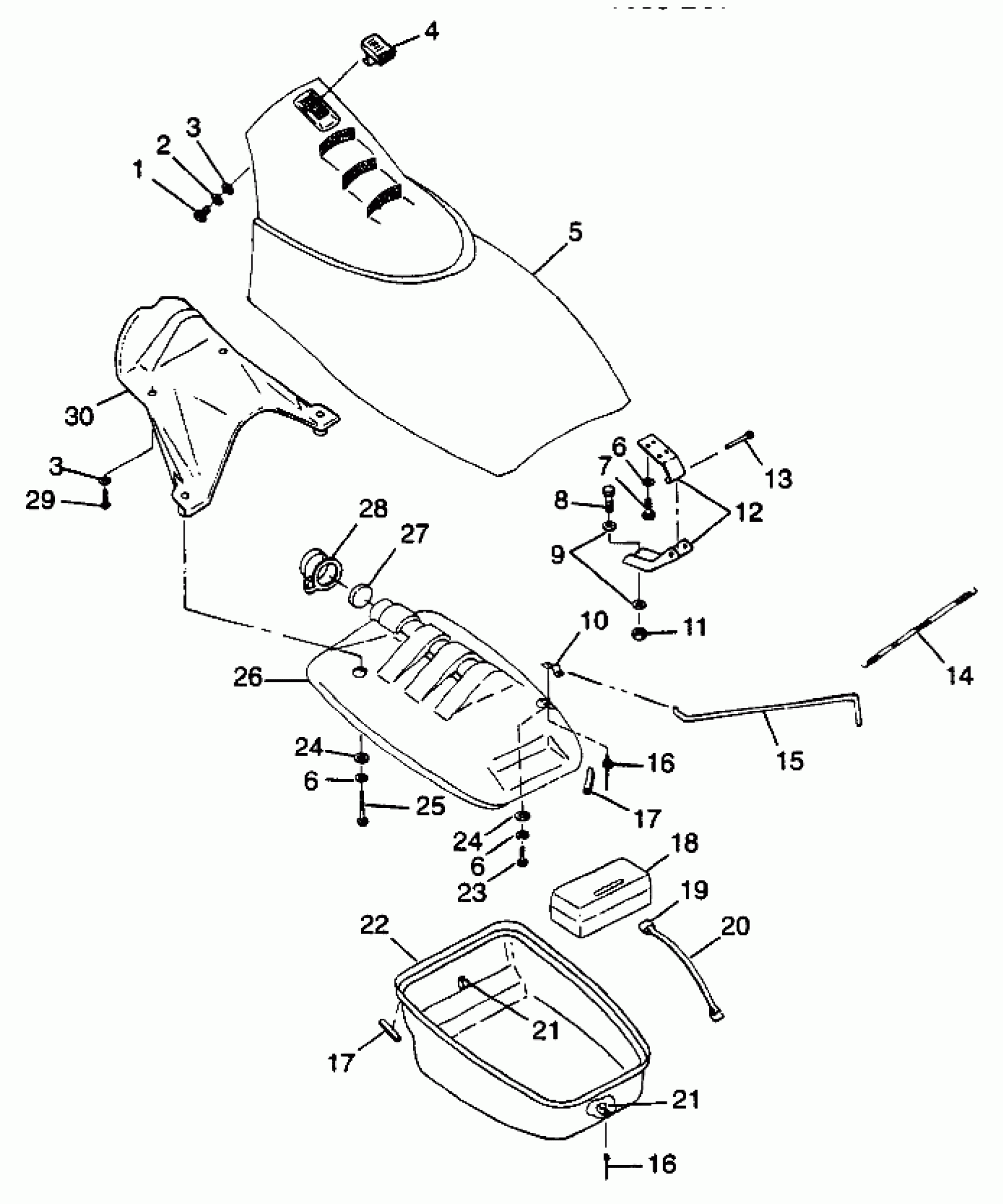

Polaris SL 1050 - B974090 FRONT STORAGE COMPARTMENT SL 900 B974091 and SL 1050 B974090 (4940974097A009) Diagram
#
1
BOLT, SS.(10)
7512045
$4.99
2
WASHER, LOCK(10)
7552615
$4.99
3
WASHER, FLAT, S.S.(10)
7555837
Unavailable
3
WASHER, FLAT, S.S.(10)
7555837
Unavailable
4
LATCH ASM,COMP./DOOR
2653008
Unavailable
5
DOOR-COMPART,SL,BLK MET (SL 1050)
5432544-177
Unavailable
5
DOOR-COMPART,SL,PVM (SL 900)
5432544-242
Unavailable
6
WASHER, LOCK, S.S.(10)
7555838
Unavailable
6
WASHER, LOCK, S.S.(10)
7555838
Unavailable
6
WASHER, LOCK, S.S.(10)
7555838
Unavailable
7
BOLT, S.S.(10)
7515121
Unavailable
8
BOLT, S.S.
7515365
Unavailable
9
WASHER, FLAT, S.S.(10)
7555831
Unavailable
10
RETAINER,DOOR SUPPORT
5222782
Unavailable
11
NUT, HEX, S.S.(10)
7542335
Unavailable
12
HINGE ASM,COMPARTMENT (Incl. 13)
2635012
Unavailable
13
PIN, HINGE Substituted by 2635012
7661629
Unavailable
14
SPRING,DOOR SUPPORT
7042038
Unavailable
15
SUPPORT,PORT DOOR COMP.
5224788
Unavailable
16
RIVET
7621478
Unavailable
16
RIVET
7621478
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
18
BOX, TOOL
5431508
Unavailable
19
HOOK,'D',SST/SS,(10)
5224472
$2.19
20
STRAP,RUBBER
5410853
Unavailable
21
Clip
5240187
Unavailable
21
Clip
5240187
Unavailable
22
BUCKET,STORAGE,FRONT
5432526
Unavailable
23
BOLT(10)
7515127
Unavailable
24
WASHER, FLAT, S.S.(10)
7555839
Unavailable
24
WASHER, FLAT, S.S.(10)
7555839
Unavailable
25
BOLT(10)
7515130
Unavailable
26
LID,STOR.EXTINGUISHER
5432579
Unavailable
27
PAD,FOAM,FIRE EXT.
5810799
Unavailable
28
CAP,FIRE EXT.,YELLOW
5431398-053
Unavailable
29
SCREW(10)
7512049
Unavailable
30
BAFFLE,AIR INTAKE,CUT
5432591
Unavailable
