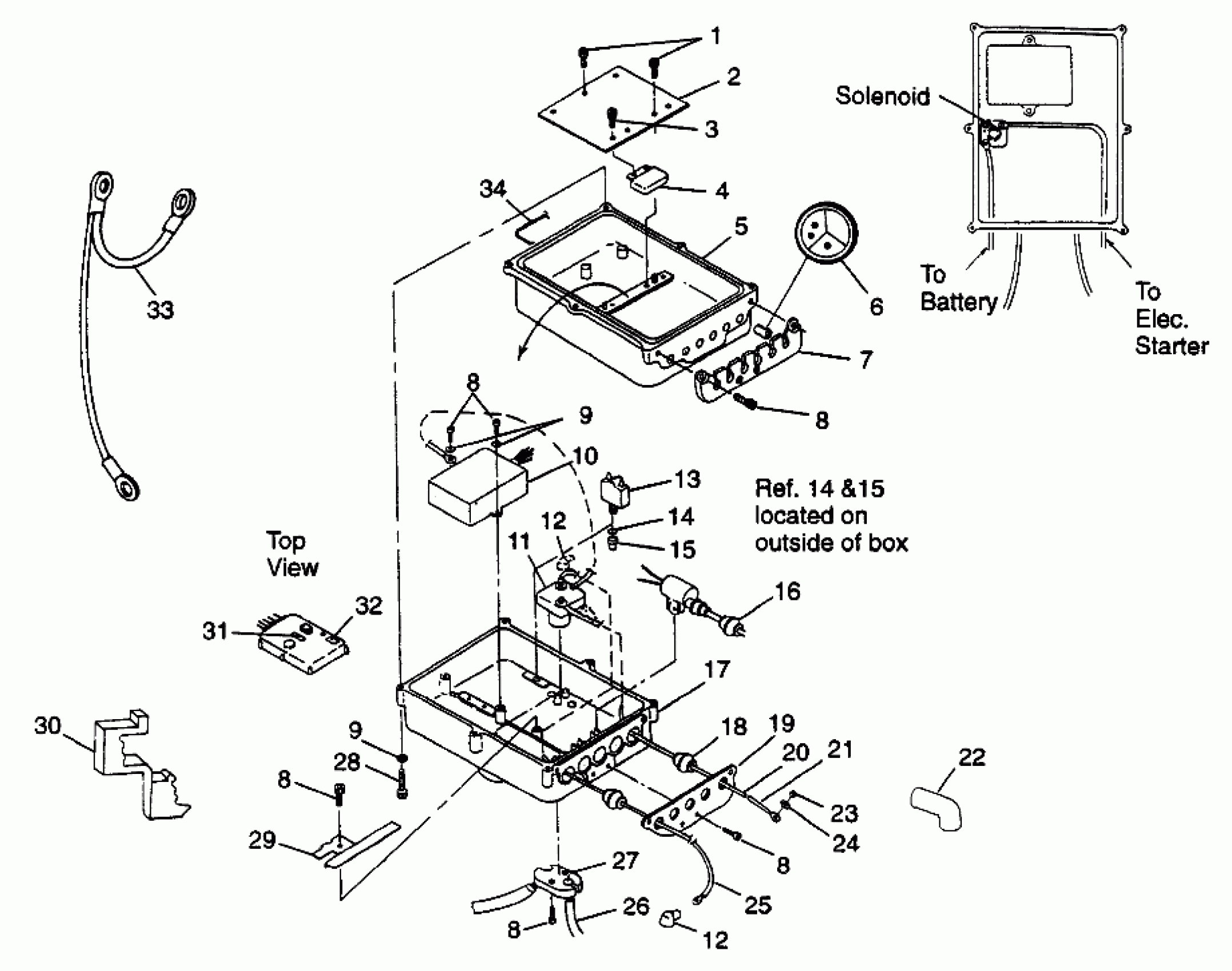

Polaris SL 1050 - B974090 ELECTRICAL BOX SL 900 B974091 and SL 1050 B974090 (4940974097B013) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7512042

Unavailable

2

TERM.BOARD ASM,MFD (SL 900)

2434014

Unavailable

2

BOARD,TERMINAL,MFD,DIODE (SL 1050)

4040080

Unavailable

3

SCREW,S.S.(10)

7512072

$0.40

4

REG./RECT/CUTOFF,LR23 Substituted by 4060192

4060171

Unavailable

5

BOTTOM,ELEC.BOX

5131663

$54.60

6

O-RING(10)

5410818

$0.79

6

GROMMET,SECTION,2-HOLE

5410852

Unavailable

6

GROMMET,SECTION,NO HOLE

5410850

$2.14

6

GROMMET,SECTION,1 HOLE

5410851

Unavailable

7

PLATE,6-HOLE,CAST

5630497

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

9

WASHER(10)

7555836

$3.99

9

WASHER(10)

7555836

$3.99

10

Controller, Ignition (See Pg. A38, Ref. 12)

----

Unavailable

11

Magneto Switch (See Pg. A38, Ref. 14)

----

Unavailable

12

INSULATOR-CABLE

5410346

$7.73

12

INSULATOR-CABLE

5410346

$7.73

13

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

14

O-RING

5410725

$1.03

15

BOOT,THREADED,RED

7080461

$13.99

16

GROMMET, COIL

5410677

Unavailable

17

TOP, ELEC.BOX

5131174

$73.81

18

GROMMET, 16 GA.(10)

5410678

$2.14

19

PLATE, 5-HOLE

5630416

Unavailable

20

CABLE,RED,SOL./START.

4010081

Unavailable

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

22

Cap, Spark Plug (See Pg. A38, Ref. 15)

----

Unavailable

23

NUT, 6 MM.,S.S.(10)

7546705

$4.76

24

WASHER, LOCK(10)

7552613

Unavailable

25

CABLE,RED,BATT/SOL.

4010082

Unavailable

26

HARNESS,WIRE,MFD(SL)

2460518

Unavailable

27

PLATE, 2-HOLE

5630415

$12.30

28

BOLT(10)

7515119

Unavailable

29

BRKT,COIL RETAINER

5241182

$19.68

30

T-CLIP(10)

7080471

$3.57

31

DECAL,WARN,HI.VOLT.

7073713

Unavailable

32

DECAL,ELECT.BOX RESET

7073734

Unavailable

33

HARNESS,GND-CONTROL BOX

2460581

Unavailable

34

O-RING,(ELEC.BOX)

5410912

Unavailable
