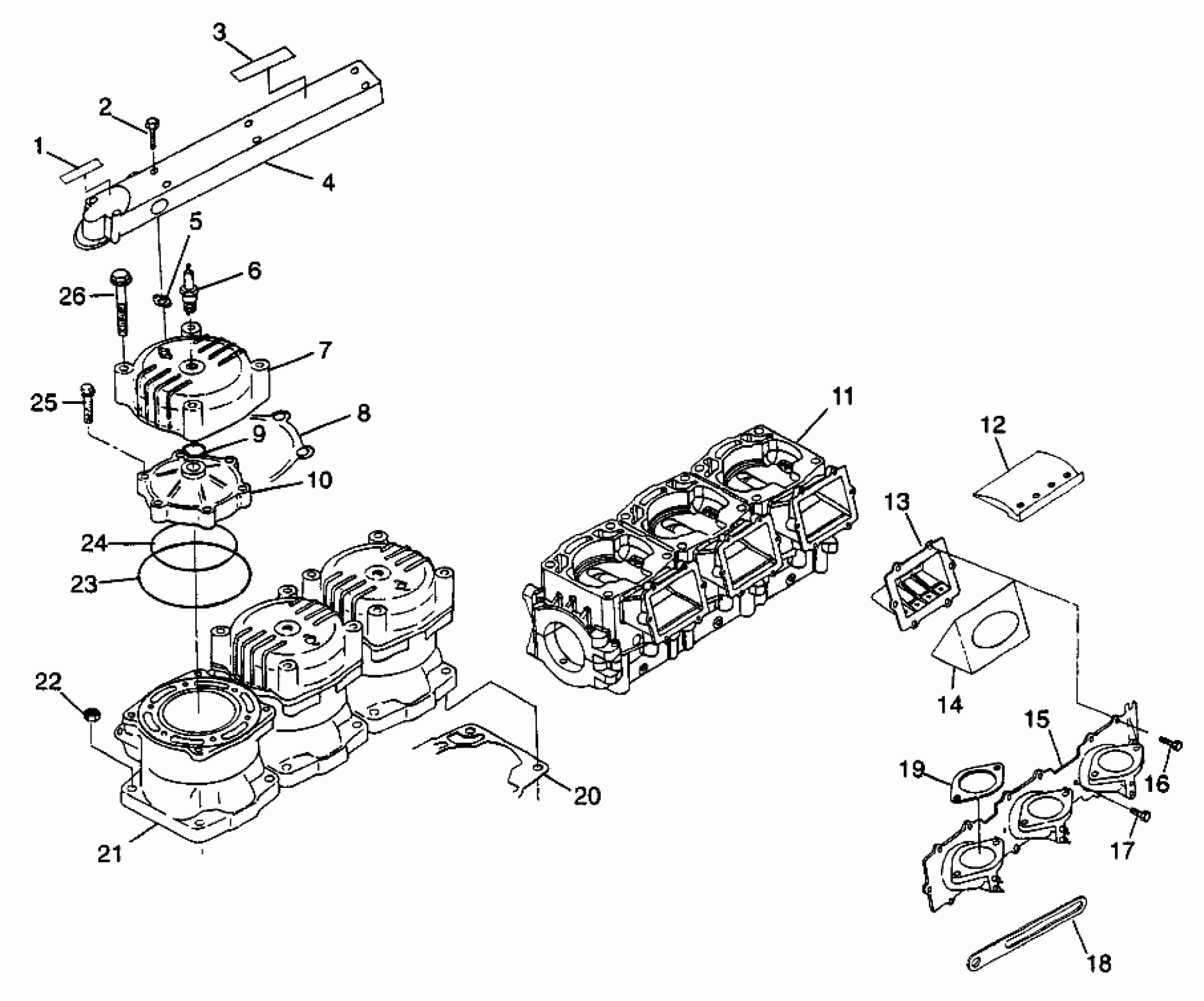

Polaris SL 1050 - B974090 CYLINDER & MANIFOLD SL 900 B974091 and SL 1050 B974090 (4940974097C003) Diagram

#

Description
Price

-

KIT,GASKET,TOP END,1050 TRIPLE (1050) (Incl. 9, 20, 23, 24)

2200825

Unavailable

-

KIT,GASKETSET,(1050 TRPL) [Cannot Purchase as Assembly] (1050) (Incl. 5, 9, 20, 23, 24)

2200814

Unavailable

-

KIT,GASKET,TOP END (SL 900) (Incl. 9, 20, 23, 24)

2200824

$45.38

-

KIT,GASKET,COMPL. (SL 900) 900 Triple (Incl. 5, 9, 20, 23, 24)

2200815

$72.99

1

DECAL,SPARKPLUG REC.

7077026

$2.94

2

BOLT(10)

7516806

Unavailable

3

Decal, Warning

7075383

Unavailable

4

MANIFOLD,WATER-OUT,3CYL,RED (SL 1050)

5630789-093

$87.30

4

MANIFOLD,WATER-OUT,3CYL,RED (SL 900)

5630583-093

Unavailable

5

GASKET,WATER MANIF.

5830061

Unavailable

6

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

7

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

8

RING,HEAD,81MM-SS (SL 1050)

5241944

$63.79

8

RING,HEAD,74.5MM,SS (SL 900)

5242021

$8.98

9

O-RING(10)

5410917

$0.79

10

HEAD,CYL,81MM DIA (1050)

3022025

Unavailable

10

HEAD,CYL,81MM,PWC (1050)

3022050

$29.67

10

HEAD,CYL,(DIA=74.5 MM.) (900)

3022023

$27.92

11

Asm., Crankcase, Triple (See Pg. NO TAG, Ref.NO TAG)

----

Unavailable

12

STUFFER,(900/1050 PWC)

5411252

$7.38

13

REED BLOCK ASM,TRIPLE

1201595

$81.75

14

STUFFER-REED BLOCK

5432162

Unavailable

15

ADAPTOR,CARB,3 CYL.

5630582

$185.99

16

BOLT(10)

7516807

Unavailable

17

BOLT(10)

7516814

$2.38

18

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

Unavailable

19

GASKET,CARB.

5830043

Unavailable

20

GASKET,CYL.BASE

5830123

Unavailable

21

CYLINDER,74.5MM,(PWC) (SL 900)

3021007

Unavailable

21

CYLINDER,81MM,PWC Substituted by 3021018 (SL 1050)

3021009

$549.99

22

NUT(10)

7547013

$1.99

23

O-Ring

5410931

$7.99

24

O-RING (SL 1050)

5410932

$20.22

24

O-RING (SL 900)

5411044

$28.32

25

SCREW,(10) Substituted by 7517352

7517251

$14.29

26

BOLT(10)

7516722

$9.52
