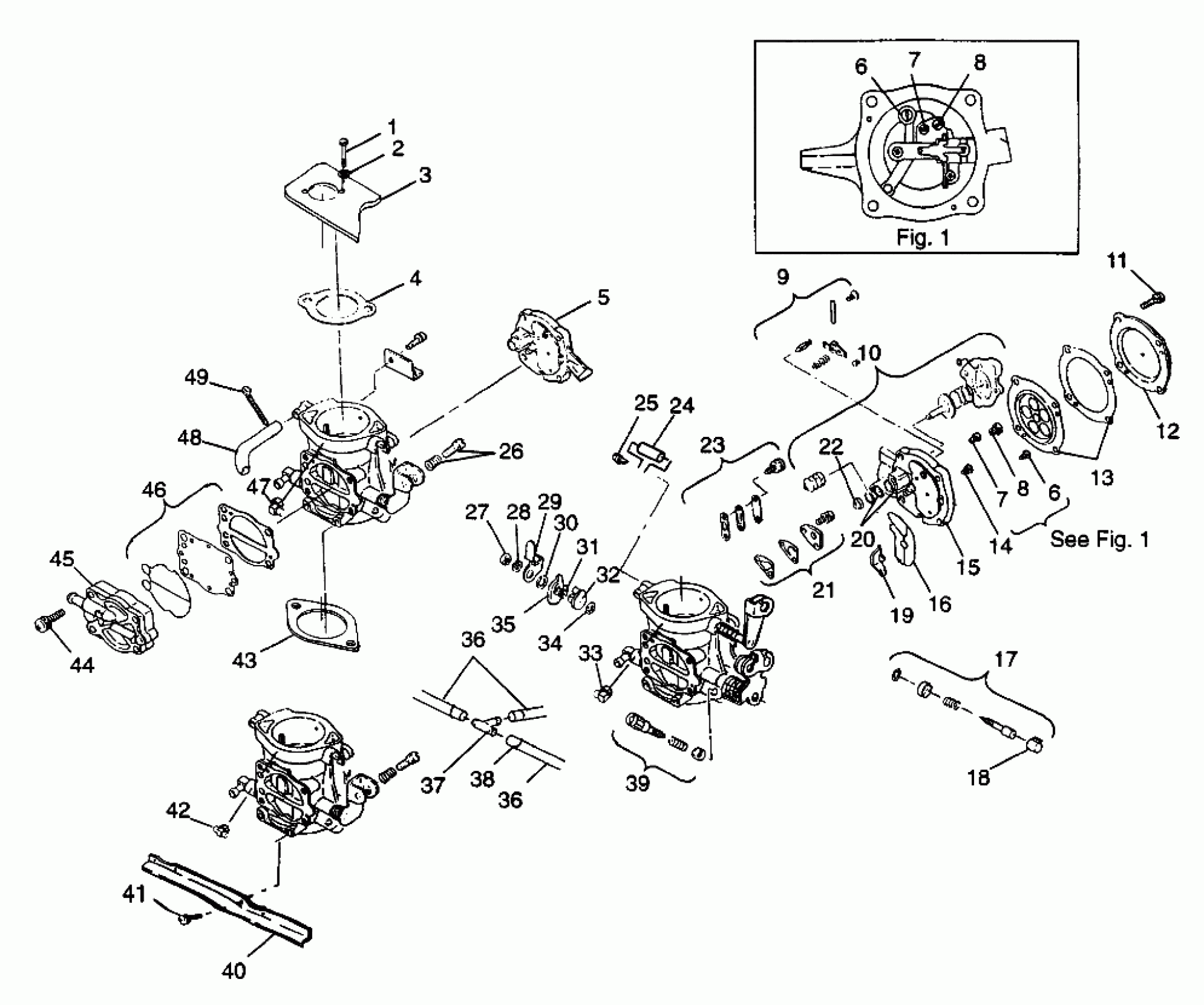

Polaris SL 1050 - B974090 CARBURETOR SL 900 B974091 (4940974097C005) Diagram

#

Description
Price

-

KIT,CARB.REBUILD,PWC (Incl. 4, 9, 13, 43)

2200910

Unavailable

-

CARB,FRONT,KEIHIN Substituted by 1253140

3050170

$353.59

-

CARB,CTR.,KEIHIN Substituted by 1253140

3050169

Unavailable

-

CARB,REAR,KEIHIN Substituted by 1253140

3050168

Unavailable

-

CARBURETOR ASM.

1253140

Unavailable

1

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

2

WASHER(10)

7555836

$3.99

3

BASE,SILENCER,INTAKE,TRIPLE

5630546

$49.75

4

GASKET,CARB.,UPPER

5830062

Unavailable

5

BLOCK,JET,KEIHIN

3050205

Unavailable

6

JET-MAIN,140 KEIHIN (Per Carb)

3050186

$8.98

6

JET-MAIN,135 KEIHIN (Per Carb) (See Main Jet Chart at Right)

3050184

$8.98

6

JET-MAIN,138 KEIHIN (Per Carb)

3050185

$8.11

6

JET-MAIN,140 KEIHIN (Per Carb)

3050186

$8.98

6

JET-MAIN,135 KEIHIN (Per Carb) (See Main Jet Chart at Right)

3050184

$8.98

6

JET-MAIN,138 KEIHIN (Per Carb)

3050185

$8.11

7

JET-PILOT,60 KEIHIN

3050126

Unavailable

7

JET-PILOT,60 KEIHIN

3050126

Unavailable

8

JET-PILOT,65 KEIHIN

3050128

$6.27

8

JET-PILOT,65 KEIHIN

3050128

$6.27

9

KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)

2200733

Unavailable

10

KIT,ACCEL.PUMP

2200732

Unavailable

11

SCREW,JET BLOCK COVER

3050135

Unavailable

12

COVER,JET BLOCK

3050139

$45.24

13

KIT,DIAPHRAGM-JET BLOCK (Per Carb)

2200730

Unavailable

14

Screw, Jet Block

3050137

$3.98

15

BLOCK,JET,KEIHIN (Front)

3050204

Unavailable

16

O-Ring, Jet Block

3050147

Unavailable

17

Collar

3050138

Unavailable

18

KIT,IDLE SCREW,KHN (1 Per Carb)

2200907

$28.79

19

Cap, Limiter

3050140

Unavailable

20

KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)

2200688

$34.21

21

O-RING,(VALVE SEAT)

3050148

Unavailable

22

SCREEN,FUELSTRAINER

3050144

Unavailable

23

KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)

2200685

Unavailable

24

TUBE,RUBBER

3050157

Unavailable

25

JOINT,CONNECTING

3050156

$26.19

26

KIT,SYNCH.SCREW

2200734

Unavailable

27

NUT,THROTTLE SHAFT

3050155

Unavailable

28

Washer, Lock

3050154

Unavailable

29

LEVER,SYNCHRONIZING

3050153

Unavailable

30

WASHER

3050152

Unavailable

31

SPRING, TORSION

3050150

Unavailable

32

COLLAR

3050149

Unavailable

33

NOZZLE,MAG,KEIHIN

3050252

Unavailable

34

E-Clip

3050158

Unavailable

35

CAM.,ACCEL.PUMP

3050207

Unavailable

36

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

36

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

37

FITTING, TEE

7052075

$9.52

38

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

39

KIT,IDLESTOP SCREW

2200731

$27.92

40

PLATE,CON,KEIHIN

3050164

$23.65

41

SCREW,CONNECT.PLATE

3050159

Unavailable

42

NOZZLE,CTR,KEIHIN

3050253

Unavailable

43

GASKET,CARB.

5830043

Unavailable

44

SCREW, FUELPUMP

3050136

Unavailable

45

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

46

KIT,GASKET(FUELPUMP)

2200686

Unavailable

47

NOZZLE,PTO,KEIHIN

3050254

Unavailable

48

Hose, Fuel

3050143

Unavailable

49

CLAMP, HOSE, S.S.(10)

7080476

$6.35
