CARBURETOR SL 1050 B974090 (4940974097C007)

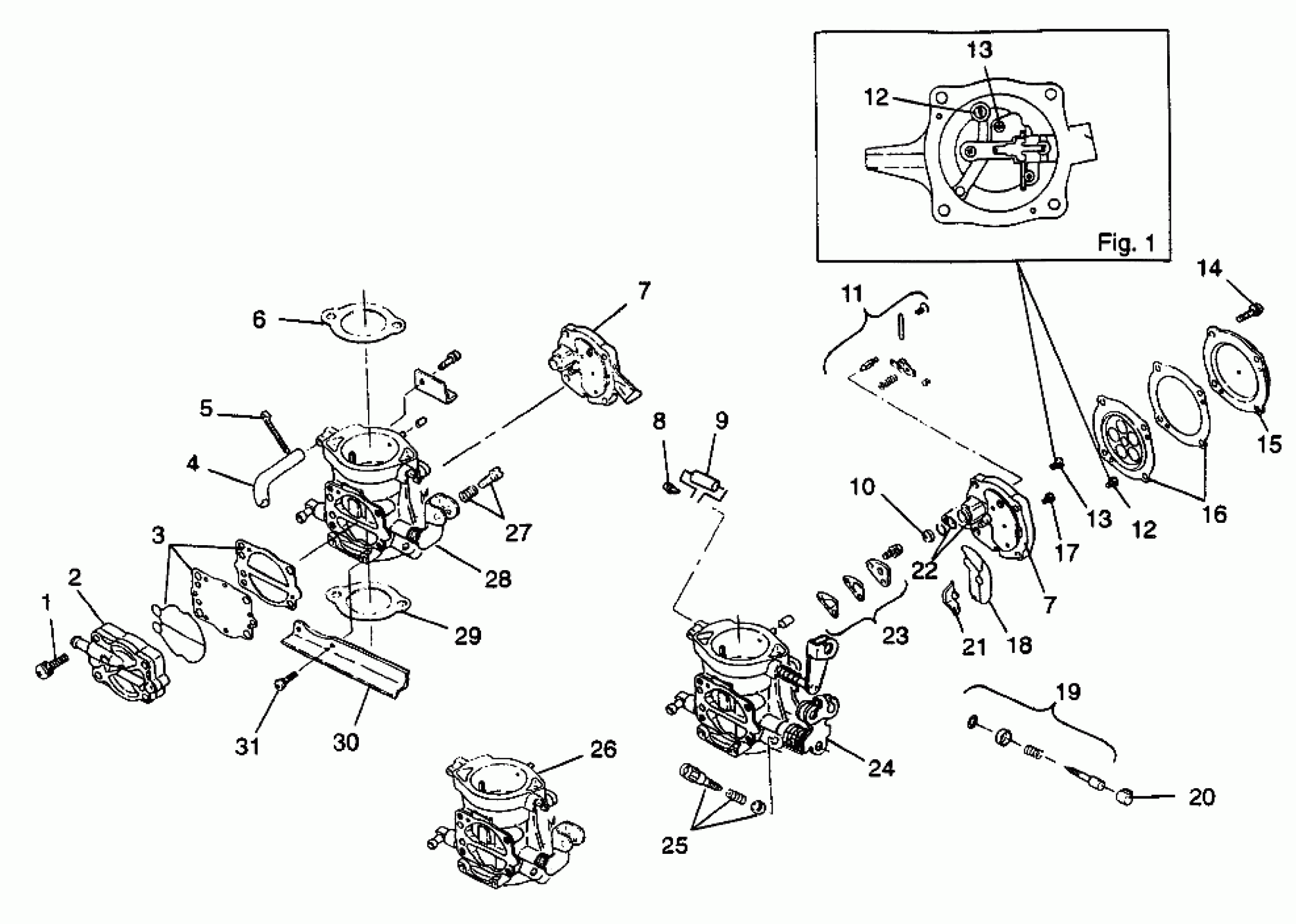

Polaris SL 1050 - B974090 CARBURETOR SL 1050 B974090 (4940974097C007) Diagram
#
-
CARB.ASM,KEIHIN
1253190
Unavailable
1
SCREW, FUELPUMP
3050136
Unavailable
2
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
3
KIT,GASKET(FUELPUMP)
2200686
Unavailable
4
Hose, Fuel
3050143
Unavailable
5
CLAMP, HOSE, S.S.(10)
7080476
$6.39
6
GASKET,CARB.,UPPER
5830062
Unavailable
7
BLOCK,JET,KEIHIN
3050206
Unavailable
7
BLOCK,JET,KEIHIN
3050206
Unavailable
8
JOINT,CONNECTING
3050156
Unavailable
9
TUBE,RUBBER
3050157
Unavailable
10
SCREEN,FUELSTRAINER
3050144
Unavailable
11
KIT,NDLE VLVE,49GM,97SL1050 (1 Per Carb)
2201124
Unavailable
12
JET-MAIN,158 KEIHIN
3050193
Unavailable
12
JET-MAIN,152 KEIHIN
3050191
Unavailable
12
JET-MAIN,158 KEIHIN
3050193
Unavailable
12
JET-MAIN,152 KEIHIN
3050191
Unavailable
13
JET-PILOT,75 KEIHIN (Per Carb)
3050132
Unavailable
13
JET-PILOT,75 KEIHIN (Per Carb)
3050132
Unavailable
14
SCREW,JET BLOCK COVER
3050135
Unavailable
15
COVER,JET BLOCK
3050139
Unavailable
16
KIT,DIAPHRAGM-JET BLOCK (Per Carb)
2200730
Unavailable
17
SCREW, JET BLOCK (Per Carb)
3050137
Unavailable
18
O-Ring, Jet Block
3050147
Unavailable
19
KIT,IDLESCREW,(KEIHIN) (1 Per Carb)
2200689
Unavailable
20
Cap, Limiter
3050140
Unavailable
21
Collar
3050138
Unavailable
22
O-RING,(VALVE SEAT)
3050148
Unavailable
23
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
24
CARBURETOR,FRT,KEIHIN [No Longer Available]
3050249
Unavailable
25
KIT,IDLESTOP SCREW
2200731
Unavailable
26
CARBURETOR,CTR,KEIHIN [No Longer Available]
3050250
Unavailable
27
KIT,SYNCH.SCREW
2200734
Unavailable
28
CARBURETOR,REAR,KEIHIN [No Longer Available]
3050251
Unavailable
29
GASKET,CARB.
5830043
Unavailable
30
PLATE,CON,KEIHIN
3050164
Unavailable
31
SCREW,CONNECT.PLATE
3050159
Unavailable
