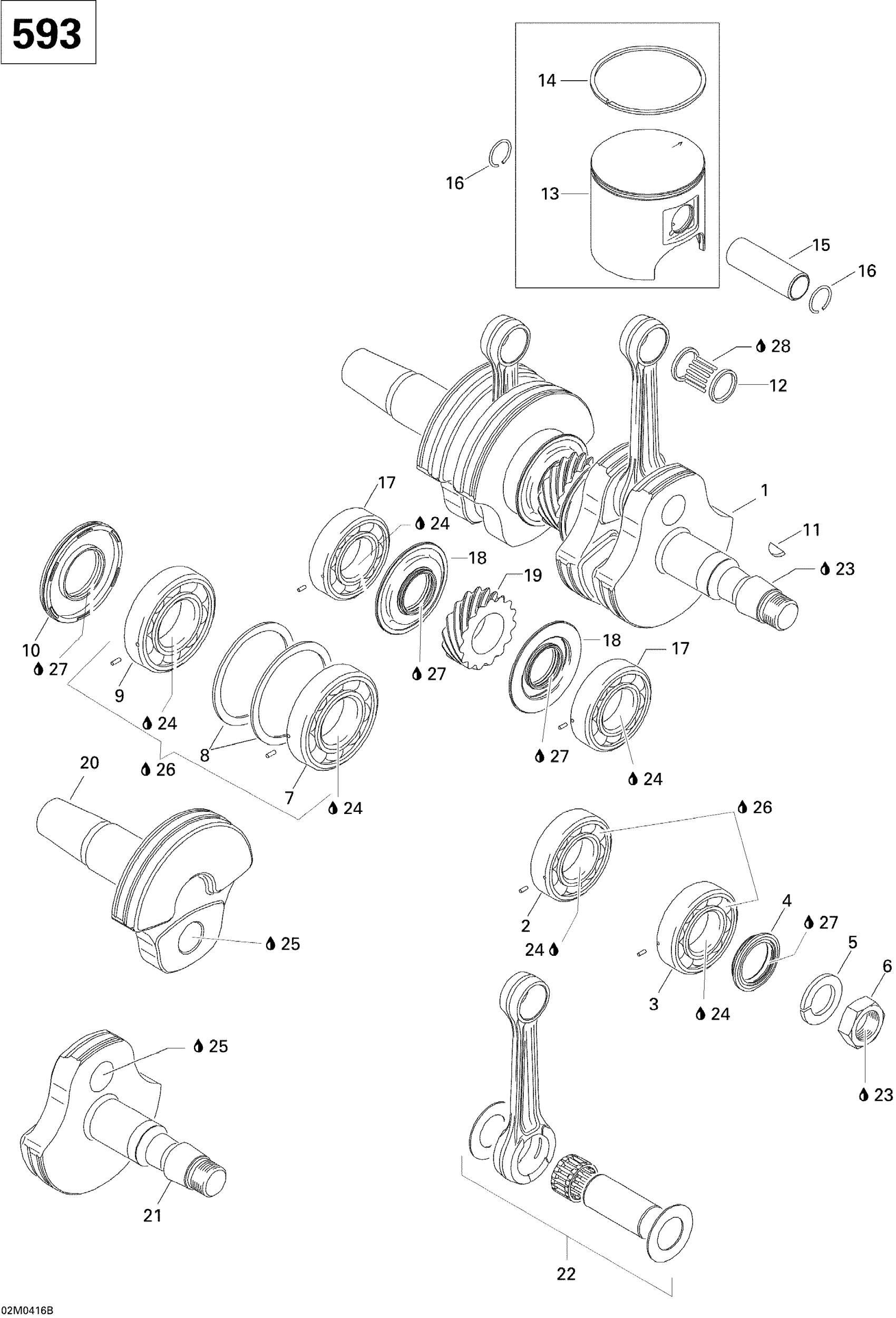

Ski-Doo Skandic WTLC 600, 2004 01- Crankshaft And Pistons (593) Diagram

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

Ball Bearing

420832596

$97.49

Ball Bearing 6206

420832590

$48.49

Oil Seal

420931795

$17.63

Lock Washer, 22 mm

420945759

$1.90

Hex. Nut, M22 X 1.5

420842239

$17.53

Ball Bearing 6207 | With drive pin

420832575

$52.99

Retaining Disk

420927710

$7.41

Ball Bearing Sealed, 6207

420832673

$101.49

Oil Seal This part replaces 290831952.

420831952

$18.01

Woodruff Key

420246015

$3.17

Needle Bearing

420832445

$27.49

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

Semi-Trapez Ring, Standard

420815155

$51.99

Semi-Trapez Ring, 1st

420815156

$51.99

Piston Pin

420916412

$30.99

Piston Circlip

420845106

$3.93

Ball Bearing 6206

420832590

$48.49

Oil Seal | Included in gasket kit

420931940

$30.49

Central Gear, 15 Teeth

420834350

$104.99

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

Crankshaft This part replaces 420818693.

420818697

$255.49

Rod Repair Kit, MAG Side

420890973

$313.99

Rod Repair Kit, PTO Side

420890974

$313.99

Loctite 243, 10 ml

293800060

$21.49

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

Sealant Loctite 648

219703000

$45.99

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

Petamo Grease, GHY133N, 400 g

420899271

$67.99

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
