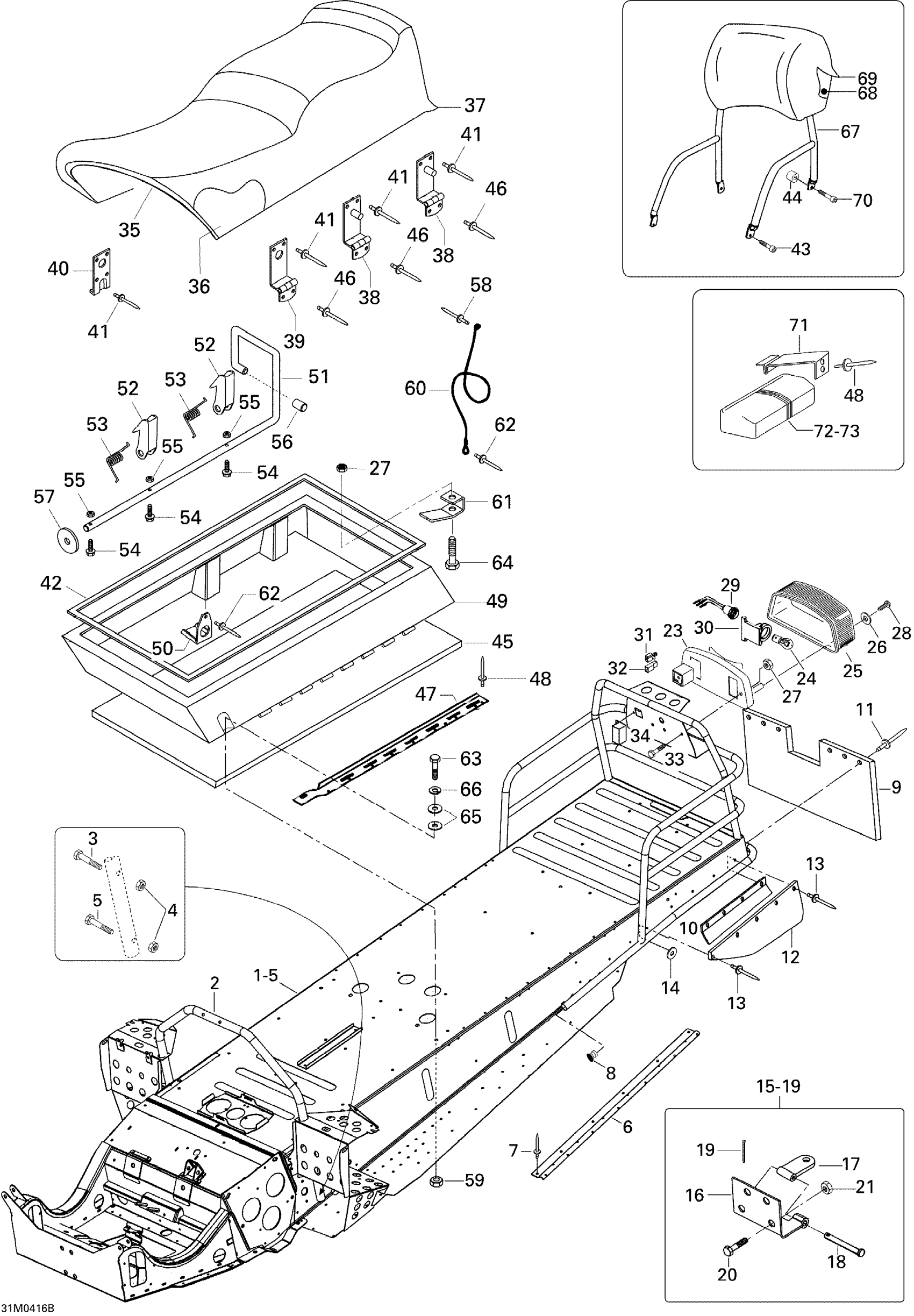

Ski-Doo Skandic WT/SWT 550F , 2004 09- Frame And Seat (2 Up) Diagram

#

Description
Price

1

Frame Ass'y | WT 550, Includes 1 to 5

605149610

Unavailable

1

Frame Ass'y | WTLC Includes Items 1 to 5

605149608

Unavailable

2

HANDLE SUPPORT - Call your local BRP dealership

605150258

Unavailable

3

Hex. Screw M6 X 30

207063044

$1.26

4

Hex. Nut M6

232061414

$0.53

5

Hex. Screw M6 X 40

207064044

$1.48

6

ANTISLIPERRY RUNNING BAND - Call your local BRP dealership

605348881

Unavailable

7

Rivet

M36010

Unavailable

8

PLUG - Call your local BRP dealership

M28136

Unavailable

9

Snow guard This part replaces M538629.

538629

$95.99

10

Support

M5340532

Unavailable

11

Black, Rivet

M36036

$1.69

12

Side Snowguard This part replaces M5142828.

5142828

$30.49

13

RIVET - Call your local BRP dealership

M36097

Unavailable

14

Washer

20037

$2.11

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

17

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

18

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

19

Cotter Pin

41031

$7.65

20

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Light Housing Ass.

511000007

Unavailable

24

Bulb

520000758

$9.10

25

Lens

414513700

$28.99

26

Washer - Call your local BRP dealership

414516400

Unavailable

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

29

Rubber Damper

414979411

Unavailable

30

Socket

515175650

Unavailable

31

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

32

Female Terminal Housing, 1 Circuit

409010400

$7.62

33

Hex. Screw M6 X 30

207063044

$1.26

34

Adaptor

M5345713

Unavailable

35

Sub Seat

M519394

Unavailable

36

Foam Seat

605148623

Unavailable

37

COVER - Call your local BRP dealership

605153063

Unavailable

38

HINGE - Call your local BRP dealership

M549874

Unavailable

39

HINGE - Call your local BRP dealership

M5440581

Unavailable

40

Lock Plate

M549732

Unavailable

41

Rivet

M36071

Unavailable

42

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

43

SCREW-SOCKET - Call your local BRP dealership

M40388

Unavailable

44

Spacer

M5440665

Unavailable

45

Foam | SUV 550

M5344621

Unavailable

45

Foam | SUV 600

M5346079

Unavailable

46

Rivet

M36489

Unavailable

47

RH Support

M5144029

Unavailable

47

LH Support

M5144028

Unavailable

47

Rivet

36108

$1.90

48

Welded Seat Base Weld

M5142066

Unavailable

49

Support

M5443661

Unavailable

50

Pivot Pin

M5344987

Unavailable

51

Lock Tongue

M5443664

Unavailable

52

SPRING - Call your local BRP dealership

M5444439

Unavailable

53

Screw M4 X 16

M40144

Unavailable

54

Elastic Stop Nut M4

232541414

$0.58

55

Cap

M28019

Unavailable

57

Flat Washer 8 mm

234081410

$0.83

58

Rivet

36108

$1.90

59

NUT M6 - Call your local BRP dealership

M33066

Unavailable

60

Seat Retainer Cable

293750070

$12.99

60

Retainer Cable | SUV 600

M5447746

Unavailable

61

Keeper Cable | SUV 550

M5444464

Unavailable

62

Rivet This part replaces M36009.

36009

$1.15

63

Socket Head Screw M6 X 20

M40052

Unavailable

64

Screw M6 X 30 | SUV 550

M40149

Unavailable

65

Flat Washer 6 mm

234062410

$0.77

66

Lock Washer M6, Black

234161471

$0.53

67

Backrest

M5245664

Unavailable

68

Backrest Foam

M539399

Unavailable

69

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

70

Allen Screw

M40389

Unavailable

71

SPRING-HOLDER - Call your local BRP dealership

M5344443

Unavailable

72

TOOL KIT - Call your local BRP dealership

529035500

Unavailable

73

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
